J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905- )

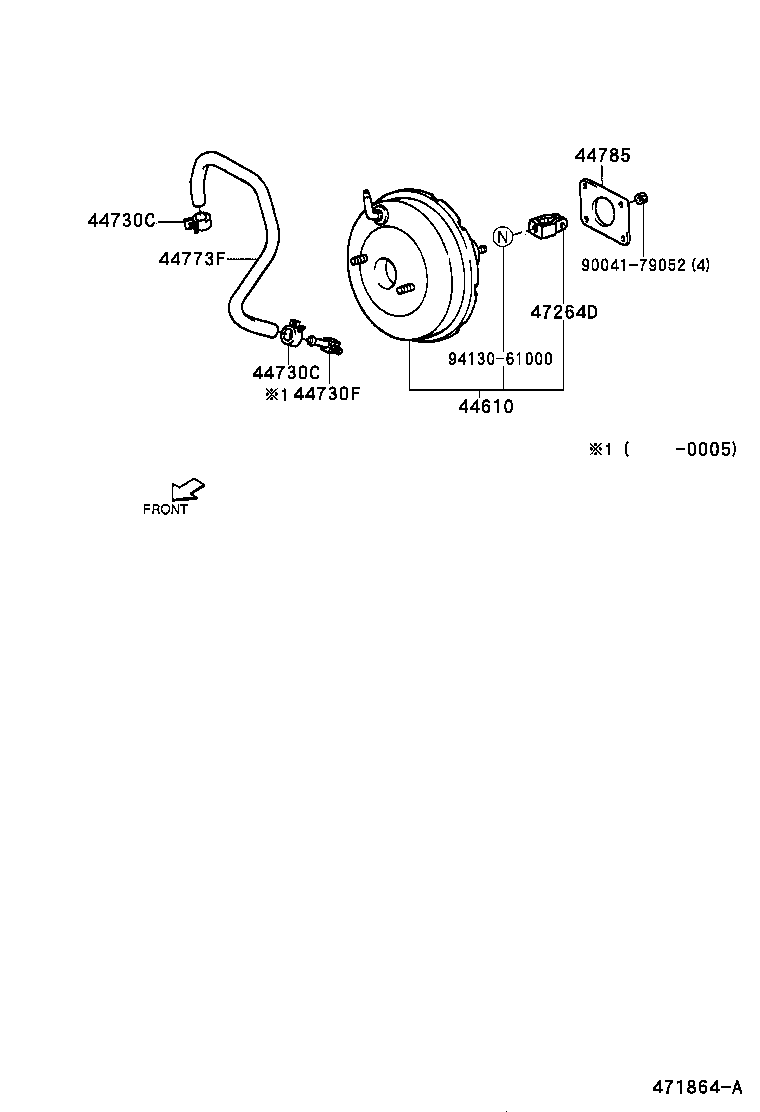

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-87401 |
J10#,122 |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90044-67246 |
J10#,122 |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90044-67246 |
J10#,122 |
4 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 44678-87201 |
J100 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44750-87401 |
J100 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 47278-87703 |
J10#,122 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-87401 |
J10#,122 |
1 | ||
| Common parts | ||||
| 90041-79052 | ||||
| 94130-61000 | ||||
