J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905- )

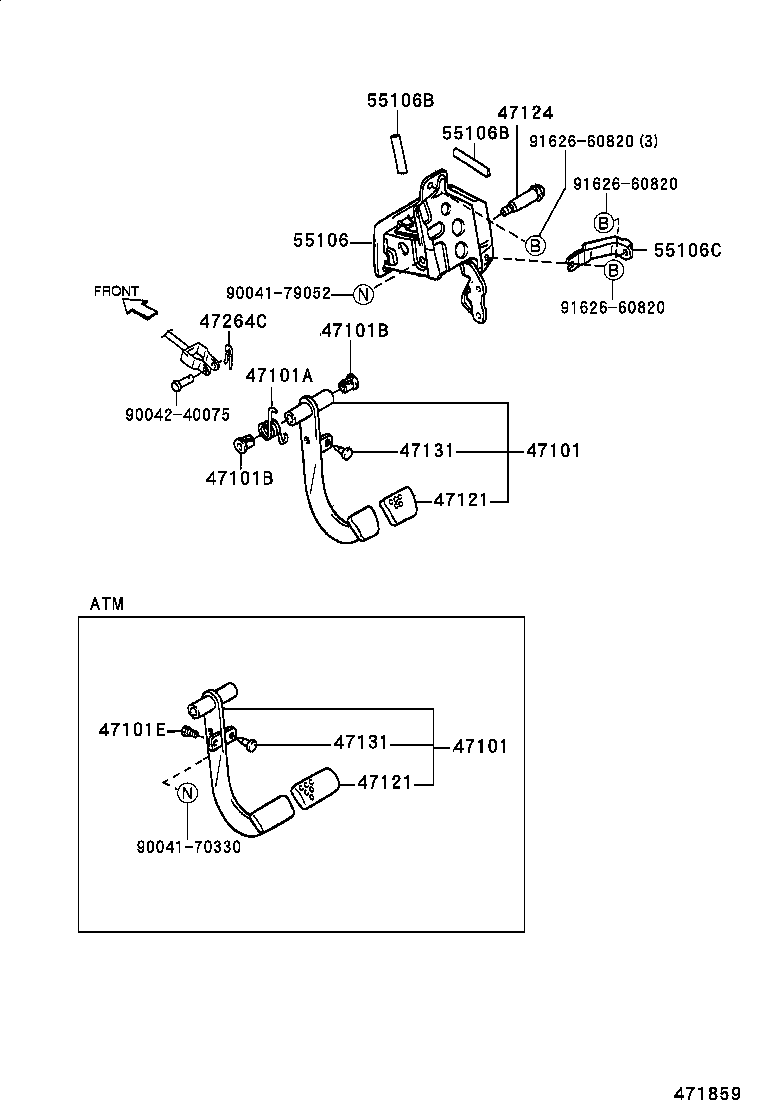

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47110-87402 |
J10#,122..4AT |
1 | ||
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47110-87402 |
J10#,122..4AT |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 47648-87403 |
J10#,122..4AT |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90043-86070 |
J10#,122 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90043-86070 |
J10#,122 |
2 | ||
| 47101E - STOPPER, SHIFT LOCK | ||||
| 31322-87403 |
J10#,122..4AT |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-87701 |
J10#,122..4AT |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-87701 |
J10#,122..4AT |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 47124-87401 |
J10#,122 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90045-40158 |
J10#,122 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90045-40158 |
J10#,122 |
1 | ||
| 47264C - CLIP(FOR PUSH ROD CLEVIS PIN) | ||||
| 90044-68147 |
J100 |
1 | ||
| 90044-68076 |
J100 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-87402 |
J100..4AT |
1 | ||
| 55106-87410 |
J10#,122..4AT |
1 | ||
| 55106B - PROTECTOR, BRAKE PEDAL SUPPORT EDGE | ||||
| 55358-87711 |
J10#,122 |
2 | ||
| 55106B - PROTECTOR, BRAKE PEDAL SUPPORT EDGE | ||||
| 55358-87711 |
J10#,122 |
2 | ||
| 55106C - STAY, BREKE PEDAL BRACKET | ||||
| 55155-87401 |
J100 |
1 | ||
| 55155-87403 |
J10#,122 |
1 | ||
| Common parts | ||||
| 90041-70330 | ||||
| 90041-79052 | ||||
| 90042-40075 | ||||
| 91626-60820 | ||||
