J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )

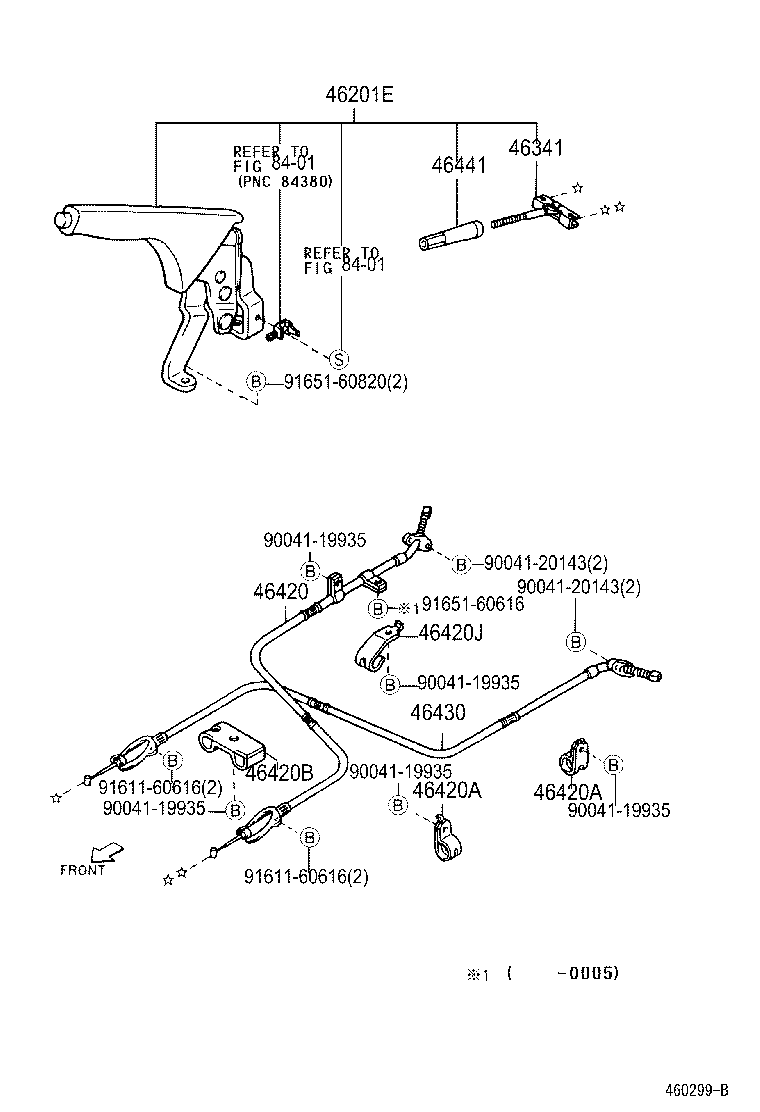

Click highlighted areas on diagram

diagram 46201E 46341 46420 46420A 46420A 46420B 46420J 46430 46441 8401 8401 9004119935 9004119935 9004119935 9004119935 9004119935 9004120143 9004120143 9161160616 9161160616 9165160616 9165160820
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46210-8771213

J100

GRAY,TRIMS

 1
46341 - EQUALIZER, PARKING BRAKE
46302-87705

J10#,122

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-87403

J100

 1
46420-87402

J100

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90044-61728

J10#,122

 2
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90044-61728

J10#,122

 2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90044-61801

J10#,122

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
46467-87401

J10#,122

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-87401

J100

 1
46430-87402

J100

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-87701

J10#,122

 1
Common parts
90041-19935
90041-20143
91611-60616
91651-60616
91651-60820
Linked diagrams
8401
