J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0005)

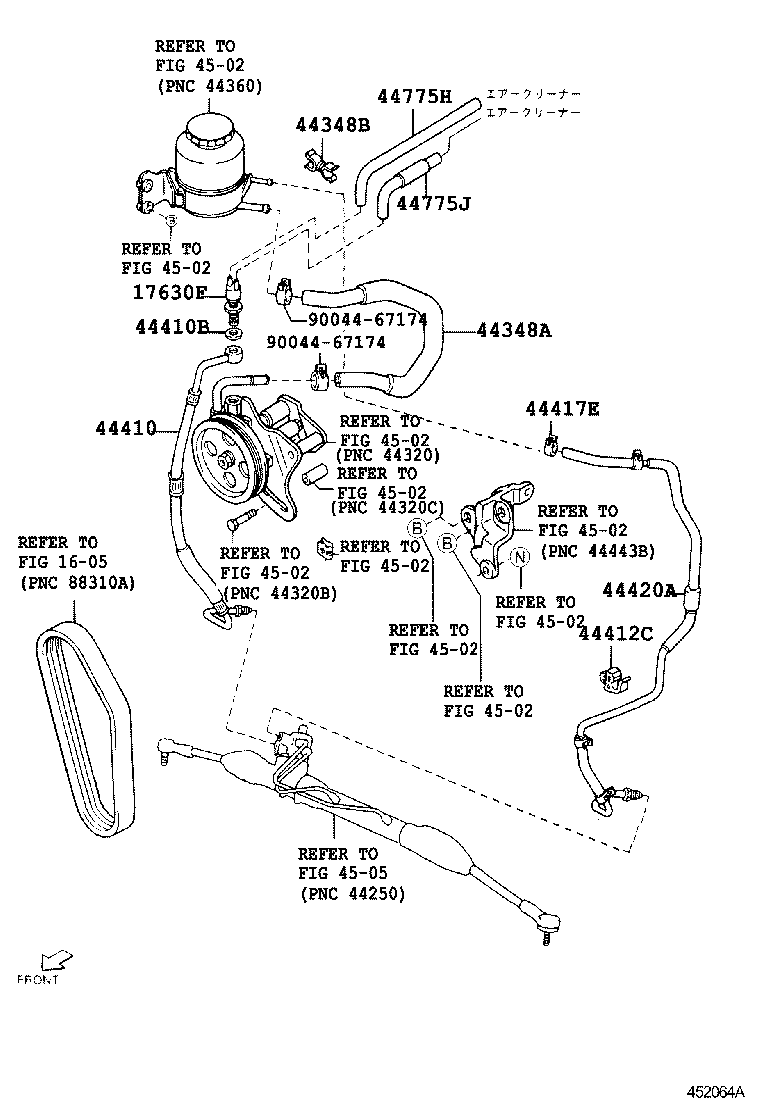

Click highlighted areas on diagram

diagram 1605 17630F 44348A 44348B 44410 44410B 44412C 44417E 44420A 44775H 44775J 4502 4502 4502 4502 4502 4502 4502 4502 4502 4502 4505 9004467174 9004467174
Part # Description Qty Price
17630F - VALVE ASSY, AIR CONTROL
44545-87403

HCEJ..J100

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-87403

J100

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
88718-87406

J100

 1
44410 - TUBE ASSY, PRESSURE FEED
44411-87401

J100

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90044-30305

J10#,122

 1
44412C - CLAMP(FOR RETURN HOSE)
44493-87403

J10#,122

 1
44417E - CLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE)
90044-67236

J10#,122

 1
44420A - TUBE ASSY, RETURN
44420-87401

J10#,122

 1
44775H - HOSE, AIR CLEANER TO SOLENOID, NO.1
44775-87401

J100

 1
44775J - HOSE, AIR CLEANER TO SOLENOID, NO.2
44775-87402

J100

 1
Common parts
90044-67174
Linked diagrams
1605
4502
4505
