J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905-0005)

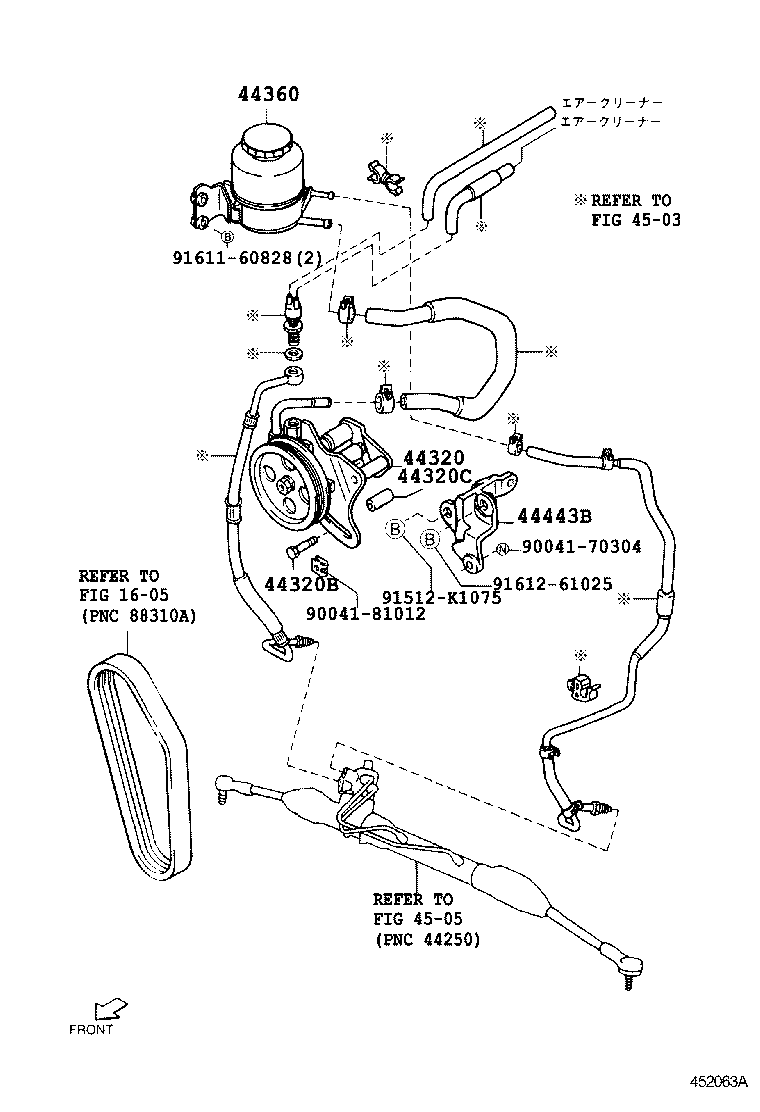

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44320 - PUMP ASSY, VANE | ||||
| 44310-87401 |
J100 |
1 | ||
| 44320B - BOLT(FOR VANE PUMP SETTING) | ||||
| 44312-87401 |
J100 |
1 | ||
| 44320C - COLLAR(FOR VANE PUMP SETTING BOLT) | ||||
| 44183-87401 |
J100 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-87401 |
J10#,122 |
1 | ||
| 44443B - BRACKET, VANE PUMP | ||||
| 44443-87401 |
J100 |
1 | ||
| Common parts | ||||
| 90041-70304 | ||||
| 90041-81012 | ||||
| 91512-K1075 | ||||
| 91611-60828 | ||||
| 91612-61025 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 4503 | ||||
| 4505 | ||||
