J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )J10#

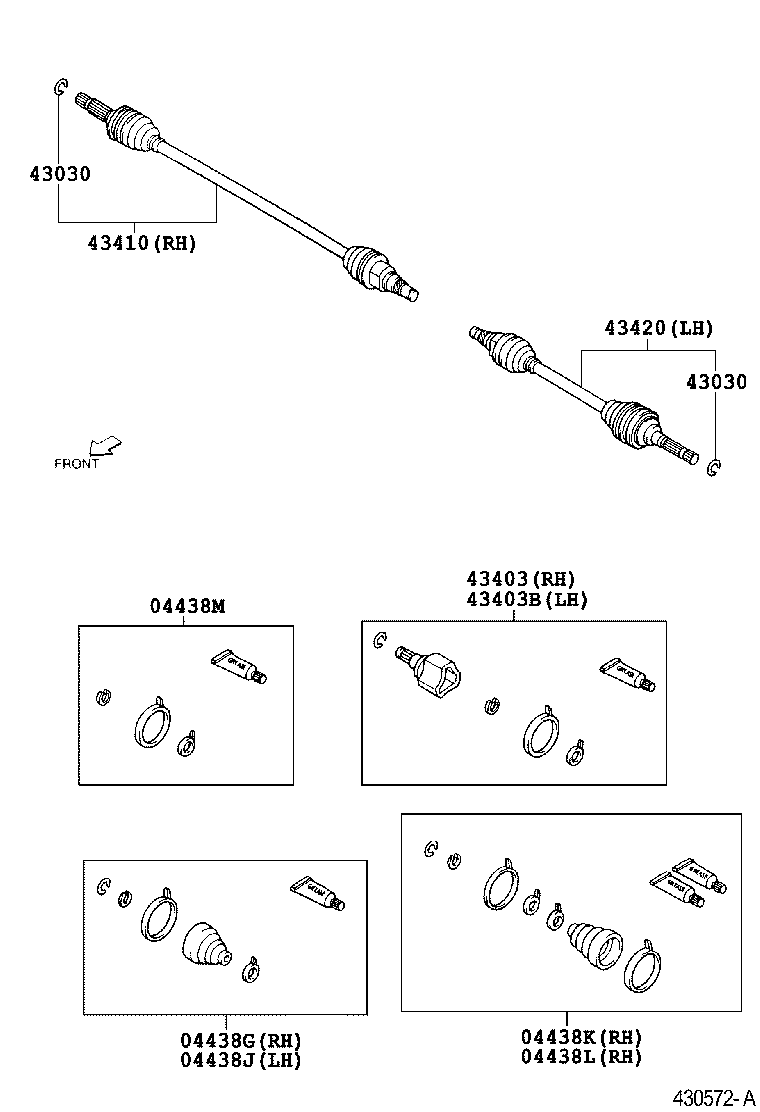

Click highlighted areas on diagram

diagram 04438G 04438J 04438K 04438L 04438M 43030 43030 43403 43403B 43410 43420
Part # Description Qty Price
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-87221

J10#..EFI

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-87221

J10#..EFI

 1
04438K - BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH
04438-87401

J10#..EFI

 1
04438L - BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, LH
04438-87401

J10#..EFI

 1
04438M - CLAMP KIT, FRONT DRIVE SHAFT
04438-87222

J10#..EFI

 2
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
90045-20108

J10#

 2
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
90045-20108

J10#

 2
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43404-87403

J100

 1
43403B - JOINT SET, FRONT AXLE INBOARD, LH
43404-87403

J100

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-87406

J10#..EFI

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-87406

J10#..EFI

 1
