J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )J10#

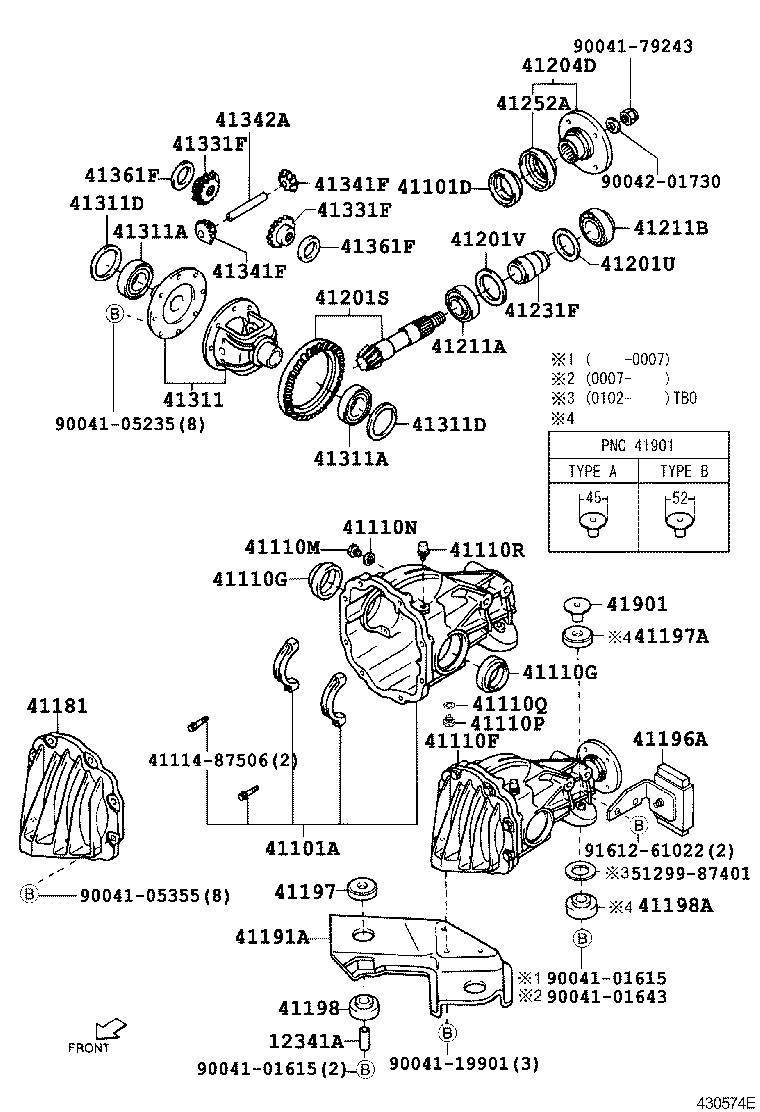

Click highlighted areas on diagram

diagram 12341A 41101A 41101D 41110F 41110G 41110G 41110M 41110N 41110P 41110Q 41110R 4111487506 41181 41191A 41196A 41197 41197A 41198 41198A 41201S 41201U 41201V 41204D 41211A 41211B 41231F 41252A 41311 41311A 41311A 41311D 41311D 41331F 41331F 41341F 41341F 41342A 41361F 41361F 41901 5129987401 9004101615 9004101615 9004101643 9004105235 9004105355 9004119901 9004179243 9004201730 9161261022
Part # Description Qty Price
12341A - SPACER, FRONT DIFFERENTIAL MOUNTING
12341-87501

K3V#,HCEJ..J10#

 2
41101A - CARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41101-87401

J10#..EFI

 1
41101D - SEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
90043-11311

J10#

 1
41110F - CARRIER ASSY, DIFFERENTIAL, FRONT
41120-87403

J100..4AT

 1
41110G - SEAL, OIL (FOR DIFFERENTIAL SIDE)
90043-11319

J10#

 2
41110G - SEAL, OIL (FOR DIFFERENTIAL SIDE)
90043-11319

J10#

 2
41110M - PLUG, FRONT DIFFERENTIAL FILLER
90043-41035

J10#

 1
41110N - GASKET, FRONT DIFFERENTIAL FILLER PLUG
90044-30178

J10#

 1
41110P - PLUG, FRONT DIFFERENTIAL DRAIN
90043-41035

J10#

 1
41110Q - GASKET, FRONT DIFFERENTIAL DRAIN PLUG
90044-30178

J10#

 1
41110R - PLUG, BREATHER (FOR FRONT DIFFERENTIAL)
90049-15026

J10#

 1
41181 - COVER, FRONT DIFFERENTIAL CARRIER
43134-87401

J100

 1
41191A - BRACKET, FRONT DIFFERENTIAL CARRIER SUPPORT
41191-87401

J10#..EFI

 1
41197 - INSULATOR, FRONT DIFFERENTIAL MOUNTING UPPER, NO.1
41197-87402

J10#

 2
41197A - INSULATOR, FRONT DIFFERENTIAL MOUNTING UPPER, NO.2
41197-87403

J10#

PNC 41901 = TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
41198 - INSULATOR, FRONT DIFFERENTIAL MOUNTING LOWER, NO.1
41198-87402

J10#

 2
41198A - INSULATOR, FRONT DIFFERENTIAL MOUNTING LOWER, NO.2
41198-87403

J10#

PNC 41901 = TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
41201S - FINAL GEAR KIT, DIFFERENTIAL, FRONT
41201-87401

J100..4AT

 1
41201U - SHIM (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST)
90045-64006

J10#

厚さ=0.40

 1
90045-64007

J10#

厚さ=0.50

 1
90045-64004

J10#

厚さ=0.25

 1
90045-64005

J10#

厚さ=0.30

 1
41201V - SHIM (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST)
90045-64320

J10#

厚さ=0.25

 1
90045-64319

J10#

厚さ=0.20

 1
90045-64318

J10#

厚さ=0.15

 1
90045-64321

J10#

厚さ=0.5

 1
41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204-87514

J10#

 1
41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
90043-66036

J10#..EFI

NSK

 1
90043-66037

J10#..EFI

KOYO

 1
41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
90043-66069

J10#..EFI

 1
41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41231-87401

J10#

 1
41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41252-87504

J10#

 1
41311 - CASE, FRONT DIFFERENTIAL
41311-97501

J10#..EFI

 1
41311A - BEARING (FOR FRONT DIFFERENTIAL CASE)
90043-63228

J10#

 2
41311A - BEARING (FOR FRONT DIFFERENTIAL CASE)
90043-63228

J10#

 2
41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
90045-64501

J10#

厚さ=0.20

 1
90045-64502

J10#

厚さ=0.25

 1
90045-64503

J10#

厚さ=0.50

 1
90045-64500

J10#

厚さ=0.15

 1
41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
90045-64501

J10#

厚さ=0.20

 1
90045-64502

J10#

厚さ=0.25

 1
90045-64503

J10#

厚さ=0.50

 1
90045-64500

J10#

厚さ=0.15

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-87403

J10#..EFI

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-87403

J10#..EFI

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-87401

J10#..EFI

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-87401

J10#..EFI

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342-87509

J10#

 1
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-87506

J10#

厚さ=0.9

 1
41361-87705

J10#

厚さ=0.85

 1
41361-87507

J10#

厚さ=1.0

 1
41361-87501

J10#

厚さ=0.8

 1
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-87506

J10#

厚さ=0.9

 1
41361-87705

J10#

厚さ=0.85

 1
41361-87507

J10#

厚さ=1.0

 1
41361-87501

J10#

厚さ=0.8

 1
41901 - SPACER, FRONT DIFFERENTIAL MOUNTING
41901-87401

J10#

 1
Common parts
41114-87506
51299-87401
90041-01615
90041-01643
90041-05235
90041-05355
90041-19901
90041-79243
90042-01730
91612-61022
