J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )

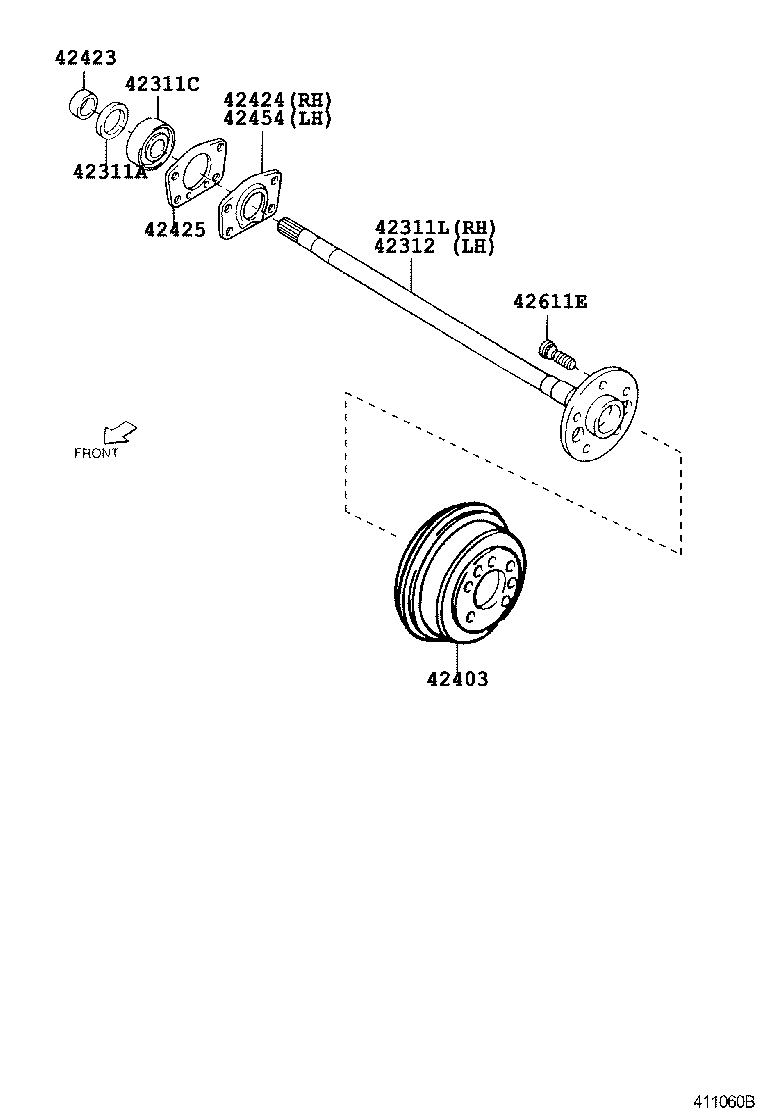

Click highlighted areas on diagram

diagram 42311A 42311C 42311L 42312 42403 42423 42424 42425 42454 42611E
Part # Description Qty Price
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90043-11291

J10#,122

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
90043-63248

J10#,122

 2
42311L - SHAFT, REAR AXLE, RH
42311-87401

J10#..EFI

 1
42312 - SHAFT, REAR AXLE, LH
42312-87401

J10#..EFI

 1
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-87402

J10#,122

 2
42423 - RETAINER, REAR AXLE BEARING, INNER
42423-87401

J10#,122

 2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-87401

J10#,122

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-87402

J10#,122

厚さ=0.3

 1
42425-87401

J10#,122

厚さ=0.15

 1
42425-87403

J10#,122

厚さ=0.40

 1
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42424-87401

J10#,122

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90049-12055

J10#,122

 10
