J100E-GPDE (1999)
Toyota Cami

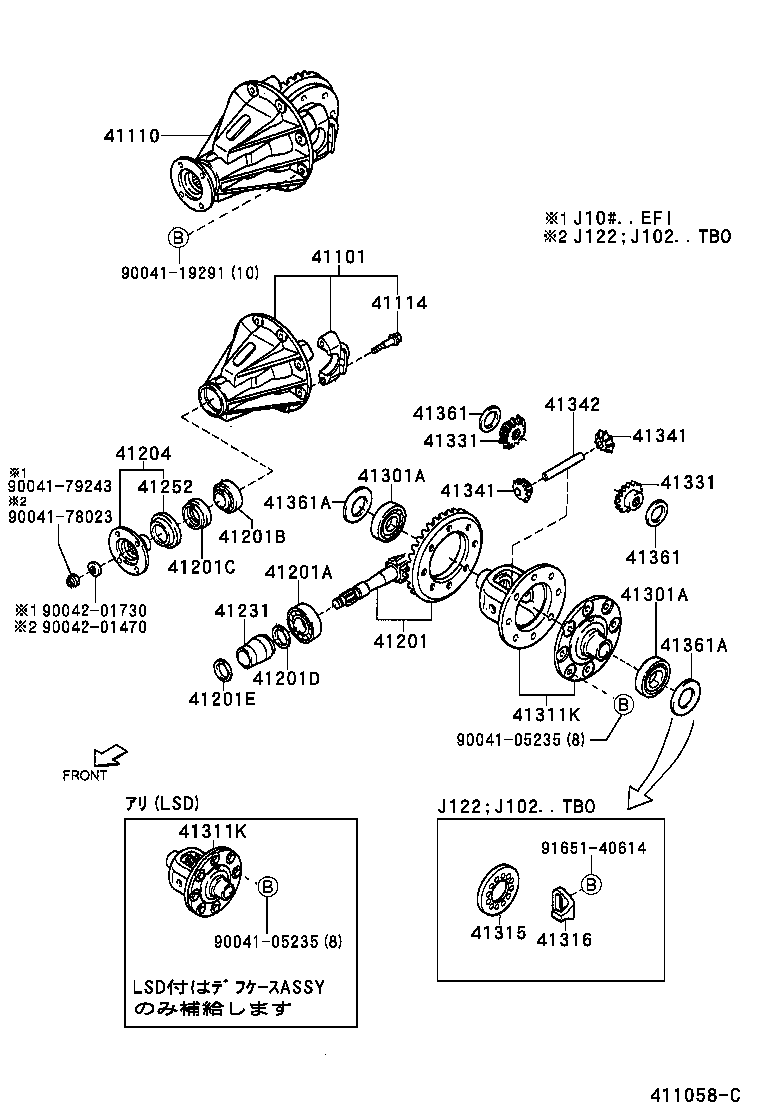

ILLUST NO. 1 OF 2(9905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-87402 |
J100 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-87406 |
J100..4AT ｱﾘ(L.S.D) |
1 | ||
| 41110-87405 |
J100..4AT |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-87506 |
J10#,122 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-87401 |
J100..4AT |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90043-66051 |
J10#..EFI |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90043-66012 |
J10#..EFI 外径=52 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90043-11310 |
J10#..EFI |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90045-64049 |
J10#..EFI 厚さ=0.15 |
1 | ||
| 90045-64489 |
J10#..EFI 厚さ=0.075 |
1 | ||
| 90045-64051 |
J10#..EFI 厚さ=0.25 |
1 | ||
| 90045-64050 |
J10#..EFI 厚さ=0.20 |
1 | ||
| 90045-64052 |
J10#..EFI 厚さ=0.50 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90045-64004 |
J100 厚さ=0.25 |
1 | ||
| 90045-64006 |
J100 厚さ=0.40 |
1 | ||
| 90045-64007 |
J100 厚さ=0.50 |
1 | ||
| 90045-64005 |
J100 厚さ=0.30 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-87402 |
J10#..EFI |
1 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-87509 |
J100 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-87504 |
J10#..EFI |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90043-63228 |
J10#..EFI |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90043-63228 |
J10#..EFI |
2 | ||
| 41311K - CASE, REAR DIFFERENTIAL | ||||
| 41311-87532 |
J10#..EFI |
1 | ||
| 41310-87401 |
J122..Q;J10#..EFI ｱﾘ(L.S.D) |
1 | ||
| 41311K - CASE, REAR DIFFERENTIAL | ||||
| 41311-87532 |
J10#..EFI |
1 | ||
| 41310-87401 |
J122..Q;J10#..EFI ｱﾘ(L.S.D) |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-97202 |
J10#..EFI |
2 | ||
| 41331-87519 |
J100 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-97202 |
J10#..EFI |
2 | ||
| 41331-87519 |
J100 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-87510 |
J10#..EFI |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-87510 |
J10#..EFI |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-87509 |
J10#..EFI |
1 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-87705 |
J10#..EFI 厚さ=0.85 |
2 | ||
| 41361-87506 |
J10#..EFI 厚さ=0.9 |
2 | ||
| 41361-87501 |
J10#..EFI 厚さ=0.8 |
2 | ||
| 41361-87507 |
J10#..EFI 厚さ=1.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-87705 |
J10#..EFI 厚さ=0.85 |
2 | ||
| 41361-87506 |
J10#..EFI 厚さ=0.9 |
2 | ||
| 41361-87501 |
J10#..EFI 厚さ=0.8 |
2 | ||
| 41361-87507 |
J10#..EFI 厚さ=1.0 |
2 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90045-64500 |
J10#,122 厚さ=0.15 |
1 | ||
| 90045-64501 |
J10#,122 厚さ=0.20 |
1 | ||
| 90045-64502 |
J10#,122 厚さ=0.25 |
1 | ||
| 90045-64503 |
J10#,122 厚さ=0.50 |
1 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90045-64500 |
J10#,122 厚さ=0.15 |
1 | ||
| 90045-64501 |
J10#,122 厚さ=0.20 |
1 | ||
| 90045-64502 |
J10#,122 厚さ=0.25 |
1 | ||
| 90045-64503 |
J10#,122 厚さ=0.50 |
1 | ||
| Common parts | ||||
| 90041-05235 | ||||
| 90041-19291 | ||||
| 90041-78023 | ||||
| 90041-79243 | ||||
| 90042-01470 | ||||
| 90042-01730 | ||||
| 91651-40614 | ||||

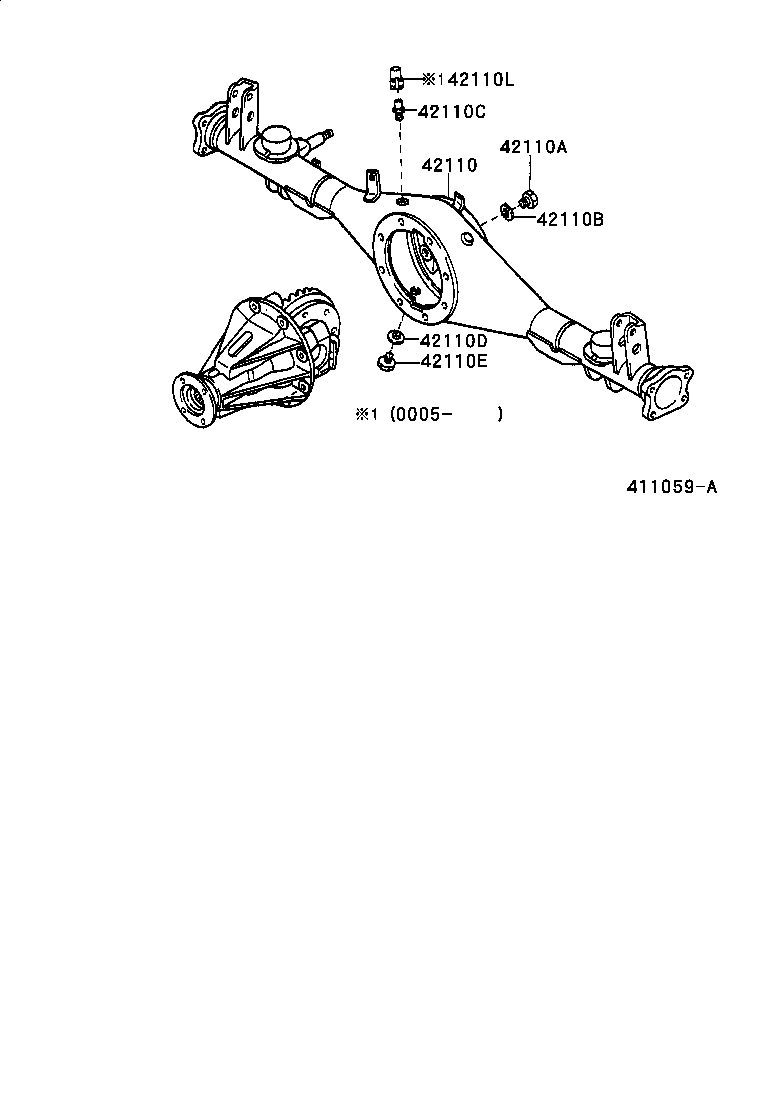

ILLUST NO. 2 OF 2(9905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-87402 |
J100 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90043-41046 |
J10#,122 |
2 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
J10#,122 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90049-15026 |
J10#,122 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
J10#,122 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90043-41046 |
J10#,122 |
1 | ||
