J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905- )J10#

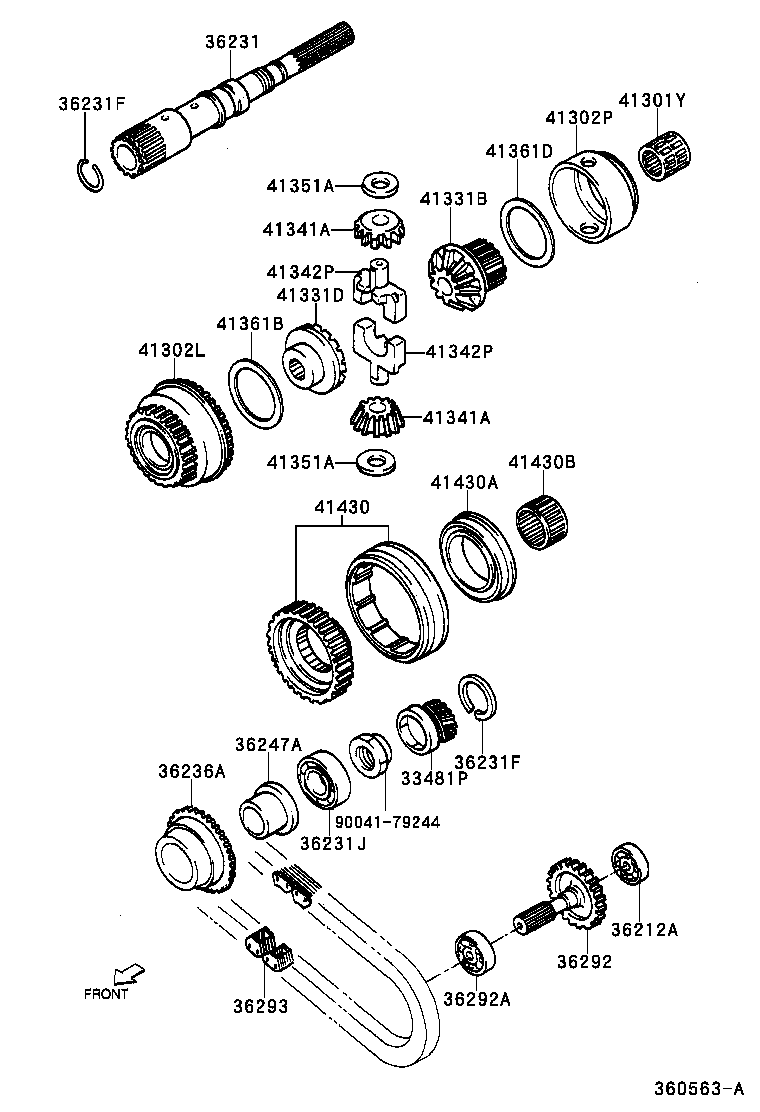

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-87405 |
J100..4AT |
1 | ||
| 36212A - BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR) | ||||
| 97100-06203 |
J10# |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90045-20287 |
J10# NO.1 |
1 | ||
| 96150-02200 |
J10# NO.2 |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90045-20287 |
J10# NO.1 |
1 | ||
| 96150-02200 |
J10# NO.2 |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90043-63232 |
J10# |
1 | ||
| 36236A - GEAR, TRANSFER FRONT DRIVE | ||||
| 36232-87401 |
J100;J102..5F |
1 | ||
| 36247A - RACE, TRANSFER FRONT DRIVE GEAR BEARING | ||||
| 36247-87401 |
J10# |
1 | ||
| 36292 - SPROCKET, TRANSFER DRIVEN | ||||
| 36234-87513 |
J100;J102..5F |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 97130-06005 |
J10# |
1 | ||
| 36293 - CHAIN, TRANSFER FRONT DRIVE | ||||
| 36293-87507 |
J100;J102..5F |
1 | ||
| 41301Y - BEARING, NEEDLE ROLLER(FOR DIFFERENTIAL CASE) | ||||
| 90043-64102 |
J10# |
1 | ||
| 41302L - CASE SUB-ASSY, DIFFERENTIAL, NO.2 | ||||
| 41312-87401 |
J100..4AT |
1 | ||
| 41302P - CASE SUB-ASSY, DIFFERENTIAL, NO.1 | ||||
| 41301-87401 |
J100 |
1 | ||
| 41331B - GEAR, CENTER DIFFERENTIAL SIDE | ||||
| 41331-87402 |
J10# |
1 | ||
| 41331D - GEAR, DIFFERENTIAL SIDE, NO.2 | ||||
| 41331-87401 |
J10#..4AT |
1 | ||
| 41341A - PINION, CENTER DIFFERENTIAL | ||||
| 41341-87403 |
J10# |
2 | ||
| 41341A - PINION, CENTER DIFFERENTIAL | ||||
| 41341-87403 |
J10# |
2 | ||
| 41342P - SHAFT, DIFFERENTIAL PINION | ||||
| 41342-87401 |
J10# |
2 | ||
| 41342P - SHAFT, DIFFERENTIAL PINION | ||||
| 41342-87401 |
J10# |
2 | ||
| 41351A - WASHER, CENTER DIFFERENTIAL PINION TRUST | ||||
| 41351-87501 |
J10# |
2 | ||
| 41351A - WASHER, CENTER DIFFERENTIAL PINION TRUST | ||||
| 41351-87501 |
J10# |
2 | ||
| 41361B - WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-87508 |
J10# 外径=52,内径=36 |
1 | ||
| 41430 - HUB, TRANSFER CLUTCH | ||||
| 41430-87501 |
J10# |
1 | ||
| 41430A - BEARING, TRANSFER CLUTCH HUB | ||||
| 90043-63233 |
J10# |
1 | ||
| 41430B - NEEDLE ROLLER BEARING, TRANSFER CLUTCH HUB | ||||
| 90043-64112 |
J10# |
1 | ||
| Common parts | ||||
| 90041-79244 | ||||
