J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )J10#

Click highlighted areas on diagram

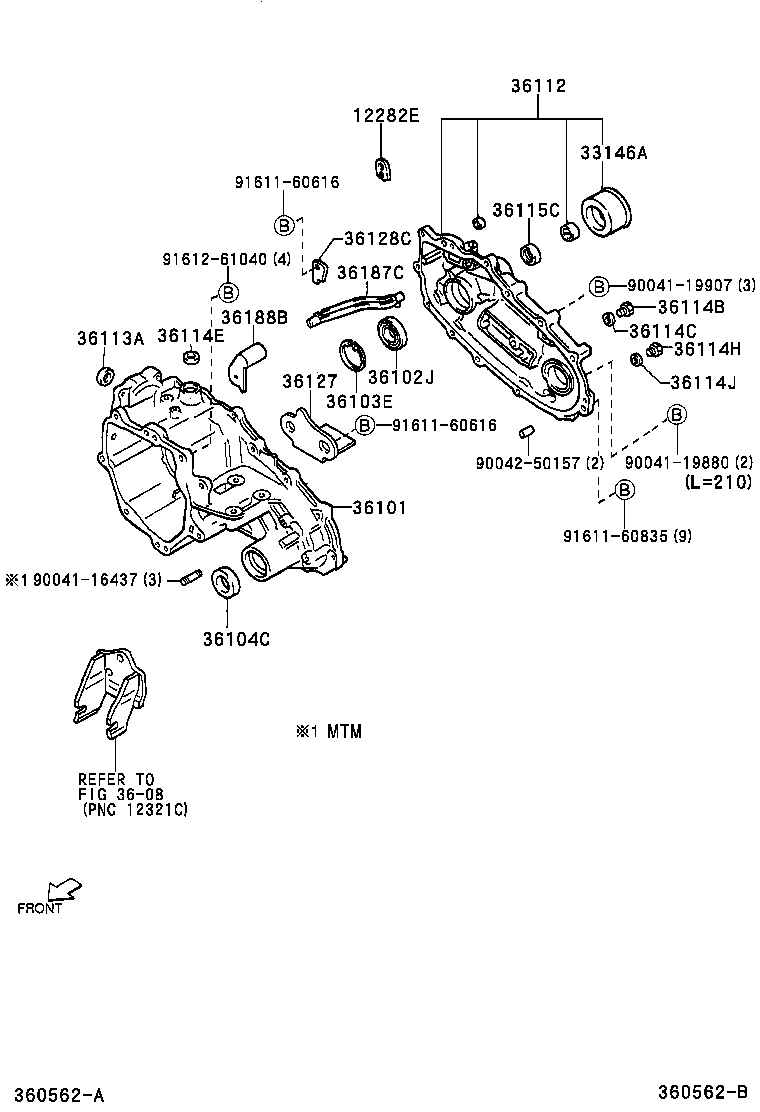

diagram 12282E 33146A 3608 36101 36102J 36103E 36104C 36112 36113A 36114B 36114C 36114E 36114H 36114J 36115C 36127 36128C 36187C 36188B 9004116437 9004119880 9004119907 9004250157 9161160616 9161160616 9161160835 9161261040
Part # Description Qty Price
12282E - HANGER, TRANSFER CASE
12282-87501

K3V#,HCEJ..J10#

 1
33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33146-87401

J100;J102..5F

 1
36101 - CASE SUB-ASSY, TRANSFER
36101-87401

J10#..4AT

 1
36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER)
88364-87501

J10#

 1
36103E - RING, HOLE SNAP (FOR TRANSFER CASE BEARING)
90045-21156

J10#

 1
36104C - SEAL, DUST (FOR TRANSFER OUTPUT SHAFT)
90043-11320

J10#

 1
36113A - SEAL, OIL (FOR TRANSFER CASE RH)
90043-11314

J10#

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-16012

J10#

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90044-30178

J10#

 1
36114E - SEAL, OIL (FOR TRANSFER CASE LH)
90043-13008

J10#

 1
36114H - PLUG, NO.2 (FOR TRANSFER CASE)
90043-41068

J10#

 1
36114J - GASKET, NO.2 (FOR TRANSFER CASE)
90044-30055

J10#

 1
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90043-11309

J10#..EFI

 1
36127 - PLATE, TRANSFER OIL
36127-87506

J10#

 1
36128C - PLATE, TRANSFER OIL SUPPLY
36128-87503

J10#

 1
36187C - PIPE, TRANSFER OIL SUPPLY, RH
36187-87502

J10#

 1
36188B - PIPE, TRANSFER OIL SUPPLY, LH
36188-87401

J10#..4AT

 1
Common parts
90041-16437
90041-19880
90041-19907
90042-50157
91611-60616
91611-60835
91612-61040
Linked diagrams
3608
