J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905- )4AT

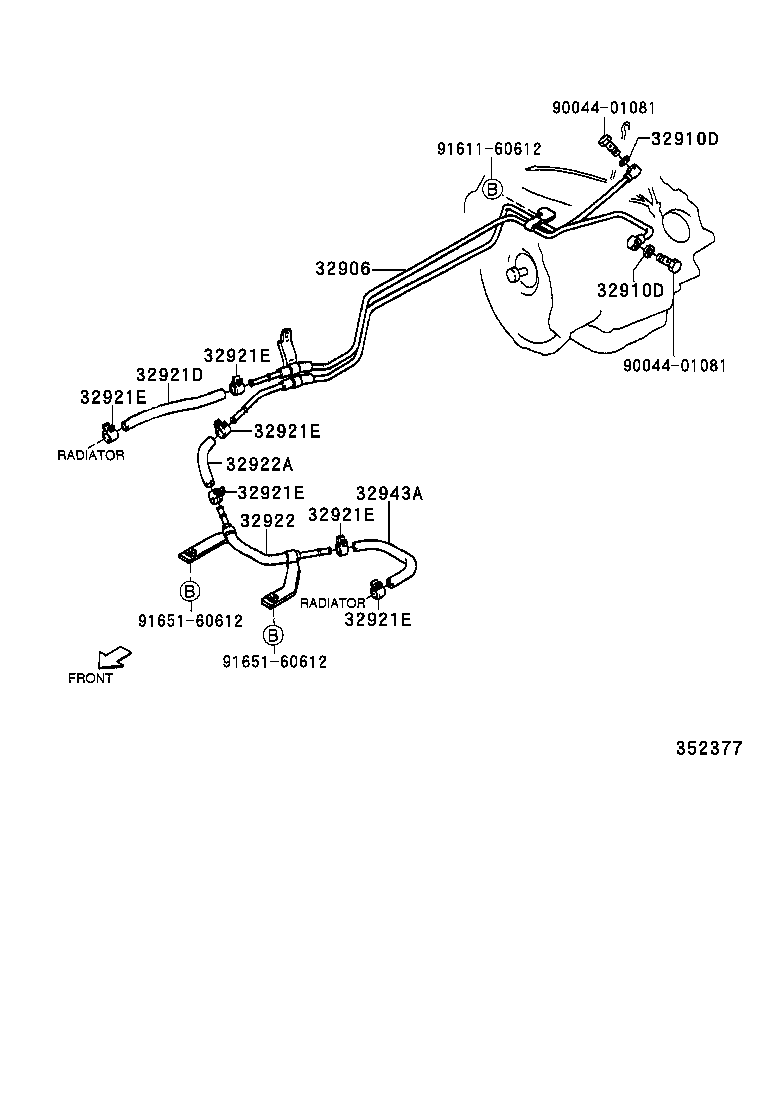

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32906 - TUBE SUB-ASSY, OIL COOLER | ||||
| 32906-87404 |
J100..4AT |
1 | ||
| 32910D - GASKET(FOR OIL COOLER) | ||||
| 90044-30302 |
J10#,122..4AT |
2 | ||
| 32910D - GASKET(FOR OIL COOLER) | ||||
| 90044-30302 |
J10#,122..4AT |
2 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-87401 |
J10#,122..4AT |
1 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90044-67257 |
J10#,122..4AT |
6 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90044-67257 |
J10#,122..4AT |
6 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90044-67257 |
J10#,122..4AT |
6 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90044-67257 |
J10#,122..4AT |
6 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90044-67257 |
J10#,122..4AT |
6 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90044-67257 |
J10#,122..4AT |
6 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32916-87401 |
J10#,122..4AT |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32941-87402 |
J10#,122..4AT |
1 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 32941-87403 |
J10#,122..4AT |
1 | ||
| Common parts | ||||
| 90044-01081 | ||||
| 91611-60612 | ||||
| 91651-60612 | ||||
