J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0005)4AT

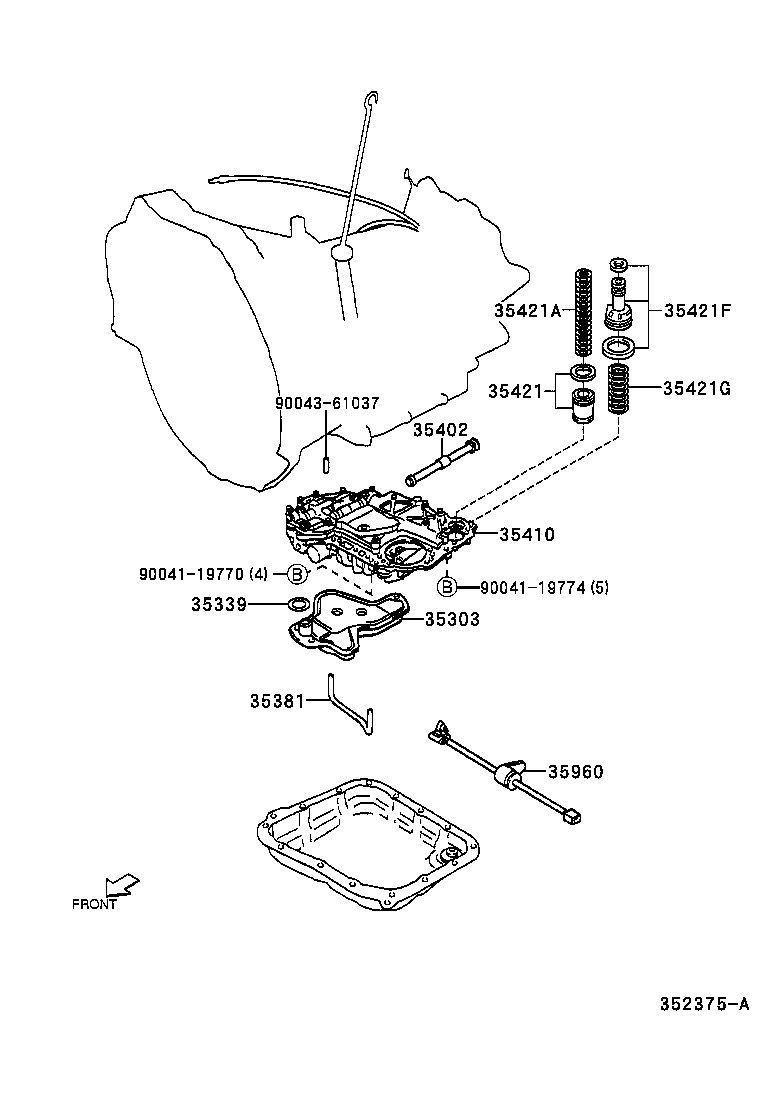

Click highlighted areas on diagram

diagram 35303 35339 35381 35402 35410 35421 35421A 35421F 35421G 35960 9004119770 9004119774 9004361037
Part # Description Qty Price
35303 - STRAINER SUB-ASSY, OIL
35303-87401

J100..4AT

 1
35339 - GASKET, OIL STRAINER
96721-24020

J100..4AT

 1
35381 - TUBE, VALVE BODY
35381-87402

J100..4AT

 1
35402 - VALVE, MANUAL
35402-97201

J100..4AT

 1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-87404

J100..4AT

 1
35421 - PISTON, ACCUMULATOR, NO.1
35440-87201

J100..4AT

 1
35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1)
90045-01714

J100..4AT

 1
35421F - PISTON, ACCUMULATOR, NO.2
35430-87201

J100..4AT

 1
35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)
90045-01715

J100..4AT

 1
35960 - WIRE, SOLENOID
35960-87401

J100..4AT

 1
Common parts
90041-19770
90041-19774
90043-61037
