J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0005)4AT

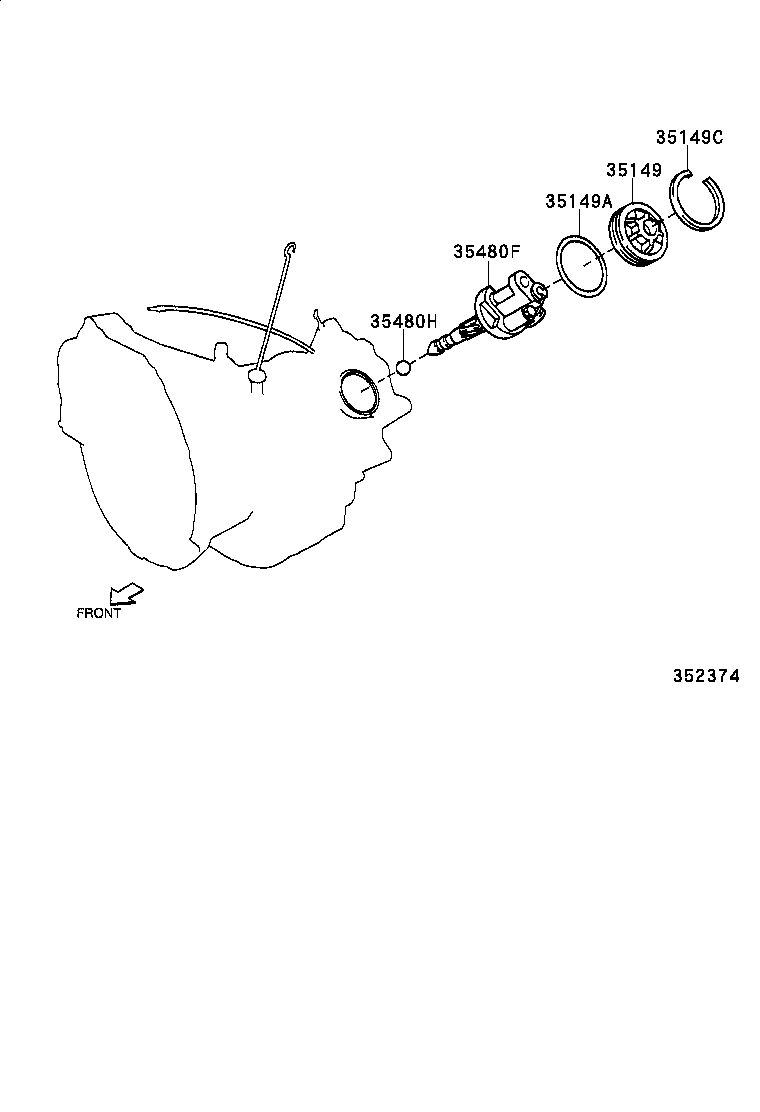

Click highlighted areas on diagram

diagram 35149 35149A 35149C 35480F 35480H
Part # Description Qty Price
35149 - COVER, GOVERNOR
35149-87202

J100..4AT

 1
35149A - RING, O (FOR GOVERNOR COVER)
96721-24067

J100..4AT

 1
35149C - RING, SNAP(FOR GOVERNOR COVER)
90045-21113

J100..4AT

 1
35480F - BODY ASSY, GOVERNOR
35480-87401

J100..4AT

 1
35480H - BALL(FOR DRIVE SHIFT FORK SHAFT)
90043-60003

J100..4AT

 1
