J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905-0005)4AT

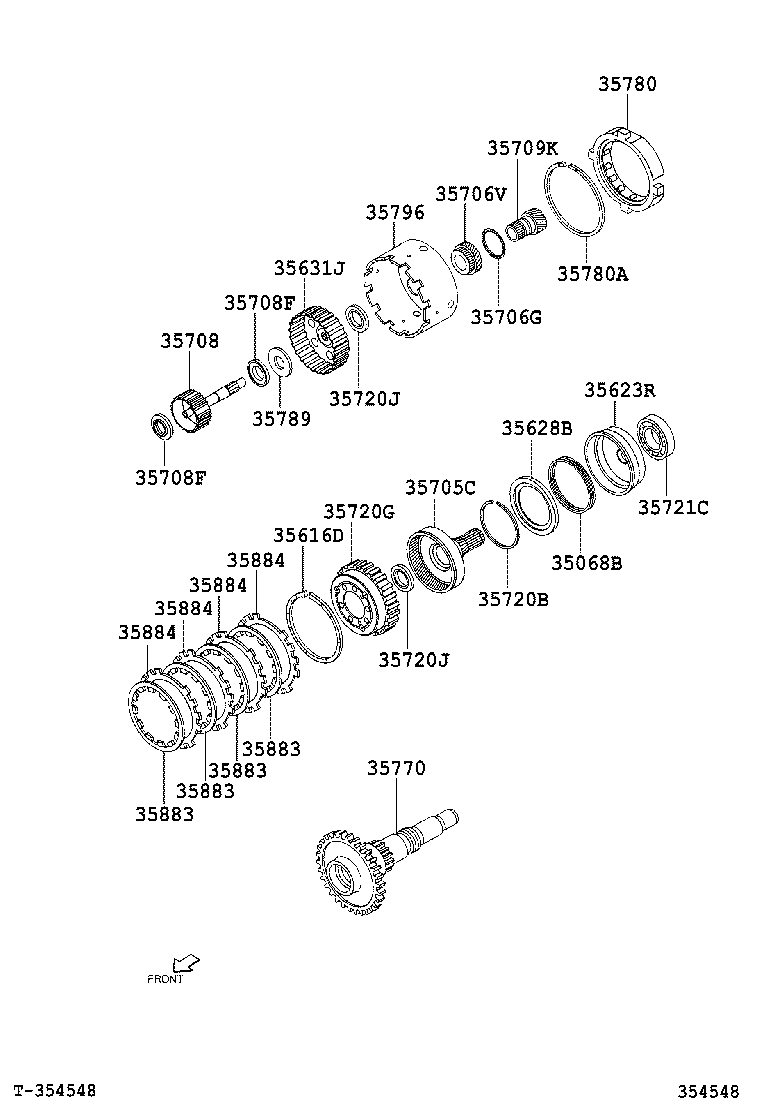

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068B - SPRING, 1ST & REVERSE BRAKE RITURN | ||||
| 35068-97201 |
J100..4AT |
1 | ||
| 35616D - WASHER, CLUTCH DRUM THRUST | ||||
| 35671-97201 |
J100..4AT |
1 | ||
| 35623R - RIVERSE PISTON | ||||
| 35623-97201 |
J100..4AT |
1 | ||
| 35628B - SEAT, RIVERSE CLUTCH PISTON RETURN SPRING | ||||
| 35628-97201 |
J100..4AT |
1 | ||
| 35631J - HUB, FORWARD CLUTCH, NO.1 | ||||
| 35631-97202 |
J100..4AT |
1 | ||
| 35705C - SHAFT SUB-ASSY, PLANETARY OUTPUT | ||||
| 35705-87503 |
J100..4AT |
1 | ||
| 35706G - BEARING, THRUST (FOR SUN GEAR REAR) | ||||
| 90043-74041 |
J100..4AT |
1 | ||
| 35706V - GEAR SUB ASSY, PLANETARY SUN | ||||
| 35706-97202 |
J100..4AT |
1 | ||
| 35708 - SHAFT SUB-ASSY, INTERMEDIATE | ||||
| 35708-87204 |
J100..4AT |
1 | ||
| 35708F - BEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT) | ||||
| 90043-74027 |
J100..4AT |
2 | ||
| 35708F - BEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT) | ||||
| 90043-74027 |
J100..4AT |
2 | ||
| 35709K - GEAR SUB-ASSY, REAR PLANETARY | ||||
| 35709-97202 |
J100..4AT |
1 | ||
| 35720B - RING, SHAFT SNAP (FOR FRONT PLANETARY GEAR) | ||||
| 90045-20226 |
J100..4AT |
1 | ||
| 35720G - GEAR ASSY, PLANETARY | ||||
| 35720-97204 |
J100..4AT |
1 | ||
| 35720J - BEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT) | ||||
| 90043-74034 |
J100..4AT |
1 | ||
| 35720J - BEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT) | ||||
| 90043-74034 |
J100..4AT |
1 | ||
| 35721C - BEARING (FOR PLANETARY LONG PINION) | ||||
| 97103-06007 |
J100..4AT |
1 | ||
| 35770 - SHAFT ASSY, OUTPUT | ||||
| 35770-87404 |
J100..4AT |
1 | ||
| 35780 - CLUTCH ASSY, 1 WAY NO.2 | ||||
| 35780-87202 |
J100..4AT |
1 | ||
| 35780A - RING, SNAP (FOR 1 WAY CLUTCH) | ||||
| 90045-21123 |
J100..4AT 厚さ=2.75 |
1 | ||
| 90045-21120 |
J100..4AT 厚さ=2.25 |
1 | ||
| 90045-21121 |
J100..4AT 厚さ=2.5 |
1 | ||
| 90045-21119 |
J100..4AT 厚さ=2.0 |
1 | ||
| 35789 - RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT) | ||||
| 35789-87207 |
J100..4AT |
1 | ||
| 35796 - DRUM, SECOUND BRAKE | ||||
| 35796-97201 |
J100..4AT |
1 | ||
| 35883 - DISC, REVERSE CLUTCH | ||||
| 35883-87502 |
J100..4AT |
4 | ||
| 35883 - DISC, REVERSE CLUTCH | ||||
| 35883-87502 |
J100..4AT |
4 | ||
| 35883 - DISC, REVERSE CLUTCH | ||||
| 35883-87502 |
J100..4AT |
4 | ||
| 35883 - DISC, REVERSE CLUTCH | ||||
| 35883-87502 |
J100..4AT |
4 | ||
| 35884 - PLATE, REVERSE CLUTCH, NO.2 | ||||
| 35884-87502 |
J100..4AT |
4 | ||
| 35884 - PLATE, REVERSE CLUTCH, NO.2 | ||||
| 35884-87502 |
J100..4AT |
4 | ||
| 35884 - PLATE, REVERSE CLUTCH, NO.2 | ||||
| 35884-87502 |
J100..4AT |
4 | ||
| 35884 - PLATE, REVERSE CLUTCH, NO.2 | ||||
| 35884-87502 |
J100..4AT |
4 | ||
