J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905-0005)4AT

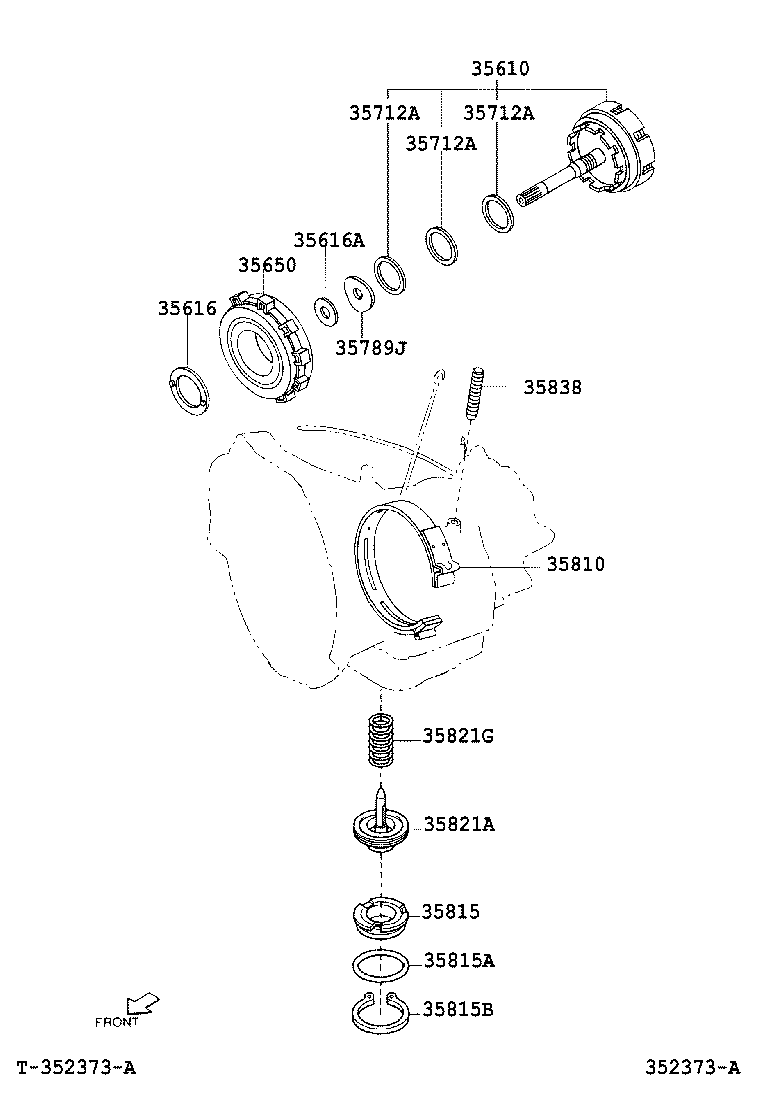

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35610 - CLUTCH ASSY, FRONT MULTIPLE DISC | ||||
| 35610-87403 |
J100..4AT |
1 | ||
| 35616 - WASHER, CLUTCH DRUM THRUST | ||||
| 35616-87204 |
J100..4AT |
1 | ||
| 35616A - BEARING, FRONT CLUTCH THRUST | ||||
| 90043-74041 |
J100..4AT |
1 | ||
| 35650 - CLUTCH ASSY, REAR MULTIPLE DISC | ||||
| 35650-87401 |
J100..4AT |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-87202 |
J100..4AT |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-87202 |
J100..4AT |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-87202 |
J100..4AT |
3 | ||
| 35789J - RACE, THRUST BEARING (FOR INPUT SHAFT FRONT) | ||||
| 35789-87209 |
J100..4AT 厚さ=2.0,外径=53,内径=21.4 |
1 | ||
| 35789-87208 |
J100..4AT 厚さ=1.6,外径=53,内径=21.4 |
1 | ||
| 35789-87210 |
J100..4AT 厚さ=2.4,外径=53,内径=21.4 |
1 | ||
| 35810 - BAND ASSY, TRANSMISSION BRAKE (FOR FRONT) | ||||
| 35810-97202 |
J100..4AT |
1 | ||
| 35815 - COVER, 2ND COAST BRAKE | ||||
| 35847-87202 |
J100..4AT |
1 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90043-01173 |
J100..4AT |
1 | ||
| 35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) | ||||
| 90045-21133 |
J100..4AT |
2 | ||
| 35821A - PISTON, 2ND COAST BRAKE | ||||
| 35820-87202 |
J100..4AT |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90045-01683 |
J100..4AT |
1 | ||
| 35838 - BOLT, BRAKE BAND ANCHOR | ||||
| 35838-97201 |
J100..4AT |
1 | ||
