J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905-0005)4AT

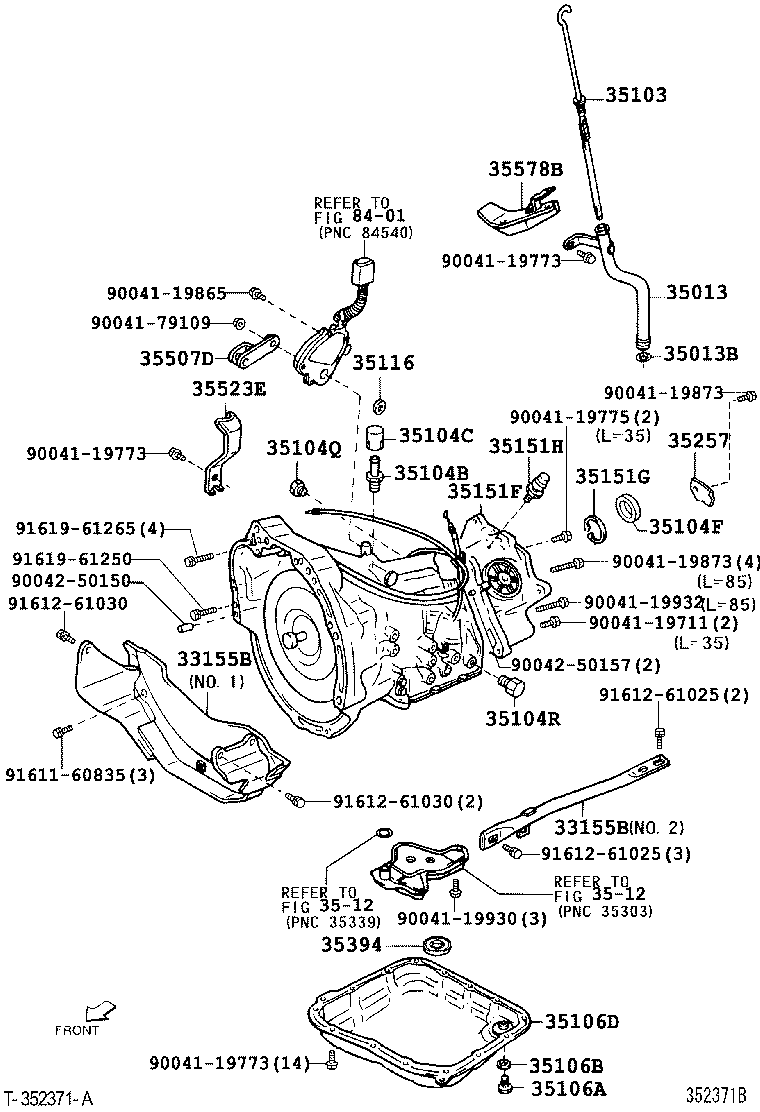

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33155B - STIFFENER, POWER TRAIN | ||||
| 33155-87401 |
J100..4AT NO.1 |
1 | ||
| 33155-87406 |
J100..4AT NO.2 |
1 | ||
| 33155B - STIFFENER, POWER TRAIN | ||||
| 33155-87401 |
J100..4AT NO.1 |
1 | ||
| 33155-87406 |
J100..4AT NO.2 |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-87401 |
J100..4AT |
1 | ||
| 35013B - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90043-01193 |
J10#,122..4AT |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-87401 |
J100..4AT |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90049-15048 |
J100,122..4AT |
1 | ||
| 35104C - PLUG, BREATHER, NO.2 (ATM) | ||||
| 90049-15050 |
J100..4AT |
1 | ||
| 35104F - SEAL, OIL (FOR TRANSAXLE CASE) | ||||
| 90043-16023 |
J10#..4AT |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90043-45037 |
J100..4AT |
9 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90043-45037 |
J100..4AT |
9 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90043-41041 |
J10#,122..4AT |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90044-30281 |
J10#,122..4AT |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-87402 |
J100..4AT |
1 | ||
| 35116 - SEAL, TRANSMISSION CASE DUST | ||||
| 90043-11256 |
J10#,122..4AT |
1 | ||
| 35151F - COVER, TRANSMISSION CASE, SIDE | ||||
| 35151-87403 |
J100..4AT |
1 | ||
| 35151G - SNAP RING, TRANSMISSION CASE SIDE COVER | ||||
| 90045-21133 |
J100..4AT |
1 | ||
| 35151H - PLUG, BREATHER, NO.3 (ATM) | ||||
| 90930-03031 |
J100..4AT |
1 | ||
| 35257 - PLATE, OIL GUIDE | ||||
| 35257-87502 |
J100..4AT |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 33449-87502 |
J10#,122..4AT |
1 | ||
| 35507D - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35507-87401 |
J100..4AT |
1 | ||
| 35523E - CLAMP, THROTTLE CABLE | ||||
| 35523-87402 |
J100..4AT |
1 | ||
| 35578B - BRACKET, TRANSMISSION CONTROL CABLE | ||||
| 35578-87403 |
J100..4AT |
1 | ||
| 35578-87401 |
J100..4AT |
1 | ||
| Common parts | ||||
| 90041-19711 | ||||
| 90041-19773 | ||||
| 90041-19775 | ||||
| 90041-19865 | ||||
| 90041-19873 | ||||
| 90041-19930 | ||||
| 90041-19932 | ||||
| 90041-79109 | ||||
| 90042-50150 | ||||
| 90042-50157 | ||||
| 91611-60835 | ||||
| 91612-61025 | ||||
| 91612-61030 | ||||
| 91619-61250 | ||||
| 91619-61265 | ||||
| Linked diagrams | ||||
| 3512 | ||||
| 8401 | ||||
