J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )4AT

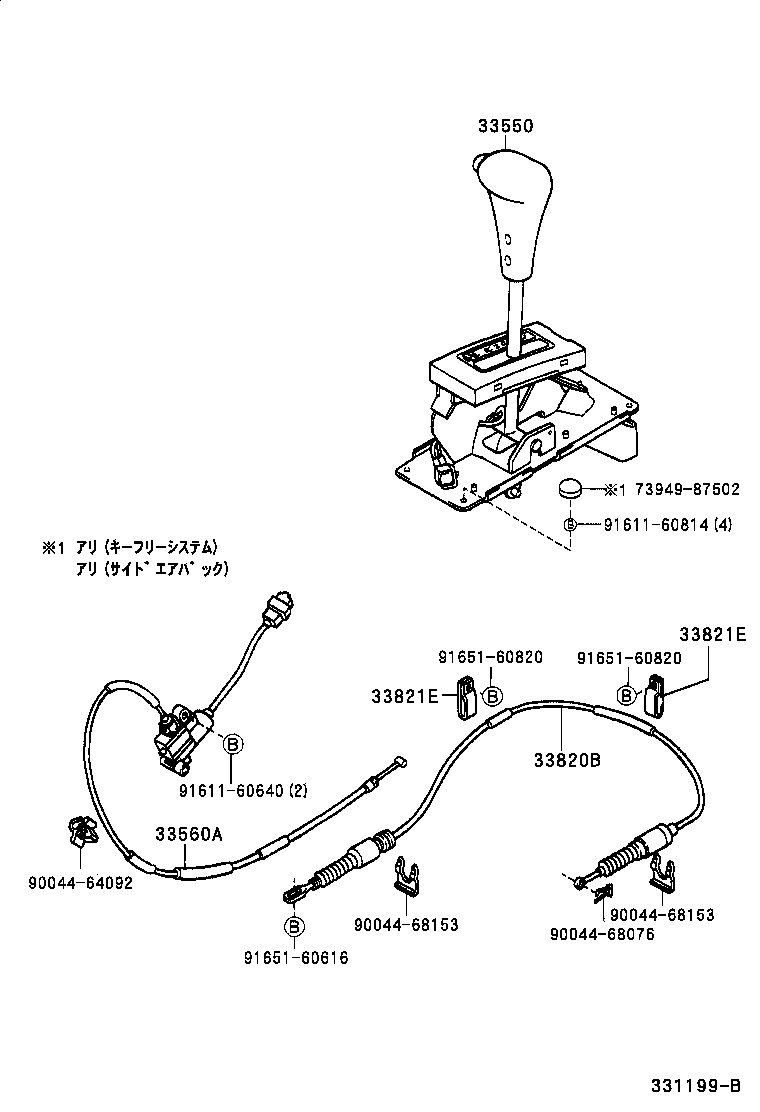

Click highlighted areas on diagram

diagram 33550 33560A 33820B 33821E 33821E 7394987502 9004464092 9004468076 9004468153 9004468153 9161160640 9161160814 9165160616 9165160820 9165160820
Part # Description Qty Price
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-8740203

J100..4AT

GRAY,TRIMS

 1
33560A - CABLE ASSY, SHIFT LOCK RELEASE
33560-87401

J10#,122..4AT

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33520-87401

J10#,122..4AT

 1
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90044-61778

J10#,122

 2
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90044-61778

J10#,122

 2
Common parts
73949-87502
90044-64092
90044-68076
90044-68153
91611-60640
91611-60814
91651-60616
91651-60820
