J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

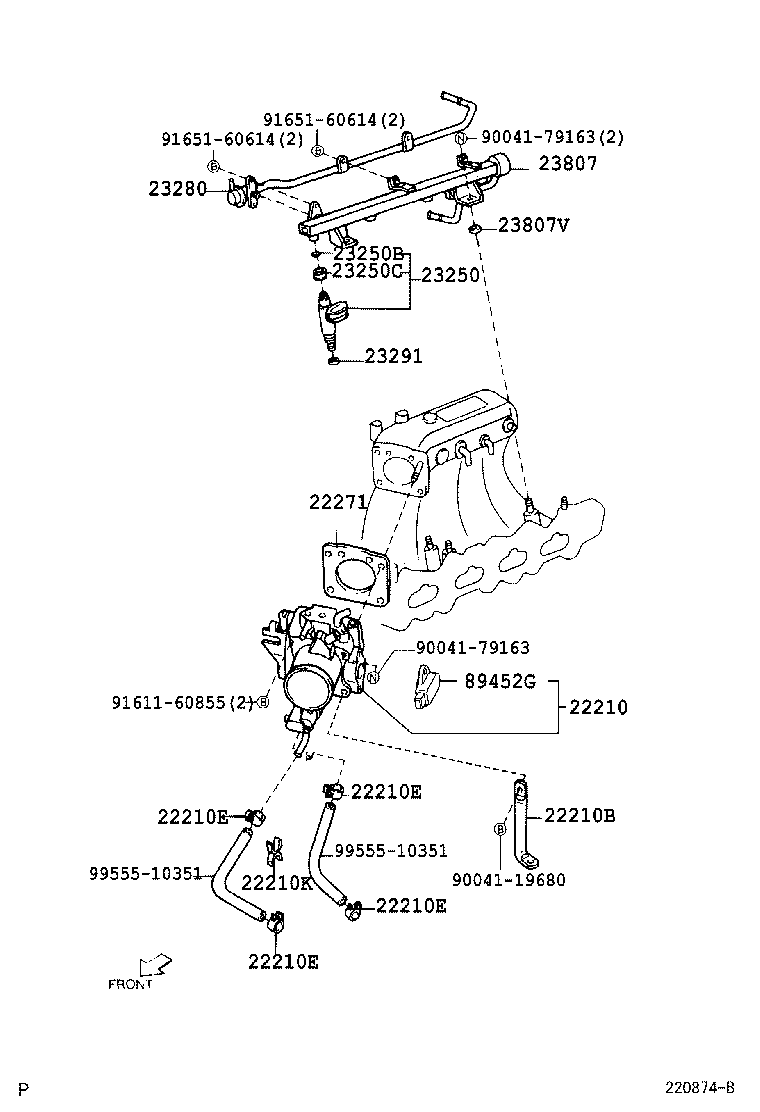

ILLUST NO. 1 OF 4(9905-0005)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-87142 |
HCEJ..J100..4AT |
1 | ||
| 22210B - STAY, THROTTLE BODY, NO.1 | ||||
| 17125-87102 |
HCEJ..J100 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90044-67194 |
HCEJ..J100 |
4 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90044-67194 |
HCEJ..J100 |
4 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90044-67194 |
HCEJ..J100 |
4 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90044-67194 |
HCEJ..J100 |
4 | ||
| 22210K - CLAMP(FOR WATER HOSE) | ||||
| 90044-64402 |
HCEJ..J100 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-87105 |
HCEJ..J100 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23250-87107 |
HCEJ..J100 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90043-01136 |
HCEJ..J100 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90044-80391 |
HCEJ..J100 |
4 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-87108 |
HCEJ..J100 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-87701 |
K3VE,HCEJ..J10#,122 |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-87108 |
HCEJ..J100 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 23845-87702 |
HCEJ..J100 |
2 | ||
| 89452G - SENSOR, THROTTLE POSITION | ||||
| 89452-87114 |
HCEJ..J100 |
1 | ||
| Common parts | ||||
| 90041-19680 | ||||
| 90041-79163 | ||||
| 91611-60855 | ||||
| 91651-60614 | ||||
| 99555-10351 | ||||

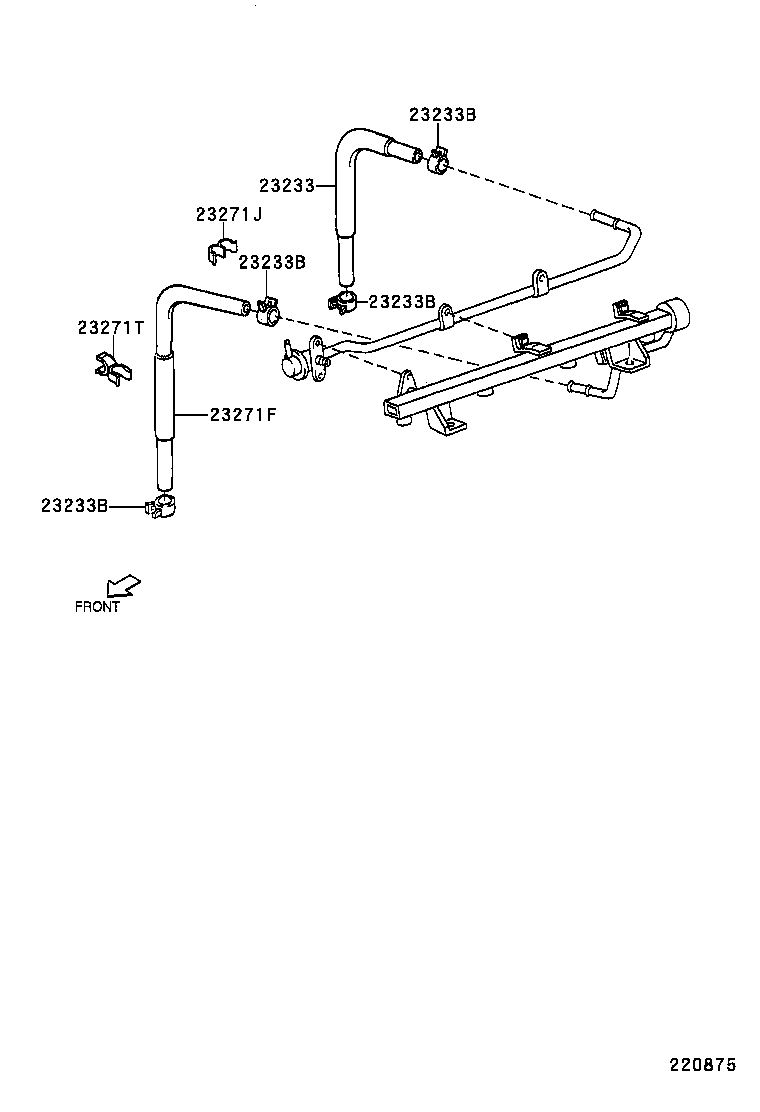

ILLUST NO. 2 OF 4(9905-0005)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23233 - HOSE, FUEL PUMP | ||||
| 23233-87402 |
HCEJ..J100 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90044-67400 |
HCEJ..J100 |
4 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90044-67400 |
HCEJ..J100 |
4 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90044-67400 |
HCEJ..J100 |
4 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90044-67400 |
HCEJ..J100 |
4 | ||
| 23271F - HOSE, FUEL | ||||
| 90048-64354 |
HCEJ..J100 |
1 | ||
| 23271J - CLAMP, NO.2(FOR FUEL HOSE) | ||||
| 90044-64533 |
HCEJ..J100 |
1 | ||
| 23271T - CLAMP OR CLIP(FOR FUEL HOSE) | ||||
| 90044-64415 |
HCEJ..J100 |
1 | ||

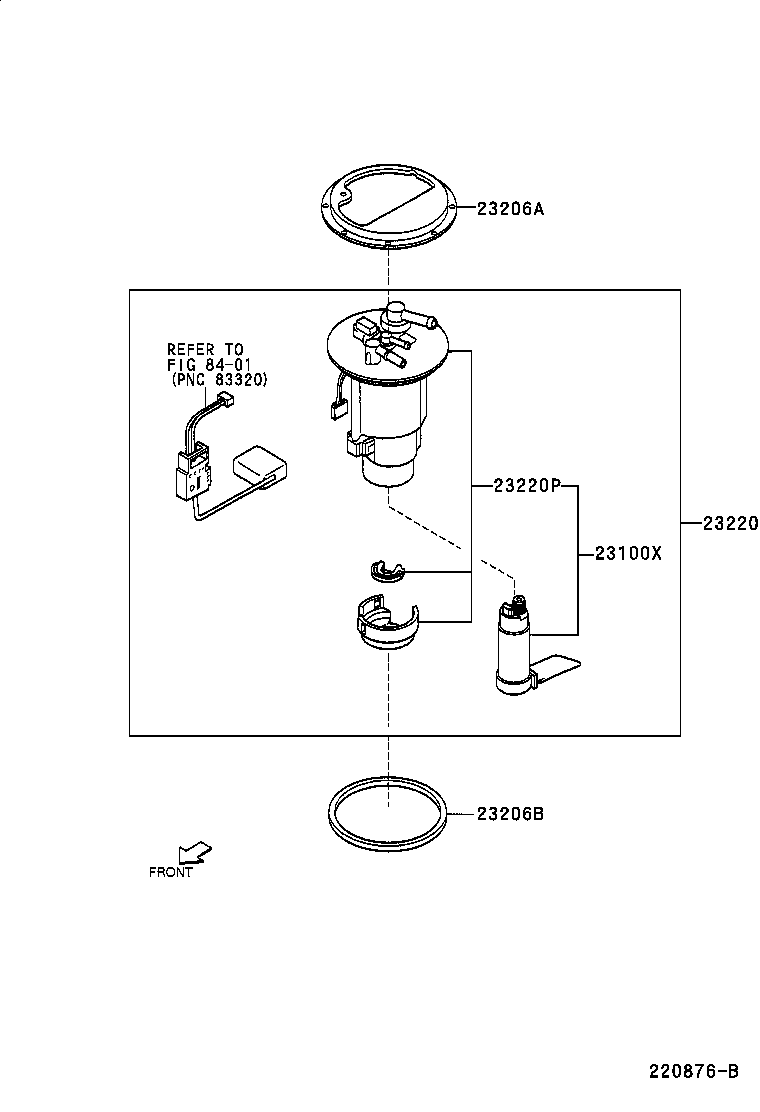

ILLUST NO. 3 OF 4(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE) | ||||
| 23100-87401 |
HCEJ..J100 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23265-87401 |
K3VE,HCEJ..J10#,122 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 23232-87401 |
K3VE,HCEJ..J10#,122 |
1 | ||
| 23220 - PUMP ASSY, FUEL W/FILTER | ||||
| 23210-87401 |
HCEJ..J100 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||

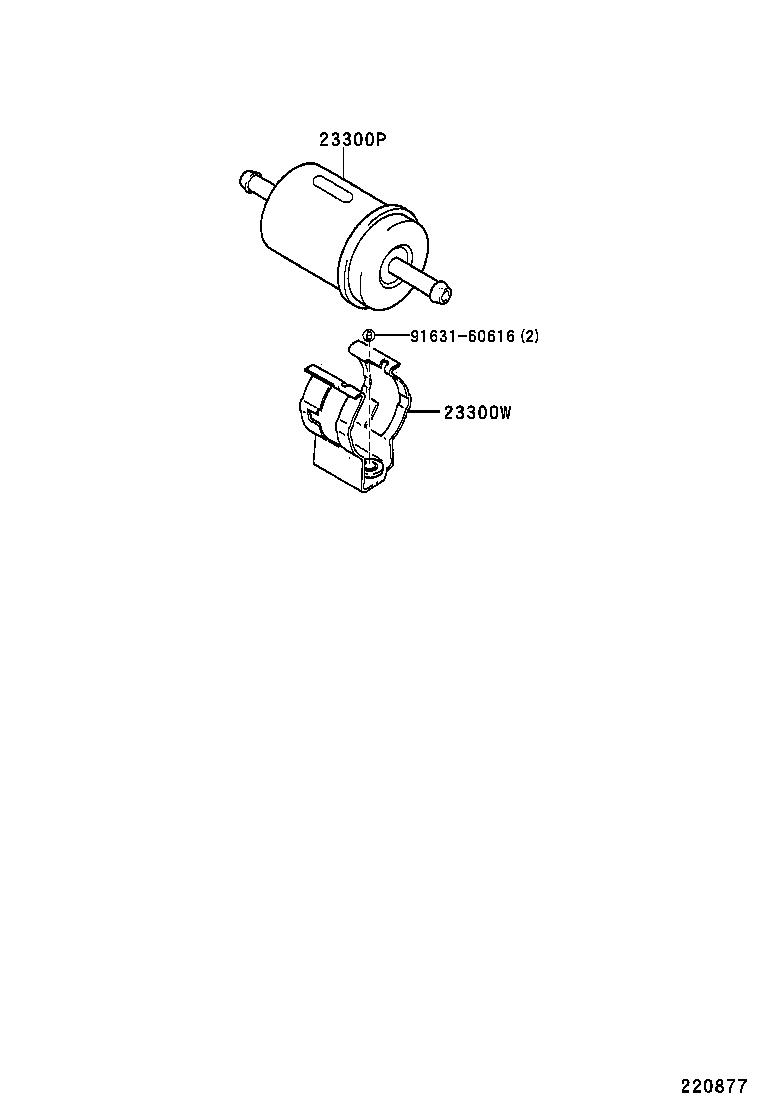

ILLUST NO. 4 OF 4(9905-0005)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-87403 |
HCEJ..J100 |
1 | ||
| 23300W - BRACKET, FUEL FILTER | ||||
| 23205-87401 |
HCEJ..J100 |
1 | ||
| Common parts | ||||
| 91631-60616 | ||||
