J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905-0005)

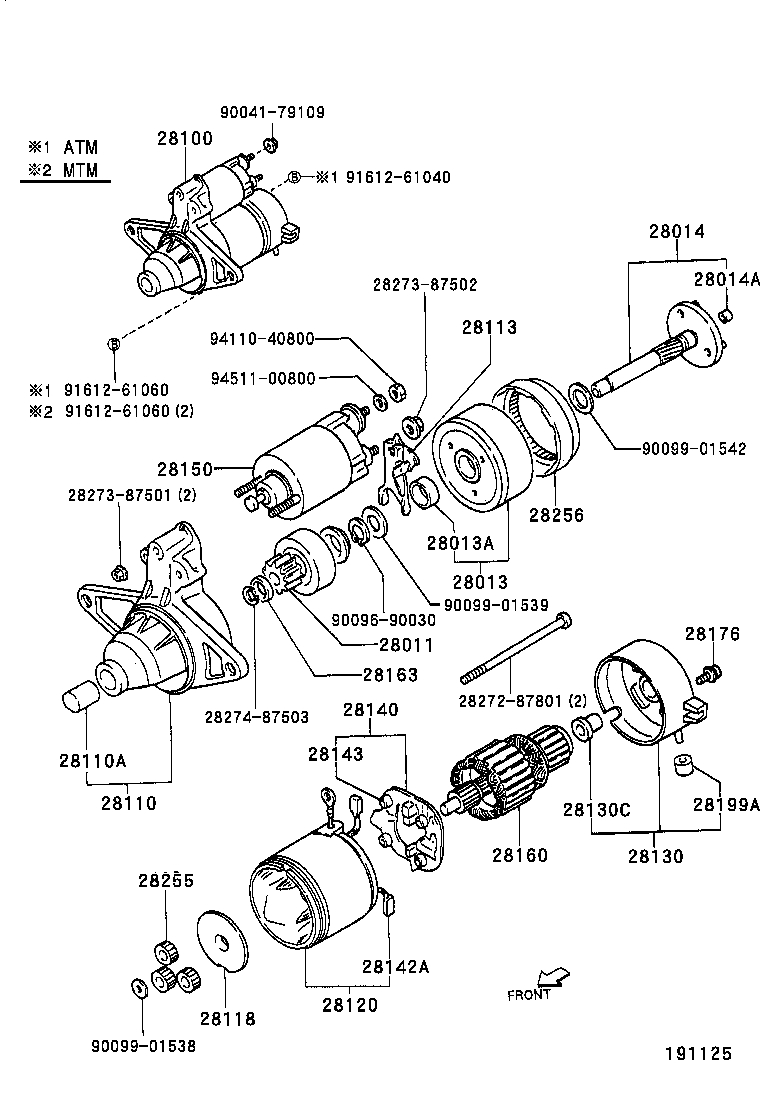

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-87101 |
HCEJ..J100 |
1 | ||
| 28013 - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1 | ||||
| 28126-87201 |
HCEJ..J100 |
1 | ||
| 28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2 | ||||
| 90099-10181 |
HCEJ..J100 |
1 | ||
| 28014 - SHAFT SUB-ASSY, PLANET CARRIER | ||||
| 28209-87201 |
HCEJ..J100 |
1 | ||
| 28014A - BUSH OR BEARING, PLANET CARRIER SHAFT | ||||
| 90099-10180 |
HCEJ..J100 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-87402 |
HCEJ..J100..4AT |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-87402 |
HCEJ..J100..4AT |
1 | ||
| 28110A - BEARING(FOR STARTER HOUSING) | ||||
| 90099-10182 |
HCEJ..J100 |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-87204 |
HCEJ..J100 |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-87201 |
HCEJ..J100 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-87401 |
HCEJ..J100 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28133-87202 |
HCEJ..J100 |
1 | ||
| 28130C - BEARING, STARTER FLANGE | ||||
| 90099-10183 |
HCEJ..J100 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-87202 |
HCEJ..J100 |
1 | ||
| 28142A - STARTER KIT | ||||
| 28142-87204 |
HCEJ..J100 |
2 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-87202 |
HCEJ..J100 |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-87208 |
K3VE,HCEJ..J10#,122 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-87207 |
HCEJ..J100 |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-87202 |
HCEJ..J100 |
1 | ||
| 28176 - SCREW, STARTER | ||||
| 28176-87201 |
HCEJ..J100 |
2 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-87505 |
HCEJ..J100 |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28185-87201 |
HCEJ..J100 |
1 | ||
| 28256 - GEAR, STARTER INTERNAL | ||||
| 28184-87201 |
HCEJ..J100 |
1 | ||
| Common parts | ||||
| 28272-87801 | ||||
| 28273-87501 | ||||
| 28273-87502 | ||||
| 28274-87503 | ||||
| 90041-79109 | ||||
| 90096-90030 | ||||
| 90099-01538 | ||||
| 90099-01539 | ||||
| 90099-01542 | ||||
| 91612-61040 | ||||
| 91612-61060 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
