J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0005)

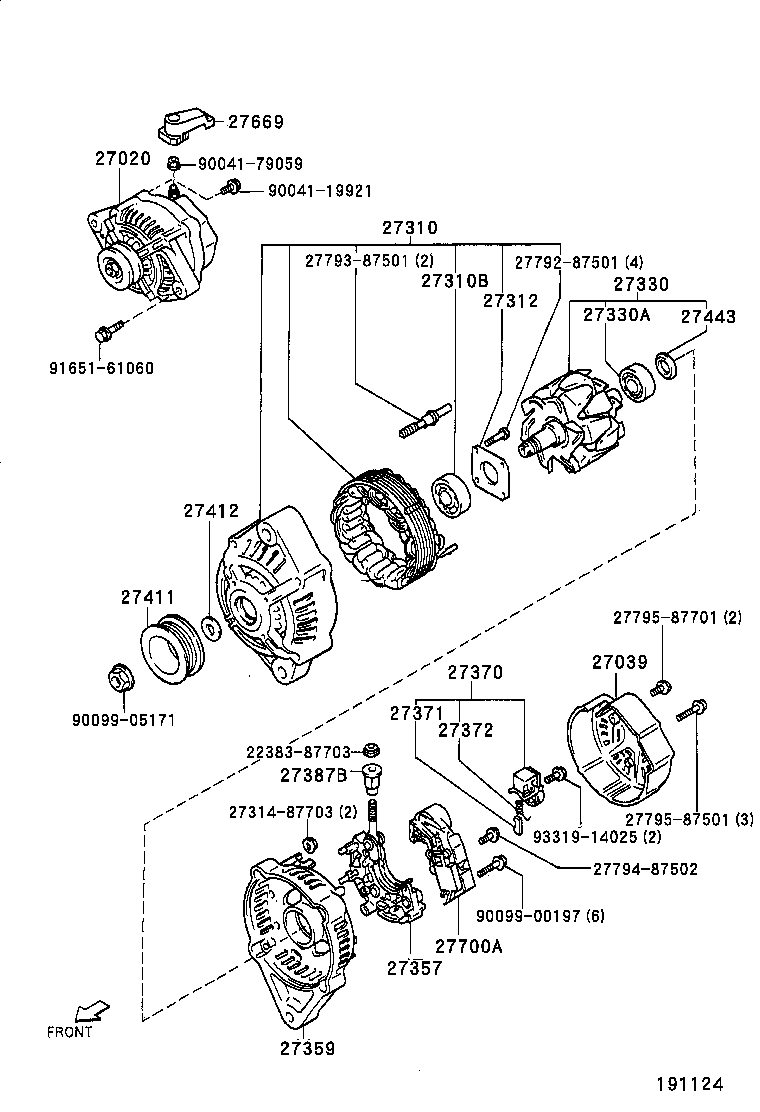

Click highlighted areas on diagram

diagram 2238387703 27020 27039 27310 27310B 27312 2731487703 27330 27330A 27357 27359 27370 27371 27372 27387B 27411 27412 27443 27669 27700A 2779287501 2779387501 2779487502 2779587501 2779587701 9004119921 9004179059 9009900197 9009905171 9165161060 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-87403

HCEJ..J100..4AT

 1
27039 - COVER, ALTERNATOR REAR END
27039-87703

HCEJ..J100

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-87403

HCEJ..J100..4AT

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
27791-87702

HCEJ..J100

 1
27312 - PLATE, RETAINER
27312-87705

HCEJ..J100

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-87209

HCEJ..J100..4AT

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
27791-87701

HCEJ..J100

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-87207

HCEJ..J100..4AT

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-87401

HCEJ..J100

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-87708

K3VE,HCEJ..J10#,122

 1
27371 - BRUSH, ALTERNATOR
27371-87501

K3VE,HCEJ..J10#,122

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-87501

K3VE,HCEJ..J10#,122

 2
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-87204

HCEJ..J100

 1
27411 - PULLEY, ALTERNATOR
27411-87216

HCEJ..J100

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-87209

HCEJ..J100

 1
27443 - COVER, ALTERNATOR BEARING
27443-87501

K3VE,HCEJ..J10#,122

 1
27669 - CAP, GENERATOR
27669-87201

K3VE,HCEJ..J10#,122

 1
27700A - REGULATOR ASSY, GENERATOR
27700-87402

HCEJ..J100

 1
Common parts
22383-87703
27314-87703
27792-87501
27793-87501
27794-87502
27795-87501
27795-87701
90041-19921
90041-79059
90099-00197
90099-05171
91651-61060
93319-14025
