J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905- )HCEJ

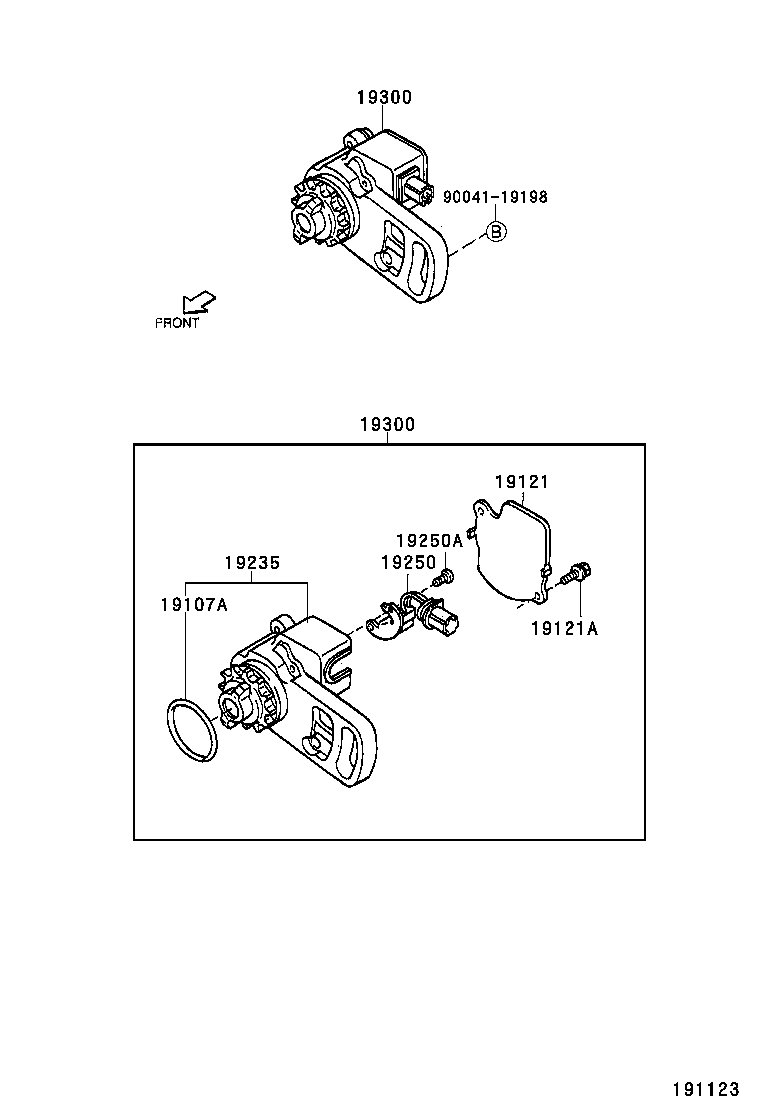

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 19194-87102 |
HCEJ..J100 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-87216 |
HCEJ..J100 |
1 | ||
| 19121A - BOLT, W/WASHER(FOR DUST PROOF COVER) | ||||
| 19232-87205 |
HCEJ..J100 |
2 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-87120 |
HCEJ..J100 |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19250-87101 |
HCEJ..J100 |
1 | ||
| 19250A - SCREW(FOR SIGNAL GENERATOR) | ||||
| 19191-87701 |
HCEJ..J100 |
2 | ||
| 19300 - SENSOR ASSY, CAM POSITION | ||||
| 19300-87101 |
HCEJ..J100 |
1 | ||
| 19300 - SENSOR ASSY, CAM POSITION | ||||
| 19300-87101 |
HCEJ..J100 |
1 | ||
| Common parts | ||||
| 90041-19198 | ||||
