J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0005)

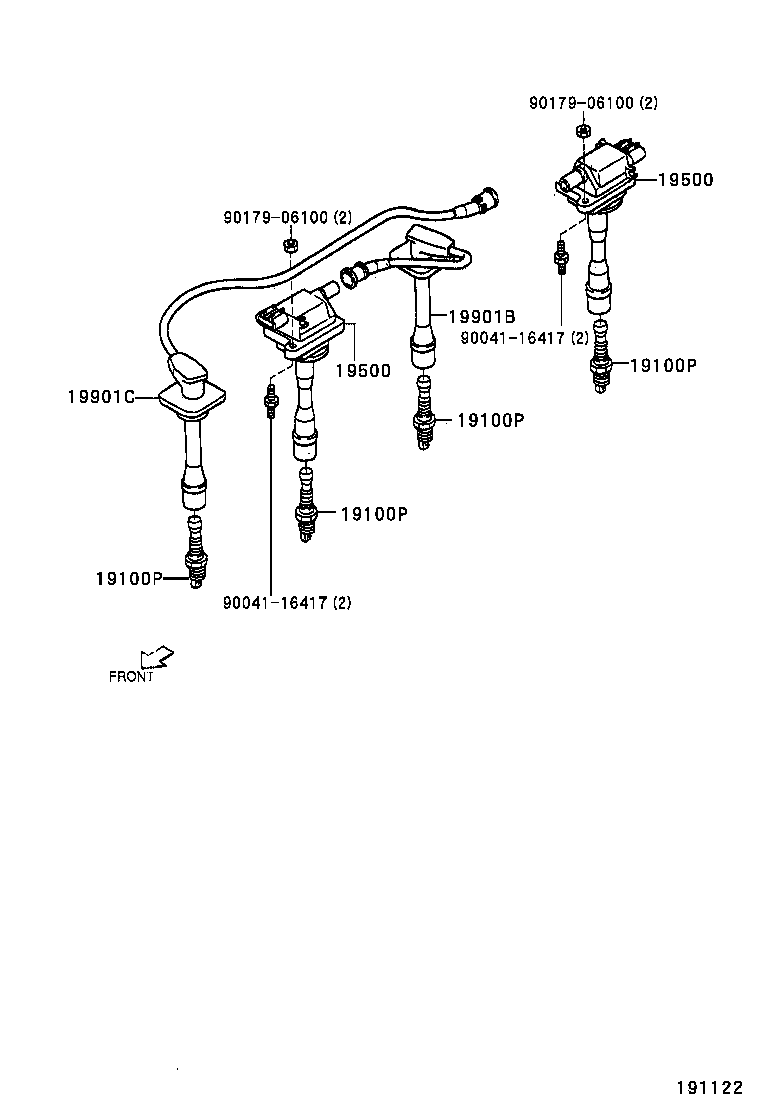

Click highlighted areas on diagram

diagram 19100P 19100P 19100P 19100P 19500 19500 19901B 19901C 9004116417 9004116417 9017906100 9017906100
Part # Description Qty Price
19100P - PLUG, SPARK
90048-51136

HCEJ..J100

DENSO K20TNR−S

 4
19100P - PLUG, SPARK
90048-51136

HCEJ..J100

DENSO K20TNR−S

 4
19100P - PLUG, SPARK
90048-51136

HCEJ..J100

DENSO K20TNR−S

 4
19100P - PLUG, SPARK
90048-51136

HCEJ..J100

DENSO K20TNR−S

 4
19500 - COIL ASSY, IGNITION
19500-87101

HCEJ..J100

 2
19500 - COIL ASSY, IGNITION
19500-87101

HCEJ..J100

 2
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90048-58273

HCEJ..J100

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90048-58274

HCEJ..J100

 1
Common parts
90041-16417
90179-06100
