J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905-0005)

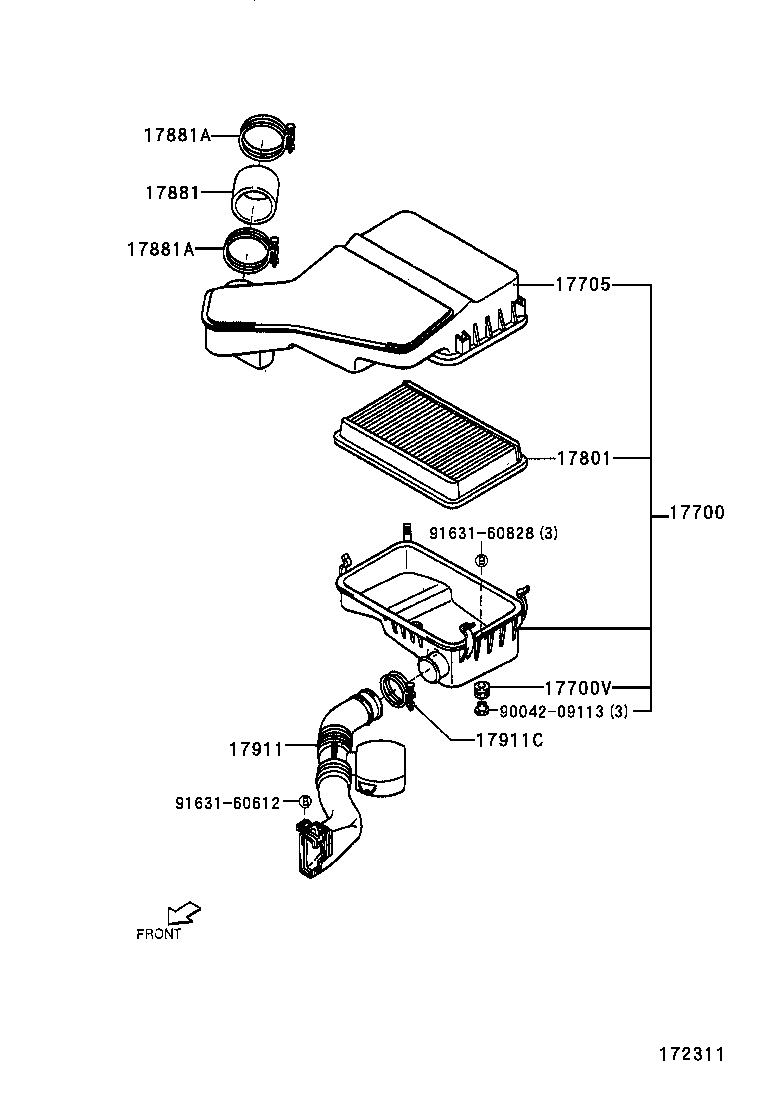

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-87401 |
HCEJ..J100 |
1 | ||
| 17700V - BUSH(FOR AIR CLEANER) | ||||
| 90044-80489 |
HCEJ..J100 |
3 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-87401 |
HCEJ..J100 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-87401 |
HCEJ..J100 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-87723 |
HCEJ..J100 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90044-67356 |
HCEJ..J100 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90044-67356 |
HCEJ..J100 |
2 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 17963-87401 |
HCEJ..J100 |
1 | ||
| 17911C - CLAMP, COOL AIR INTAKE DUCT, NO.1 | ||||
| 96111-10690 |
HCEJ..J100 |
1 | ||
| Common parts | ||||
| 90042-09113 | ||||
| 91631-60612 | ||||
| 91631-60828 | ||||
