J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0005)

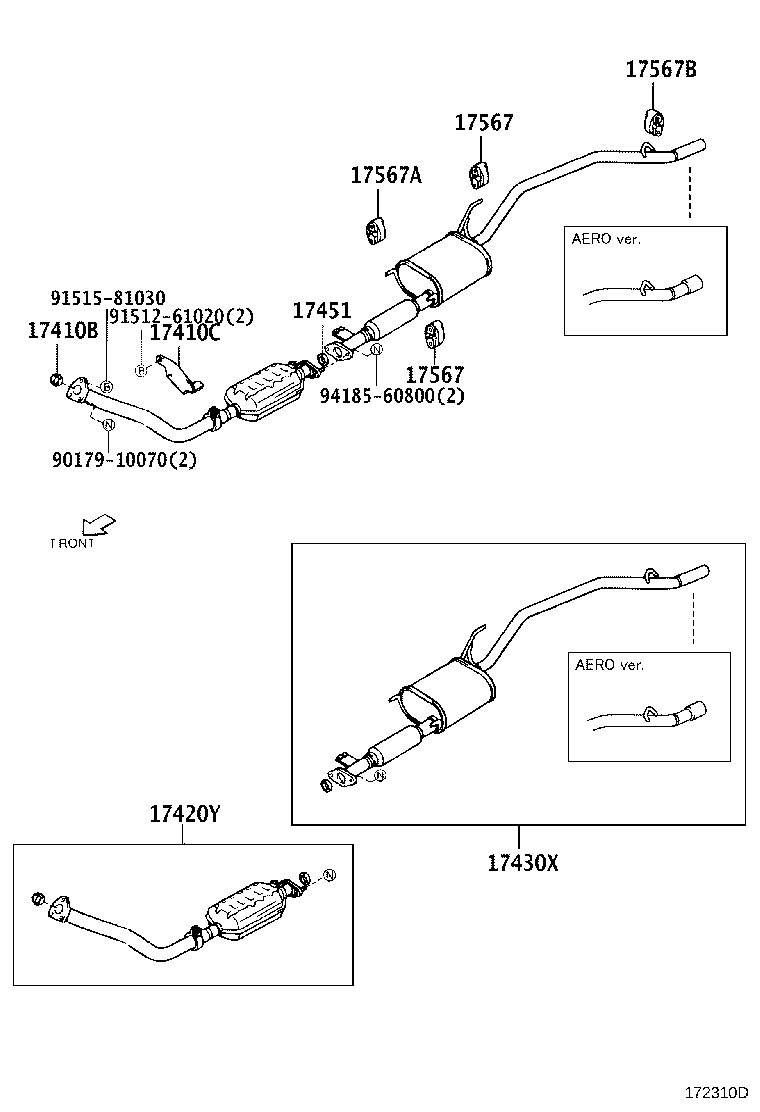

Click highlighted areas on diagram

HCEJ

diagram 17410B 17410C 17420Y 17430X 17451 17567 17567 17567A 17567B 9017910070 9151261020 9151581030 9418560800
Part # Description Qty Price
17410B - GASKET, EXHAUST PIPE
17451-87512

HCEJ..J100

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-87401

HCEJ..J100

 1
17420Y - PIPE SET, EXHAUST, FRONT
17401-B9030

HCEJ..J100

 1
17401-B9030

HCEJ..J100

 1
17430X - PIPE SET, EXHAUST TAIL
17405-B9010

HCEJ..J100

 1
17451 - GASKET, EXHAUST PIPE
17451-87512

K3VE,HCEJ..J10#,122

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-87210

K3VE,HCEJ..J10#,122

 2
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-87210

K3VE,HCEJ..J10#,122

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-87215

HCEJ..J100

 1
17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3
17553-87603

HCEJ..J100

 1
Common parts
90179-10070
91512-61020
91515-81030
94185-60800
