J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905-0005)

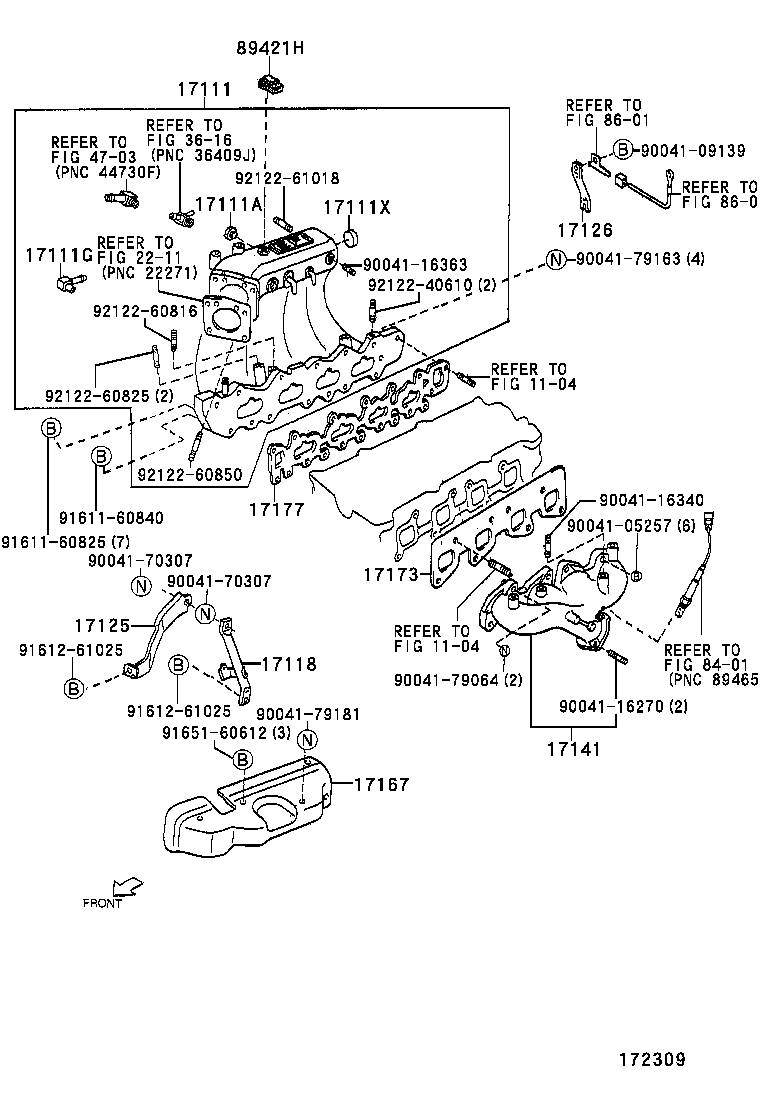

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-87126 |
HCEJ..J100 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90043-45034 |
HCEJ..J100 |
1 | ||
| 17111G - UNION(FOR INTAKE MANIFOLD WATER) | ||||
| 90044-04086 |
HCEJ..J100 |
1 | ||
| 17111X - PLUG, TIGHT NO.1(FOR INTAKE MANIFOLD) | ||||
| 96411-43000 |
HCEJ..J100 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17012-87401 |
HCEJ..J100 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17128-87401 |
HCEJ..J100 |
1 | ||
| 17126 - STAY, SURGE TANK, NO.2 | ||||
| 17128-87101 |
HCEJ..J100 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17140-87129 |
HCEJ..J100 |
1 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17897-87608 |
HCEJ..J100 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-87105 |
HCEJ..J100 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-87501 |
HCEJ..J100 |
1 | ||
| 89421H - SENSOR, VACUUM | ||||
| 89421-87104 |
J100 |
1 | ||
| Common parts | ||||
| 90041-05257 | ||||
| 90041-09139 | ||||
| 90041-16270 | ||||
| 90041-16340 | ||||
| 90041-16363 | ||||
| 90041-70307 | ||||
| 90041-79064 | ||||
| 90041-79163 | ||||
| 90041-79181 | ||||
| 91611-60825 | ||||
| 91611-60840 | ||||
| 91612-61025 | ||||
| 91651-60612 | ||||
| 92122-40610 | ||||
| 92122-60816 | ||||
| 92122-60825 | ||||
| 92122-60850 | ||||
| 92122-61018 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 2211 | ||||
| 3616 | ||||
| 4703 | ||||
| 8401 | ||||
| 8601 | ||||
