J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905-0005)

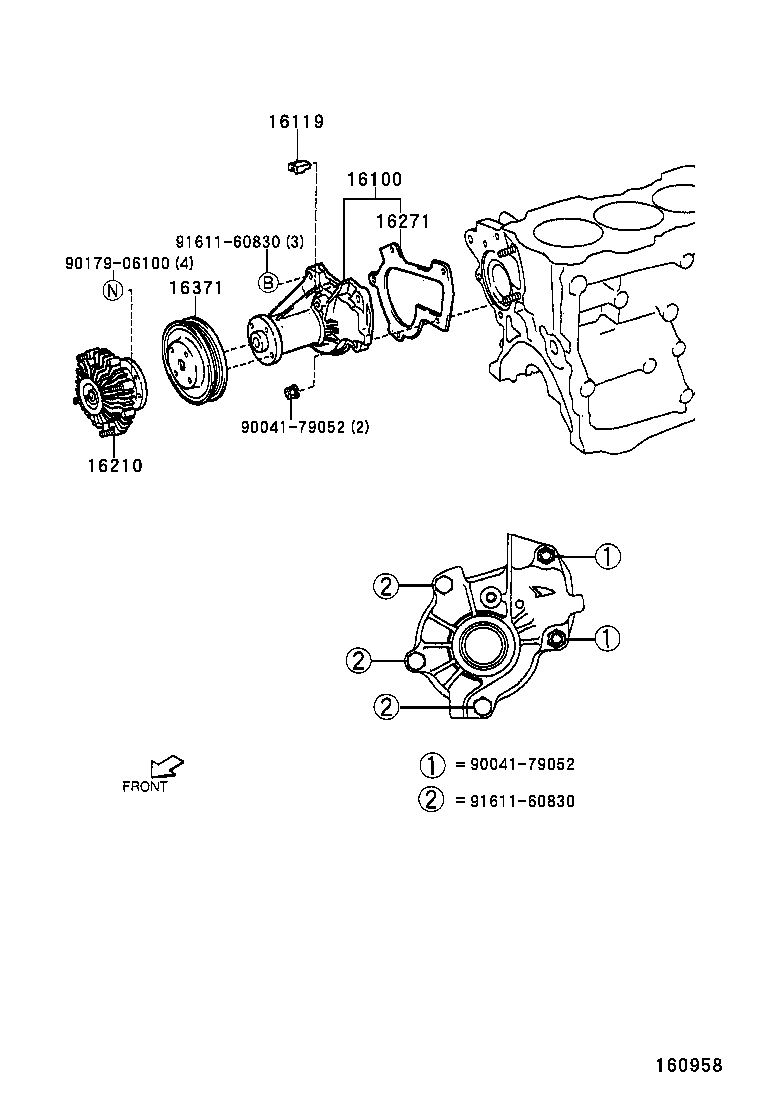

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-87109 |
HCEJ..J100 |
1 | ||
| 16119 - GASKET, WATER PUMP BODY | ||||
| 90043-03084 |
HCEJ..J100 |
1 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-87106 |
HCEJ..J100 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-87104 |
HCEJ..J100 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-87111 |
HCEJ..J100 |
1 | ||
| Common parts | ||||
| 90041-79052 | ||||
| 90179-06100 | ||||
| 91611-60830 | ||||
