J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905-0005)

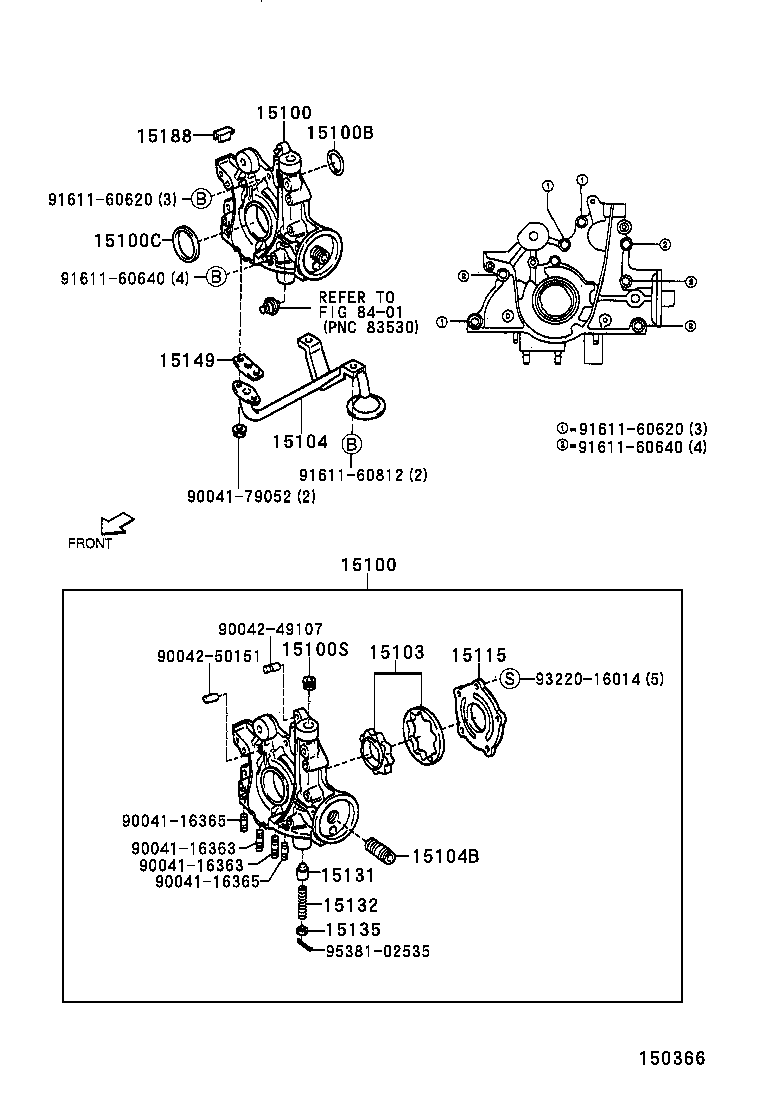

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-87109 |
HCEJ..J100 |
1 | ||
| 15100 - PUMP ASSY, OIL | ||||
| 15100-87109 |
HCEJ..J100 |
1 | ||
| 15100B - RING, O(FOR OIL PUMP) | ||||
| 90043-01150 |
HCEJ..J100 |
1 | ||
| 15100C - SEAL(FOR OIL PUMP) | ||||
| 90043-11231 |
HCEJ..J100 |
1 | ||
| 15100S - PLUG, TAPER SCREW(FOR OIL PUMP) | ||||
| 90043-44012 |
HCEJ..J100 |
1 | ||
| 15103 - GEAR SET, OIL PUMP | ||||
| 15102-87105 |
HCEJ..J100 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15140-87107 |
HCEJ..J100 |
1 | ||
| 15104B - UNION(FOR OIL STRAINER) | ||||
| 90044-04147 |
HCEJ..J100 |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15115-87104 |
HCEJ..J100 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-87103 |
HCEJ..J100 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 90045-01449 |
HCEJ..J100 |
1 | ||
| 15135 - RETAINER, OIL PUMP RELIEF VALVE | ||||
| 15135-87101 |
HCEJ..J100 |
1 | ||
| 15149 - GASKET, OIL STRAINER FLANGE | ||||
| 15149-87103 |
HCEJ..J100 |
1 | ||
| 15188 - GASKET, OIL PUMP | ||||
| 90043-03085 |
HCEJ..J100 |
1 | ||
| Common parts | ||||
| 90041-16363 | ||||
| 90041-16365 | ||||
| 90041-79052 | ||||
| 90042-49107 | ||||
| 90042-50151 | ||||
| 91611-60620 | ||||
| 91611-60640 | ||||
| 91611-60812 | ||||
| 93220-16014 | ||||
| 95381-02535 | ||||
| Linked diagrams | ||||
| 8401 | ||||
