J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)

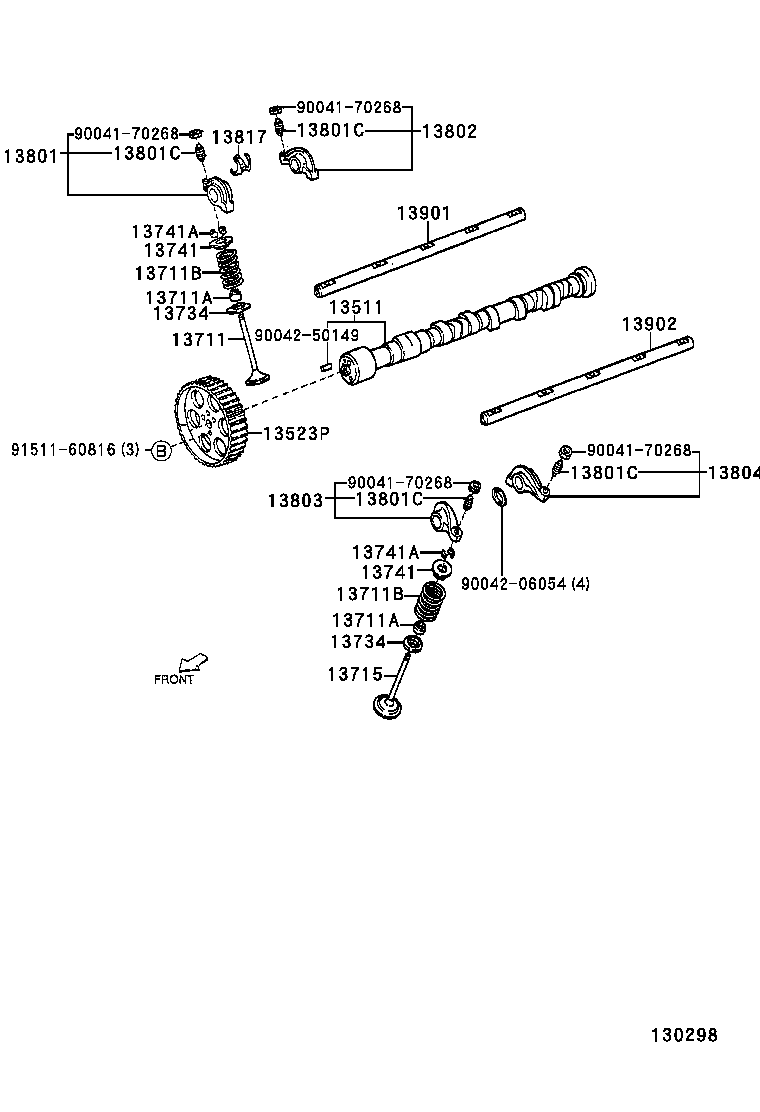

ILLUST NO. 1 OF 2(9905-0005)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13511 - CAMSHAFT | ||||
| 13501-87107 |
HCEJ..J100 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13592-87104 |
HCEJ..J100 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-87103 |
HCEJ..J100 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90048-12011 |
HCEJ..J100 |
16 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90048-12011 |
HCEJ..J100 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90045-01573 |
HCEJ..J100 ｵﾚﾝｼﾞ |
16 | ||
| 90045-01544 |
HCEJ..J100 ﾋﾟﾝｸ |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90045-01573 |
HCEJ..J100 ｵﾚﾝｼﾞ |
16 | ||
| 90045-01544 |
HCEJ..J100 ﾋﾟﾝｸ |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-87105 |
HCEJ..J100 |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-87102 |
HCEJ..J100 |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-87102 |
HCEJ..J100 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-87102 |
HCEJ..J100 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-87102 |
HCEJ..J100 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90048-13008 |
HCEJ..J100 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90048-13008 |
HCEJ..J100 |
32 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-87101 |
HCEJ..J100 |
4 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90048-15005 |
HCEJ..J100 |
32 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90048-15005 |
HCEJ..J100 |
32 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90048-15005 |
HCEJ..J100 |
32 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90048-15005 |
HCEJ..J100 |
32 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13802-87101 |
HCEJ..J100 |
4 | ||
| 13803 - ARM SUB-ASSY, VALVE ROCKER, NO.3 | ||||
| 13803-87101 |
HCEJ..J100 |
4 | ||
| 13804 - ARM SUB-ASSY, VALYE ROCKER, NO.4 | ||||
| 13804-87101 |
HCEJ..J100 |
4 | ||
| 13817 - SPACER, VALVE ROCKER ARM | ||||
| 13817-87101 |
HCEJ..J100 |
4 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-87106 |
HCEJ..J100 |
1 | ||
| 13902 - SHAFT SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13902-87101 |
HCEJ..J100 |
1 | ||
| Common parts | ||||
| 90041-70268 | ||||
| 90042-06054 | ||||
| 90042-50149 | ||||
| 91511-60816 | ||||

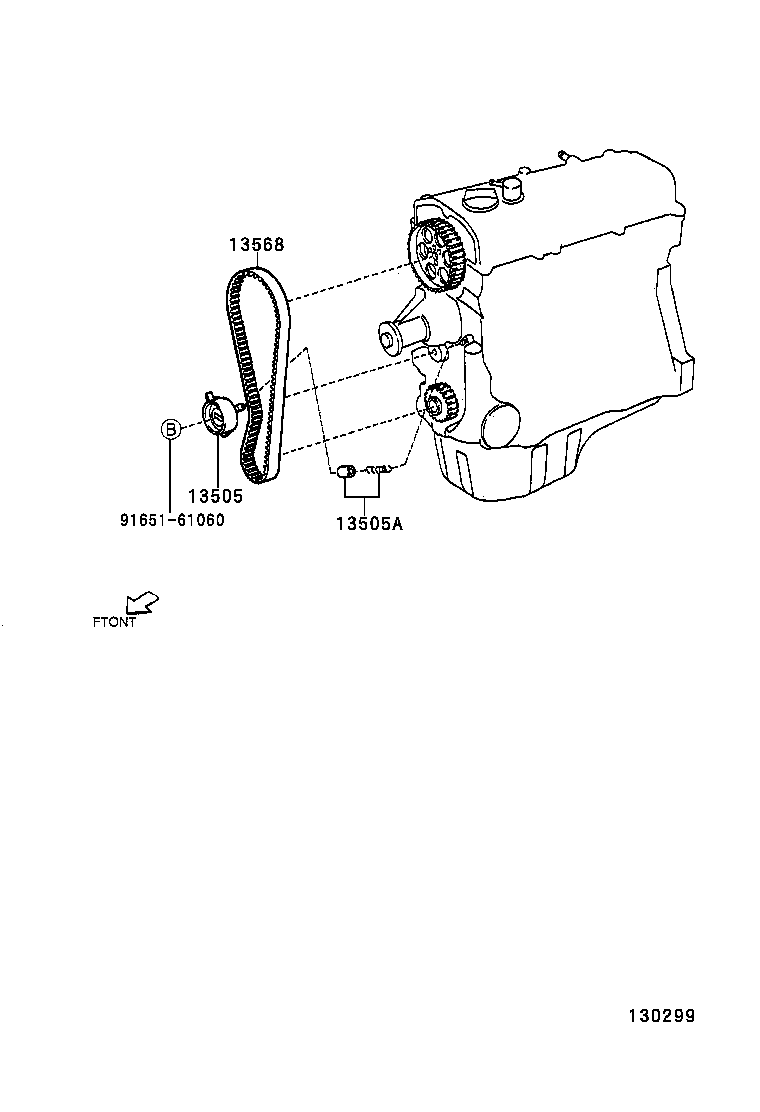

ILLUST NO. 2 OF 2(9905-0005)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-87102 |
HCEJ..J100 |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90045-07001 |
HCEJ..J100 |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-87181 |
HCEJ..J100 UNITTA |
1 | ||
| 13568-87182 |
HCEJ..J100 TSUBAKIMOTO |
1 | ||
| Common parts | ||||
| 91651-61060 | ||||
