J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0005)

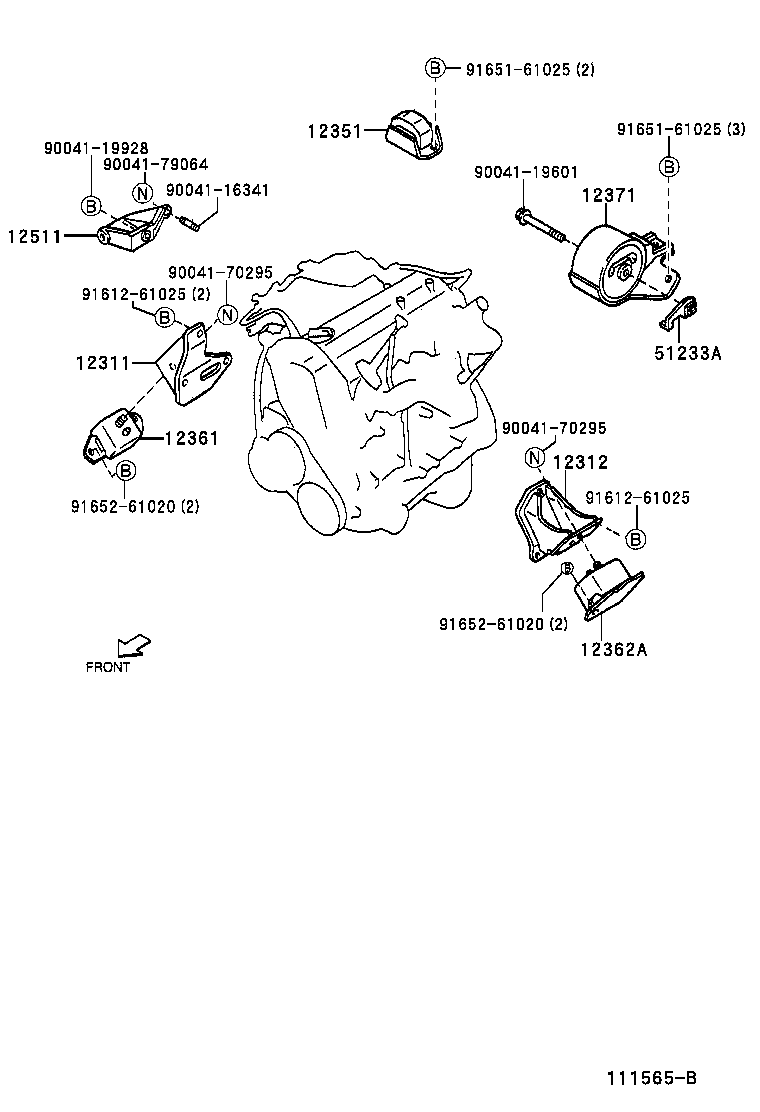

Click highlighted areas on diagram

diagram 12311 12312 12351 12361 12362A 12371 12511 51233A 9004116341 9004119601 9004119928 9004170295 9004170295 9004179064 9161261025 9161261025 9165161025 9165161025 9165261020 9165261020
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-87401

HCEJ..J100

 1
12312 - BRACKET, ENGINE MOUNTING, FRONT NO.2
12312-87401

HCEJ..J100

 1
12351 - DAMPER, ENGINE MOUNTING
12351-87401

K3VE,HCEJ..J10#,122

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-87401

HCEJ..J100

 1
12362A - INSULATOR, ENGINE MOUNTING, FRONT LH
12362-87401

HCEJ..J100

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12306-87401

HCEJ..J100

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-87113

HCEJ..J100

 1
51233A - PLATE, ENGINE MOUNTING, REAR
51233-87401

J10#,122

 1
Common parts
90041-16341
90041-19601
90041-19928
90041-70295
90041-79064
91612-61025
91651-61025
91652-61020
