J100E-GPDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0005)

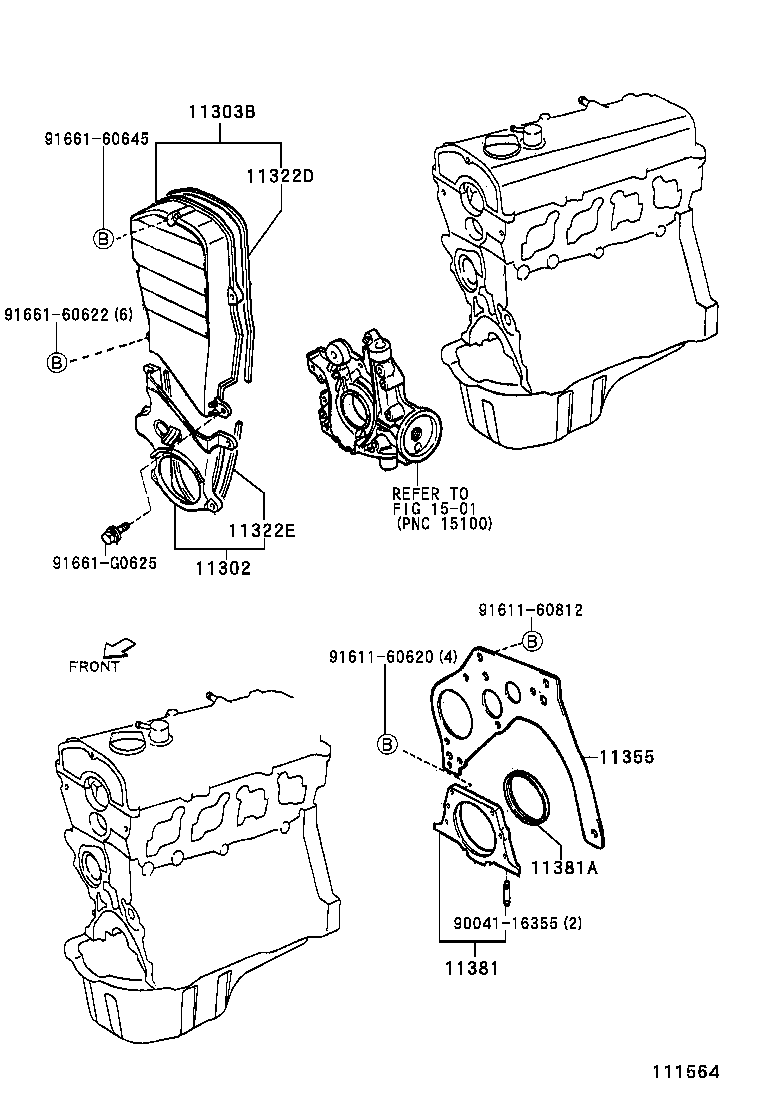

Click highlighted areas on diagram

diagram 11302 11303B 11322D 11322E 11355 11381 11381A 1501 9004116355 9161160620 9161160812 9166160622 9166160645 91661G0625
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-87103

HCEJ..J100

 1
11303B - COVER SUB-ASSY, TIMING BELT, NO.2
11303-87101

HCEJ..J100

 1
11322D - GASKET, TIMING BELT COVER, NO.1
90043-03083

HCEJ..J100

 1
11322E - GASKET, TIMING BELT COVER, NO.2
90043-03082

HCEJ..J100

 1
11355 - PLATE, REAR END
11355-87111

HCEJ..J100..4AT

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11309-87102

HCEJ..J100

 1
11381A - SEAL, ENGINE REAR OIL
90043-11230

HCEJ..J100

 1
Common parts
90041-16355
91611-60620
91611-60812
91661-60622
91661-60645
91661-G0625
Linked diagrams
1501
