J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905-0005)

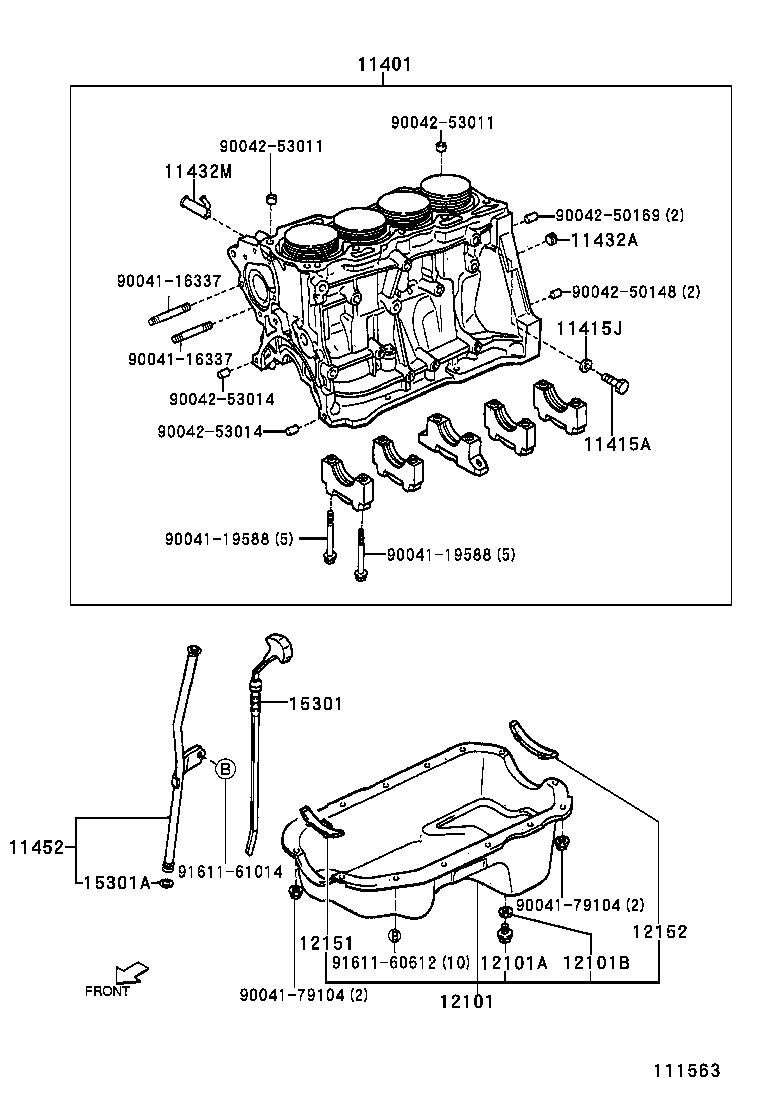

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-87131 |
HCEJ..J100 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90043-41041 |
HCEJ..J100 |
1 | ||
| 11415J - GASKET(FOR DRAIN COCK) | ||||
| 90044-30263 |
HCEJ..J100 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90043-44013 |
HCEJ..J100 |
1 | ||
| 11432M - UNION(FOR CYLINDER BLOCK) | ||||
| 90044-06006 |
HCEJ..J100 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-87102 |
HCEJ..J100 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-87109 |
HCEJ..J100 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90043-41041 |
K3VE,HCEJ..J10#,122 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90044-30281 |
K3VE,HCEJ..J10#,122 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-87103 |
HCEJ..J100 |
1 | ||
| 12152 - GASKET, OIL PAN, NO.2 | ||||
| 12152-87102 |
HCEJ..J100 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15361-87112 |
HCEJ..J100 |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96721-19009 |
K3VE,HCEJ..J10#,122 |
1 | ||
| Common parts | ||||
| 90041-16337 | ||||
| 90041-19588 | ||||
| 90041-79104 | ||||
| 90042-50148 | ||||
| 90042-50169 | ||||
| 90042-53011 | ||||
| 90042-53014 | ||||
| 91611-60612 | ||||
| 91611-61014 | ||||
