J100E-GPDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
4AT ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905-0005)

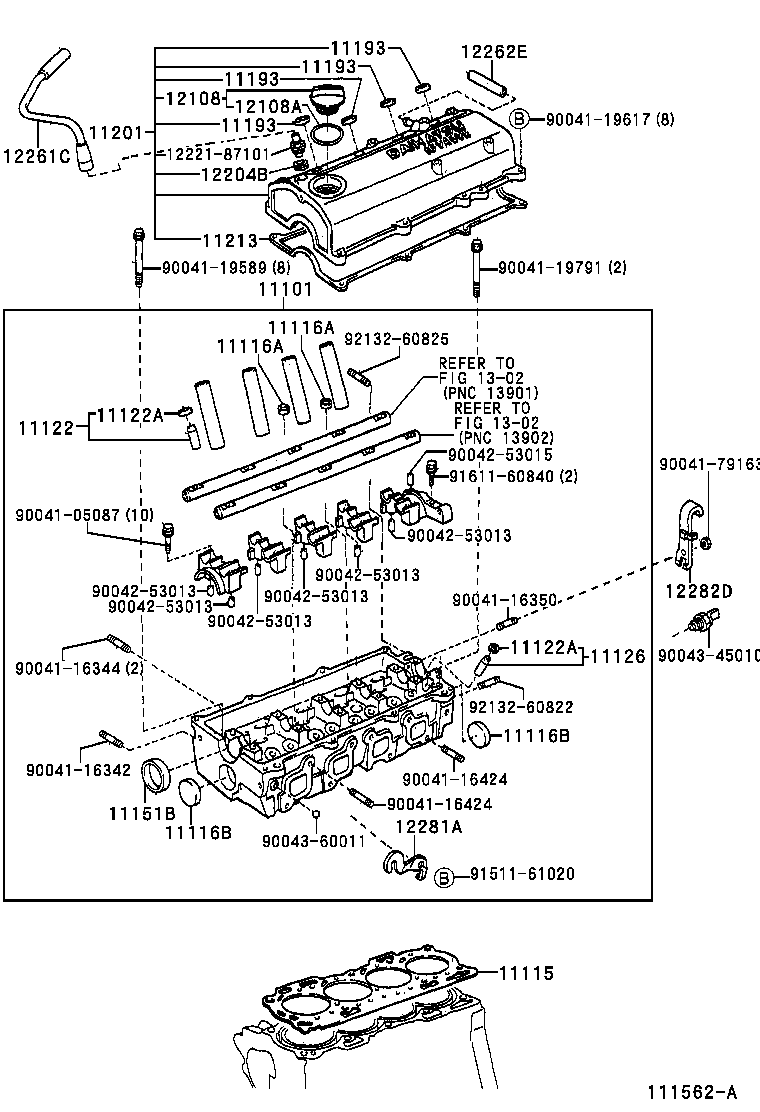

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-87117 |
HCEJ..J100 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-87105 |
HCEJ..J100 厚さ=1.30 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-12200 |
HCEJ..J100 |
2 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-12200 |
HCEJ..J100 |
2 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-44000 |
HCEJ..J100 |
2 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-44000 |
HCEJ..J100 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11124-87101 |
HCEJ..J100 O/S 0.03 |
8 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90045-20089 |
HCEJ..J100 |
8 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90045-20089 |
HCEJ..J100 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11128-87101 |
HCEJ..J100 O/S 0.03 |
8 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90043-11229 |
HCEJ..J100 |
1 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 90044-80402 |
HCEJ..J100 |
4 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 90044-80402 |
HCEJ..J100 |
4 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 90044-80402 |
HCEJ..J100 |
4 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 90044-80402 |
HCEJ..J100 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-87121 |
HCEJ..J100 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-87103 |
HCEJ..J100 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-87103 |
HCEJ..J100 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-87101 |
HCEJ..J100 |
1 | ||
| 12204B - GROMMET(FOR VENTILATION SYSTEM) | ||||
| 90044-80534 |
HCEJ..J100 |
1 | ||
| 12261C - HOSE, VENTILATION | ||||
| 12261-87105 |
HCEJ..J100 |
1 | ||
| 12262E - HOSE, VENTILATION, NO.2 | ||||
| 90044-48138 |
HCEJ..J100 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-87109 |
HCEJ..J100 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-87106 |
HCEJ..J100 |
1 | ||
| Common parts | ||||
| 12221-87101 | ||||
| 90041-05087 | ||||
| 90041-16342 | ||||
| 90041-16344 | ||||
| 90041-16350 | ||||
| 90041-16424 | ||||
| 90041-19589 | ||||
| 90041-19617 | ||||
| 90041-19791 | ||||
| 90041-79163 | ||||
| 90042-53013 | ||||
| 90042-53015 | ||||
| 90043-45010 | ||||
| 90043-60011 | ||||
| 91511-61020 | ||||
| 91611-60840 | ||||
| 92132-60822 | ||||
| 92132-60825 | ||||
| Linked diagrams | ||||
| 1302 | ||||
