J100E-GMZE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9905- )

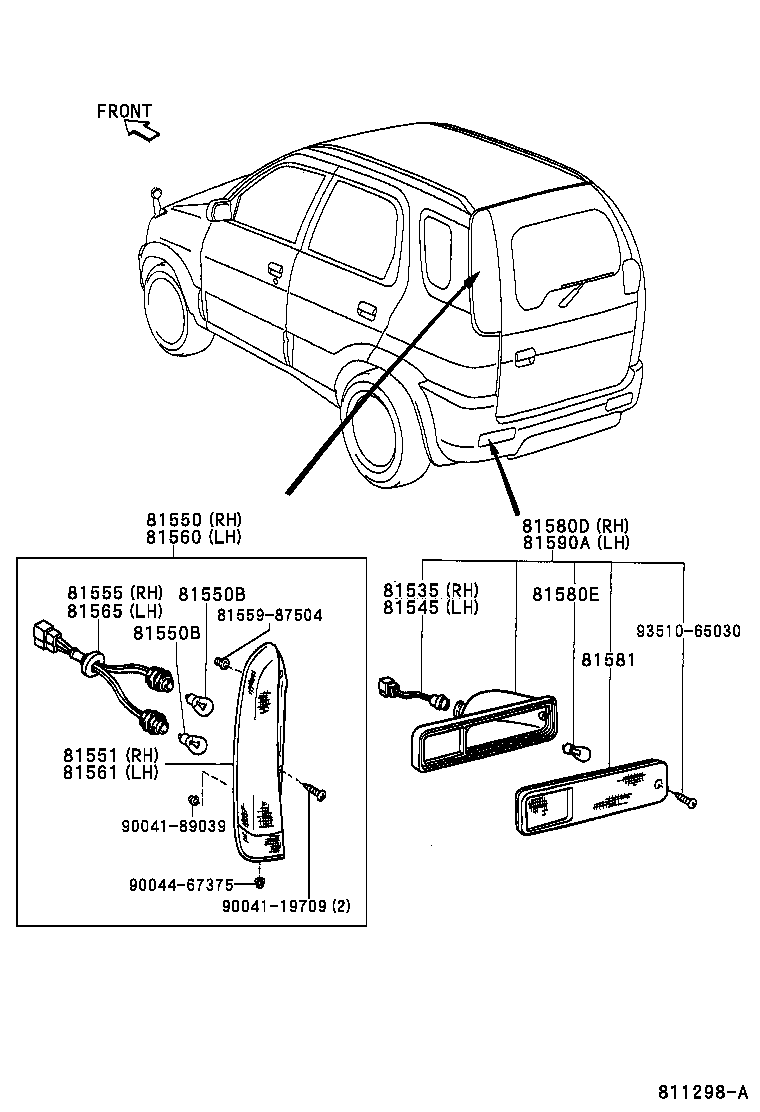

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81535 - SOCKET & WIRE, REAR TURN SIGNAL LAMP, RH | ||||
| 81565-87403 |
J10#,122 |
1 | ||
| 81545 - SOCKET & WIRE, REAR TURN SIGNAL LAMP, LH | ||||
| 81565-87403 |
J10#,122 |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-87404 |
J100 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
J100 12V 21W |
2 | ||
| 99132-21210 |
J10#,122 12V 21/5W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
J100 12V 21W |
2 | ||
| 99132-21210 |
J10#,122 12V 21/5W |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-87401 |
J100 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81565-87401 |
J100 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-87404 |
J100 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-87401 |
J100 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81566-87402 |
J100 |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81502-87401 |
J10#,122 |
1 | ||
| 81580E - BULB | ||||
| 99132-11210 |
J10#,122 12V 21W |
2 | ||
| 81581 - LENS, REAR LAMP | ||||
| 81671-87401 |
J10#,122 |
2 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81503-87401 |
J10#,122 |
1 | ||
| Common parts | ||||
| 81559-87504 | ||||
| 90041-19709 | ||||
| 90041-89039 | ||||
| 90044-67375 | ||||
| 93510-65030 | ||||
