J100E-GMZE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

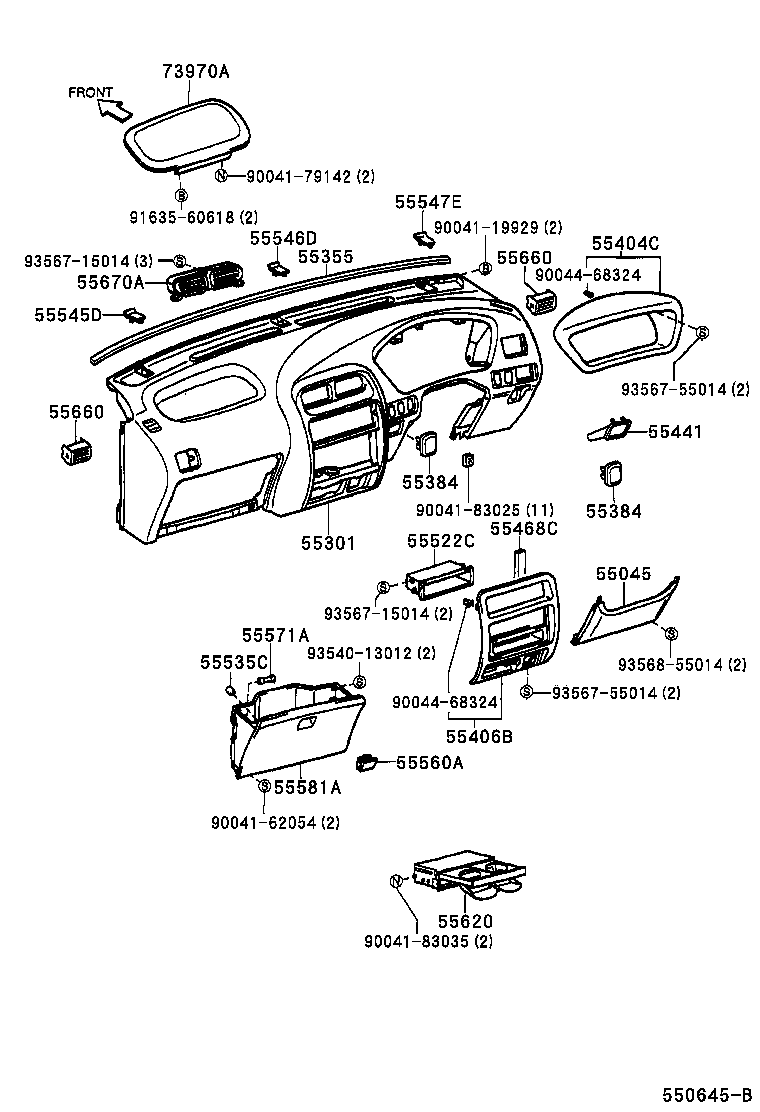

ILLUST NO. 1 OF 2(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-8740103 |
J100 GRAY,TRIMS |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-8740403 |
J100 GRAY,TRIMS |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-8740101 |
J10#,122..EFI BLACK,TRIMS |
1 | ||
| 55404-8740303 |
J100..Q ｴｱﾛ ﾊﾞ-ｼﾞﾖﾝ,METAL,TRIMS |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-8740101 |
J100 BLACK,TRIMS |
1 | ||
| 55406-8740403 |
J100..Q ｴｱﾛ ﾊﾞ-ｼﾞﾖﾝ,METAL,TRIMS |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-87401 |
J10#,122 |
2 | ||
| 55522C - COVER, RADIO RECEIVER OPENING | ||||
| 55522-87209 |
J10#,122 |
2 | ||
| 55535C - CUSHION, GLOVE COMPARTMENT DOOR | ||||
| 55535-87203 |
J10#,122 |
2 | ||
| 55545D - COVER, INSTORUMENT PANEL HOLE, NO.1 | ||||
| 55547-8740103 |
J100 GRAY,TRIMS |
1 | ||
| 55546D - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55546-8740103 |
J100 GRAY,TRIMS |
1 | ||
| 55547E - COVER, INSTRUMENT PANEL HOLE, NO.3 | ||||
| 55545-8740103 |
J100 GRAY,TRIMS |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-8770213 |
J100 GRAY,TRIMS |
1 | ||
| 55571A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55571-87101 |
J10#,122 |
1 | ||
| 55581A - COMPARTMENT, GLOVE | ||||
| 55581-8740103 |
J100 GRAY,TRIMS |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-87101 |
J10#,122 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55062-8720301 |
J10#,122 BLACK,TRIMS |
2 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55062-8720301 |
J10#,122 BLACK,TRIMS |
2 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-8740101 |
J10#,122 BLACK,TRIMS |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-8740103 |
J100 GRAY,TRIMS |
1 | ||
| Common parts | ||||
| 90041-19929 | ||||
| 90041-62054 | ||||
| 90041-79142 | ||||
| 90041-83025 | ||||
| 90041-83035 | ||||
| 90044-68324 | ||||
| 91635-60618 | ||||
| 93540-13012 | ||||
| 93567-15014 | ||||
| 93567-55014 | ||||
| 93568-55014 | ||||

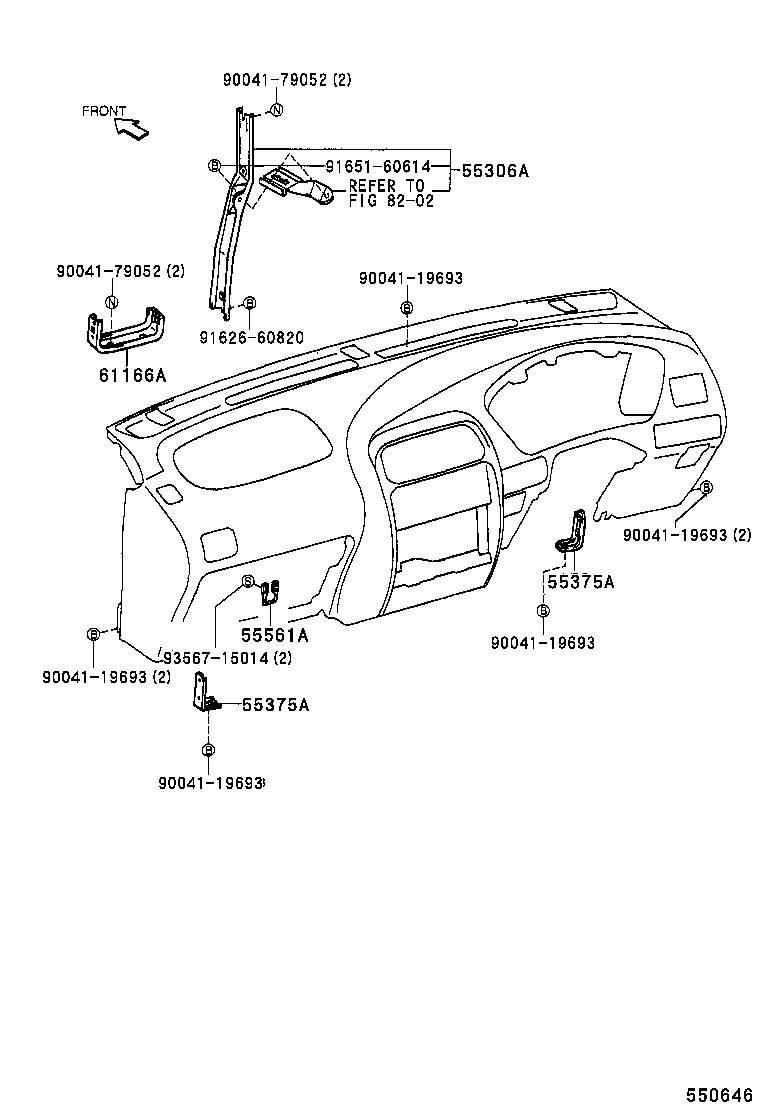

ILLUST NO. 2 OF 2(9905- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55037-87401 |
J10#,122 |
1 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55375-87401 |
J10#,122 |
2 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55375-87401 |
J10#,122 |
2 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-87401 |
J10#,122 |
1 | ||
| 61166A - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-87401 |
J10#,122 |
1 | ||
| Common parts | ||||
| 90041-19693 | ||||
| 90041-79052 | ||||
| 91626-60820 | ||||
| 91651-60614 | ||||
| 93567-15014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
