J100E-GMZE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9905- )

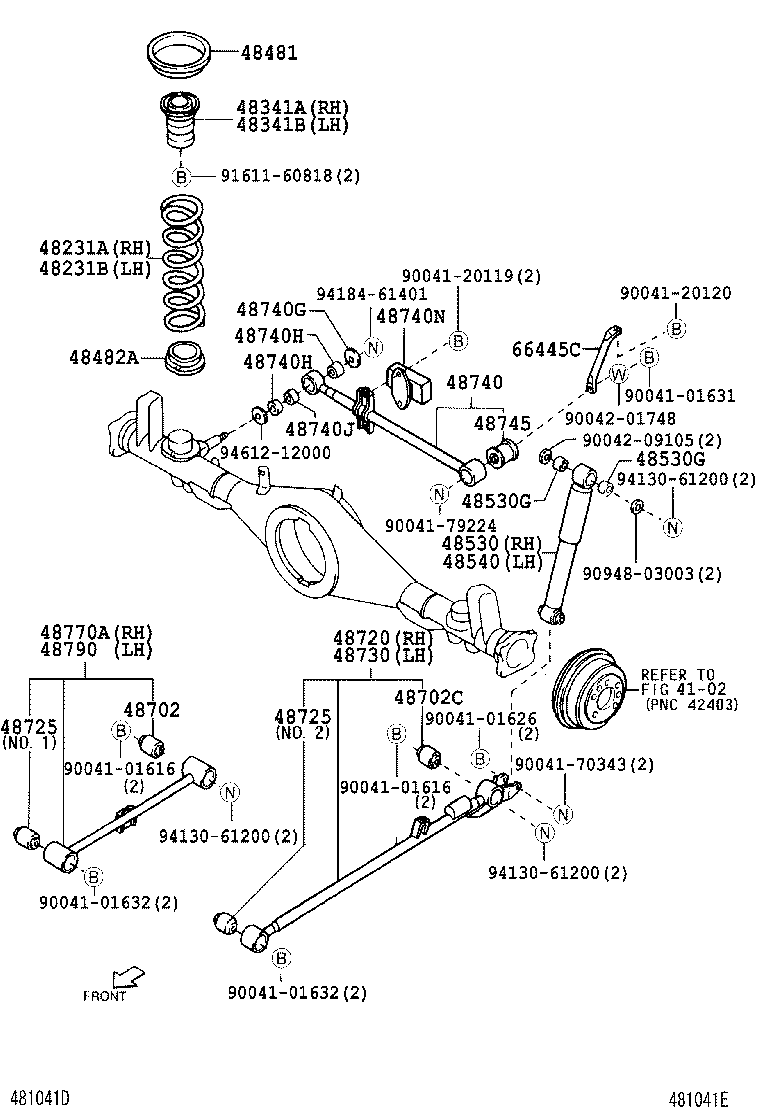

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-87405 |
J100 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-87405 |
J100 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-87401 |
J100 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-87401 |
J100 |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-87204 |
J100 |
2 | ||
| 48482A - SEAT, REAR SPRING, LOWER | ||||
| 48482-87501 |
J10#,122 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-87406 |
J100 |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 48537-87401 |
J10#,122 |
4 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 48537-87401 |
J10#,122 |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-87406 |
J100 |
1 | ||
| 48702 - BUSH SUB-ASSY, UPPER CONTROL ARM | ||||
| 48725-87403 |
J10#,122 |
2 | ||
| 48702C - BUSH SUB-ASSY, LOWER CONTROL ARM | ||||
| 48727-87404 |
J10#,122 |
2 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-87404 |
J10#,122 |
1 | ||
| 48725 - BUSH, LOWER CONTROL ARM | ||||
| 48725-87402 |
J10#,122 NO.1 |
2 | ||
| 48727-87403 |
J10#,122 NO.2 |
2 | ||
| 48725 - BUSH, LOWER CONTROL ARM | ||||
| 48725-87402 |
J10#,122 NO.1 |
2 | ||
| 48727-87403 |
J10#,122 NO.2 |
2 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-87404 |
J10#,122 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-87402 |
J100 |
1 | ||
| 48740G - WASHER, PLATE, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 48753-87401 |
J100 |
1 | ||
| 90042-01610 |
J10#,122 |
1 | ||
| 48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90043-85149 |
J10#,122 |
2 | ||
| 48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90043-85149 |
J10#,122 |
2 | ||
| 48740J - BUSH, NO.2(FOR REAR LATERAL CONTROL ROD) | ||||
| 90043-86103 |
J10#,122 |
1 | ||
| 48740N - DAMPER, REAR LATERAL CONTROL ROD | ||||
| 33183-87402 |
J10#,122 |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 48745-87602 |
J10#,122 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48710-87402 |
J10#,122 |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48770-87402 |
J10#,122 |
1 | ||
| 66445C - BRACE, REAR LATERAL CONTROL ROD | ||||
| 66445-87401 |
J10#,122 |
1 | ||
| Common parts | ||||
| 90041-01616 | ||||
| 90041-01626 | ||||
| 90041-01631 | ||||
| 90041-01632 | ||||
| 90041-20119 | ||||
| 90041-20120 | ||||
| 90041-70343 | ||||
| 90041-79224 | ||||
| 90042-01748 | ||||
| 90042-09105 | ||||
| 90948-03003 | ||||
| 91611-60818 | ||||
| 94130-61200 | ||||
| 94184-61401 | ||||
| 94612-12000 | ||||
| Linked diagrams | ||||
| 4102 | ||||
