J100E-GMZE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9905- )

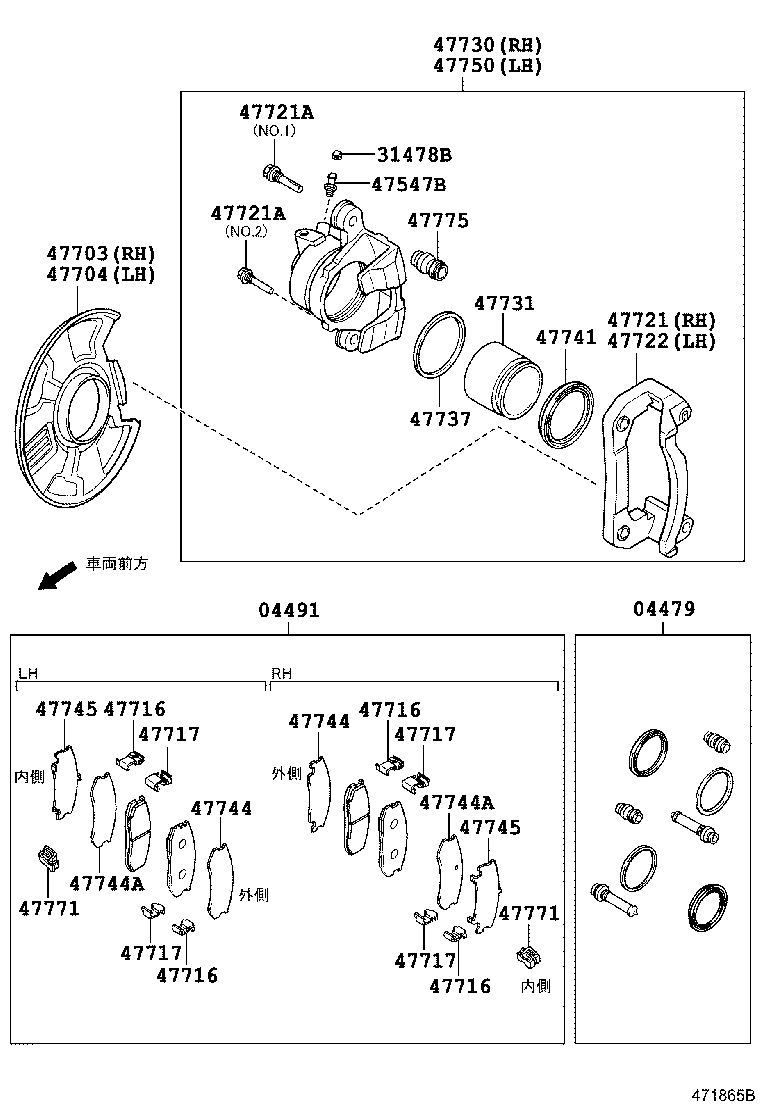

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-87401 |
J10#,122 |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-87401 |
J10#,122 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 47548-87501 |
J10#,122 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-87505 |
J10#,122 |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47781-87401 |
J10#,122 |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47781-87401 |
J10#,122 |
1 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47738-87401 |
J10#,122 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47738-87401 |
J10#,122 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47738-87401 |
J10#,122 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47738-87401 |
J10#,122 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47736-87401 |
J10#,122 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47736-87401 |
J10#,122 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47736-87401 |
J10#,122 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47736-87401 |
J10#,122 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-87401 |
J10#,122 |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 47715-87503 |
J10#,122 NO.1 |
2 | ||
| 47715-87504 |
J10#,122 NO.2 |
2 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 47715-87503 |
J10#,122 NO.1 |
2 | ||
| 47715-87504 |
J10#,122 NO.2 |
2 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-87401 |
J10#,122 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-87401 |
J10#,122 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-87401 |
J10#,122 |
2 | ||
| 47737 - SEAL, FRONT DISC BRAKE CYLINDER PISTON | ||||
| 47737-87401 |
J10#,122 |
2 | ||
| 47741 - BOOT, FRONT DISC BRAKE CYLINDER | ||||
| 47741-87401 |
J10#,122 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47742-87401 |
J10#,122 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47742-87401 |
J10#,122 |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47745-87401 |
J10#,122 |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47745-87401 |
J10#,122 |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47744-87401 |
J10#,122 |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47744-87401 |
J10#,122 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-87401 |
J10#,122 |
1 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-87401 |
J10#,122 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-87401 |
J10#,122 |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-87401 |
J10#,122 |
2 | ||
