J100E-GMZE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9905-0005)HCEJ..5F

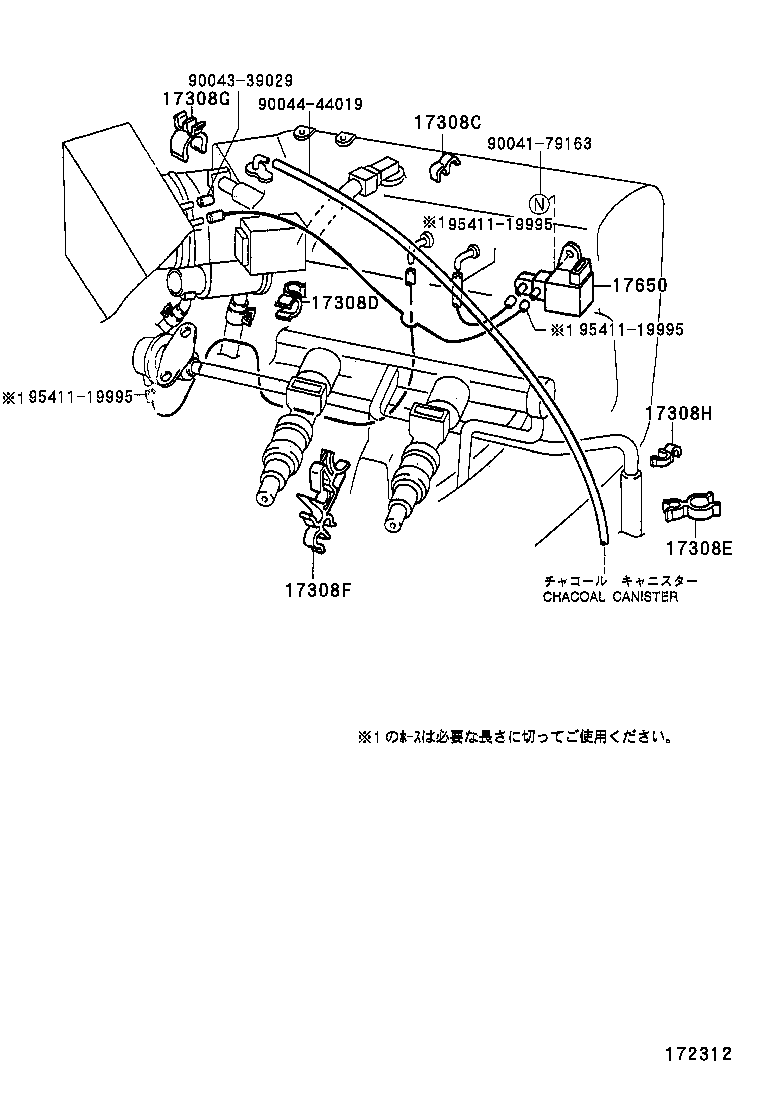

Click highlighted areas on diagram

diagram 17308C 17308D 17308E 17308F 17308G 17308H 17650 9004179163 9004339029 9004444019 9541119995 9541119995 9541119995
Part # Description Qty Price
17308C - CLAMP(FOR VACUUM HOSE)
90044-64108

HCEJ..J100..5F

 1
17308D - CLAMP, NO.2(FOR VACUUM HOSE)
90044-64259

HCEJ..J100

 1
17308E - CLAMP, NO.3(FOR VACUUM HOSE)
90044-64184

HCEJ..J100

 1
17308F - CLAMP, NO.4(FOR VACUUM HOSE)
90044-64373

HCEJ..J100

 1
17308G - CLAMP, NO.5(FOR VACUUM HOSE)
90044-64257

HCEJ..J100..5F

 1
17308H - CLAMP, NO.6(FOR VACUUM HOSE)
90044-64083

HCEJ..J100

 1
17650 - VALVE ASSY, VACUUM SWITCHING
17650-87109

HCEJ..J100..5F

 1
Common parts
90041-79163
90043-39029
90044-44019
95411-19995
