J100E-GMZE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9905-0005)

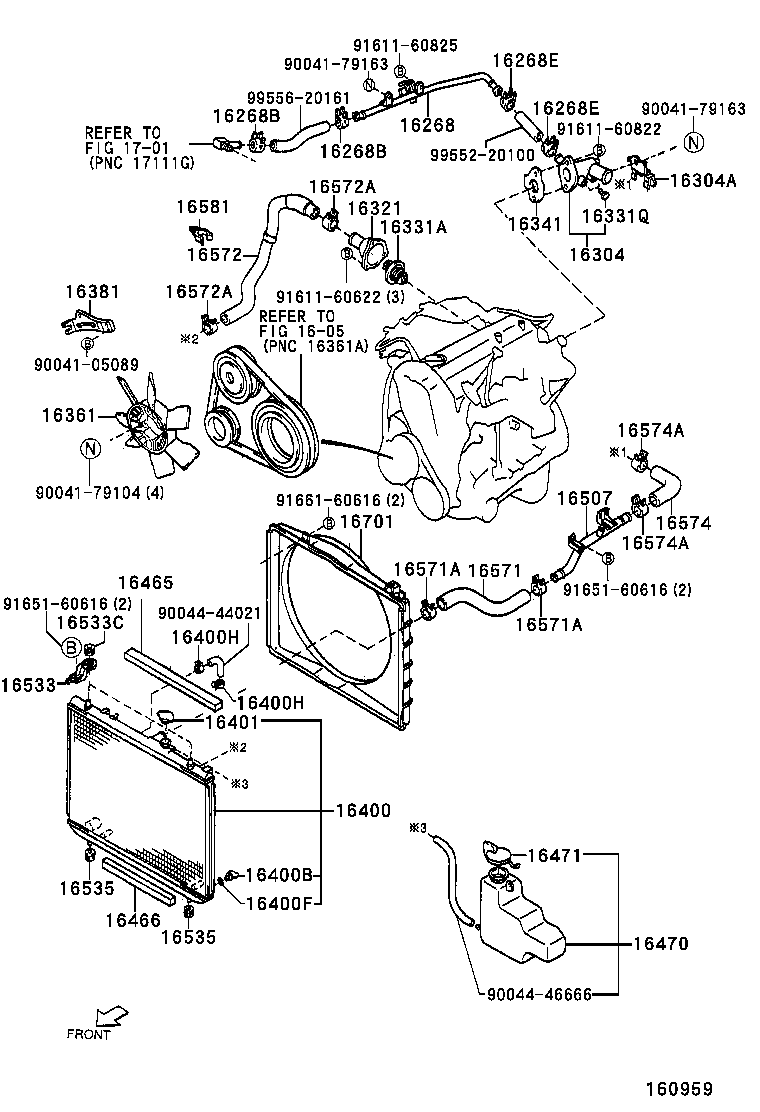

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-87103 |
HCEJ..J100 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90044-67244 |
HCEJ..J100 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90044-67244 |
HCEJ..J100 |
2 | ||
| 16268E - CLAMP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90044-67244 |
HCEJ..J100 |
2 | ||
| 16268E - CLAMP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90044-67244 |
HCEJ..J100 |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-87102 |
HCEJ..J100 |
1 | ||
| 16304A - CLAMP(FOR WATER OUTLET) | ||||
| 90044-62250 |
HCEJ..J100 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-87102 |
HCEJ..J100 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90048-33055 |
HCEJ..J100 |
1 | ||
| 16331Q - PLUG(FOR WATER OUTLET) | ||||
| 90043-45031 |
HCEJ..J100 |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-87104 |
HCEJ..J100 |
1 | ||
| 16361 - FAN | ||||
| 16361-87401 |
HCEJ..J100 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-87117 |
HCEJ..J100 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-87407 |
HCEJ..J100..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16185-87401 |
K3VE,HCEJ..J10#,122 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-87401 |
K3VE,HCEJ..J10#,122 |
1 | ||
| 16400H - CLAMP OR CLIP(FOR RADIATOR BREATHER HOSE) | ||||
| 90044-67194 |
HCEJ..J100 |
2 | ||
| 16400H - CLAMP OR CLIP(FOR RADIATOR BREATHER HOSE) | ||||
| 90044-67194 |
HCEJ..J100 |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-87403 |
HCEJ..J100 |
1 | ||
| 16465 - PACKING, RADIATOR | ||||
| 53397-87401 |
HCEJ..J100 |
1 | ||
| 16466 - SEAL, RADIATOR | ||||
| 53398-87401 |
HCEJ..J100 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-87402 |
HCEJ..J100 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-87202 |
HCEJ..J100 |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-87401 |
HCEJ..J100 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16582-87401 |
K3VE,HCEJ..J10#,122 |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80617 |
K3VE,HCEJ..J10#,122 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80582 |
K3VE,HCEJ..J10#,122 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80582 |
K3VE,HCEJ..J10#,122 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-87401 |
HCEJ..J100 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90044-67330 |
HCEJ..J100 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90044-67330 |
HCEJ..J100 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-87401 |
HCEJ..J100 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90044-67330 |
K3VE,HCEJ..J10#,122 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90044-67330 |
K3VE,HCEJ..J10#,122 |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-87601 |
HCEJ..J100 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90044-67330 |
HCEJ..J100 |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90044-67330 |
HCEJ..J100 |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 90044-64638 |
HCEJ..J100 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-87402 |
HCEJ..J100 |
1 | ||
| Common parts | ||||
| 90041-05089 | ||||
| 90041-79104 | ||||
| 90041-79163 | ||||
| 90044-44021 | ||||
| 90044-46666 | ||||
| 91611-60622 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91651-60616 | ||||
| 91661-60616 | ||||
| 99552-20100 | ||||
| 99556-20161 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 1701 | ||||
