J100E-GMDE (1999)
Toyota Cami

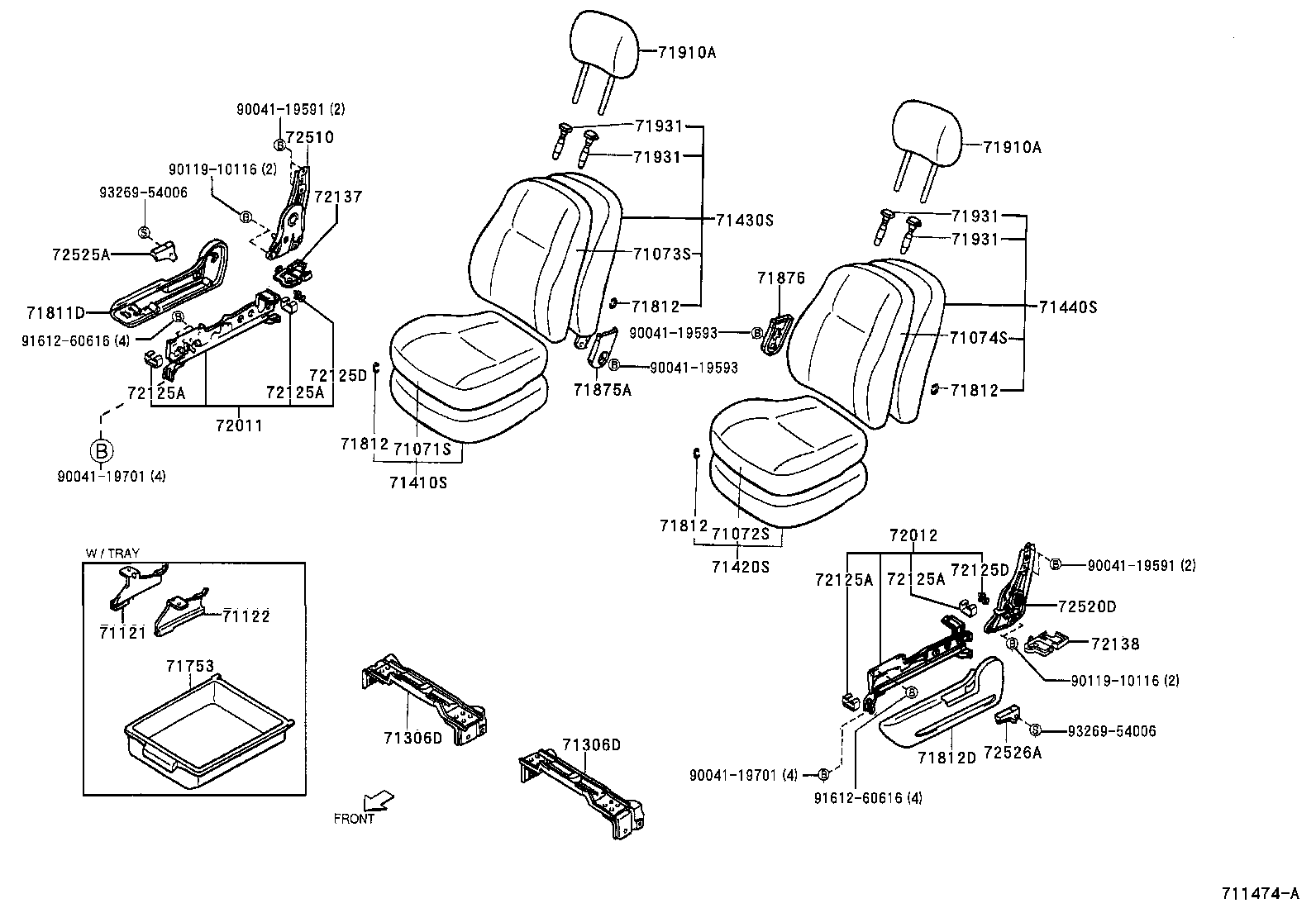

ILLUST NO. 1 OF 4(9905-0005)
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71063-8740503 |
J100 GRAY,TRIMS |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71064-8740503 |
J100 GRAY,TRIMS |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71061-8740603 |
J100 GRAY,TRIMS |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71062-8740603 |
J100 GRAY,TRIMS |
1 | ||
| 71121 - BRACKET, FRONT SEAT CUSHION, RH | ||||
| 71121-87401 |
J100 |
1 | ||
| 71122 - BRACKET, FRONT SEAT CUSHION, LH | ||||
| 71122-87401 |
J100 |
1 | ||
| 71306D - BRACKET SUB-ASSY, FRONT SEAT SET | ||||
| 71306-87402 |
J10#,122 左側 |
1 | ||
| 71306-87401 |
J10#,122 右側 |
1 | ||
| 71306D - BRACKET SUB-ASSY, FRONT SEAT SET | ||||
| 71306-87402 |
J10#,122 左側 |
1 | ||
| 71306-87401 |
J10#,122 右側 |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71510-8740503 |
J100 GRAY,TRIMS |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71520-8740503 |
J100 GRAY,TRIMS |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-8741503 |
J100 GRAY,TRIMS |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71540-8740803 |
J100 GRAY,TRIMS |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-87401 |
J100 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-8740203 |
J100 GRAY,TRIMS |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-87201 |
J10#,122 |
33 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-87201 |
J10#,122 |
33 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-87201 |
J10#,122 |
33 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-87201 |
J10#,122 |
33 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-8740203 |
J100 GRAY,TRIMS |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-8740103 |
J100 GRAY,TRIMS,ﾘﾔｼｰﾄ |
1 | ||
| 71831-8710101 |
J10#,122 BLACK,TRIMS,ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71832-8710101 |
J10#,122 BLACK,TRIMS,ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 71876-8740103 |
J100 GRAY,TRIMS,ﾘﾔｼｰﾄ |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8740503 |
J100 GRAY,TRIMS |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-8740503 |
J100 GRAY,TRIMS |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-8760163 |
J10#,122 ﾛｯｸ付,GRAY,TRIMS |
2 | ||
| 71931-8760163 |
J10#,122 ﾛｯｸ無,GRAY,TRIMS |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-8760163 |
J10#,122 ﾛｯｸ付,GRAY,TRIMS |
2 | ||
| 71931-8760163 |
J10#,122 ﾛｯｸ無,GRAY,TRIMS |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-8760163 |
J10#,122 ﾛｯｸ付,GRAY,TRIMS |
2 | ||
| 71931-8760163 |
J10#,122 ﾛｯｸ無,GRAY,TRIMS |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-8760163 |
J10#,122 ﾛｯｸ付,GRAY,TRIMS |
2 | ||
| 71931-8760163 |
J10#,122 ﾛｯｸ無,GRAY,TRIMS |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-87402 |
J10#,122 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-87403 |
J100 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72137-87703 |
J10#,122 |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72137-87703 |
J10#,122 |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72137-87703 |
J10#,122 |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72137-87703 |
J10#,122 |
4 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72265-87701 |
J10#,122 |
2 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72265-87701 |
J10#,122 |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-8740201 |
J10#,122 BLACK,TRIMS |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-8740201 |
J10#,122 BLACK,TRIMS |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-87744 |
J10#,122 |
1 | ||
| 72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH | ||||
| 72520-87747 |
J10#,122 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-8740103 |
J100 GRAY,TRIMS |
1 | ||
| 72525-8740103 |
J100 GRAY,TRIMS |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-8740103 |
J100 GRAY,TRIMS |
1 | ||
| 72526-8740103 |
J100 GRAY,TRIMS |
1 | ||
| Common parts | ||||
| 90041-19591 | ||||
| 90041-19593 | ||||
| 90041-19701 | ||||
| 90119-10116 | ||||
| 91612-60616 | ||||
| 93269-54006 | ||||

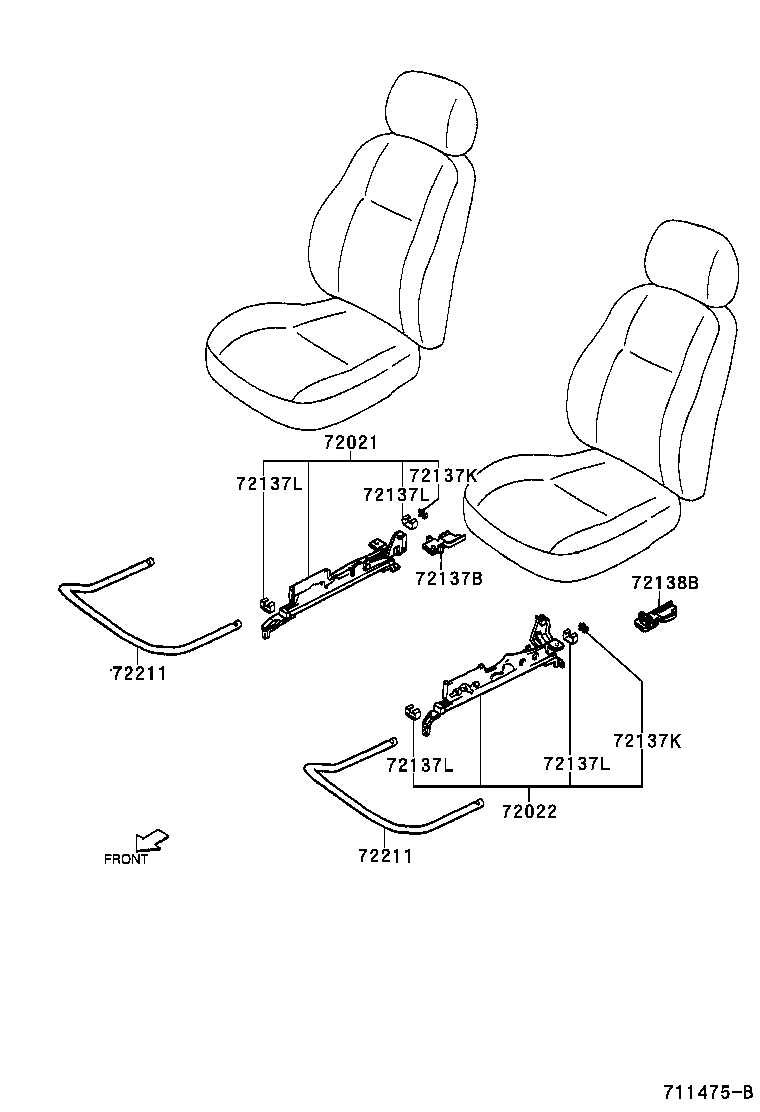

ILLUST NO. 2 OF 4(9905- )
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72130-87402 |
J10#,122 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72140-87403 |
J10#,122 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72157-8740201 |
J10#,122 BLACK,TRIMS |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72265-87701 |
J10#,122 |
2 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72265-87701 |
J10#,122 |
2 | ||
| 72137L - COVER, FRONT SEAT TRACK, RH FRONT INNER | ||||
| 72137-87703 |
J10#,122 |
4 | ||
| 72137L - COVER, FRONT SEAT TRACK, RH FRONT INNER | ||||
| 72137-87703 |
J10#,122 |
4 | ||
| 72137L - COVER, FRONT SEAT TRACK, RH FRONT INNER | ||||
| 72137-87703 |
J10#,122 |
4 | ||
| 72137L - COVER, FRONT SEAT TRACK, RH FRONT INNER | ||||
| 72137-87703 |
J10#,122 |
4 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72158-8740201 |
J10#,122 BLACK,TRIMS |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-87401 |
J10#,122 |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-87401 |
J10#,122 |
2 | ||

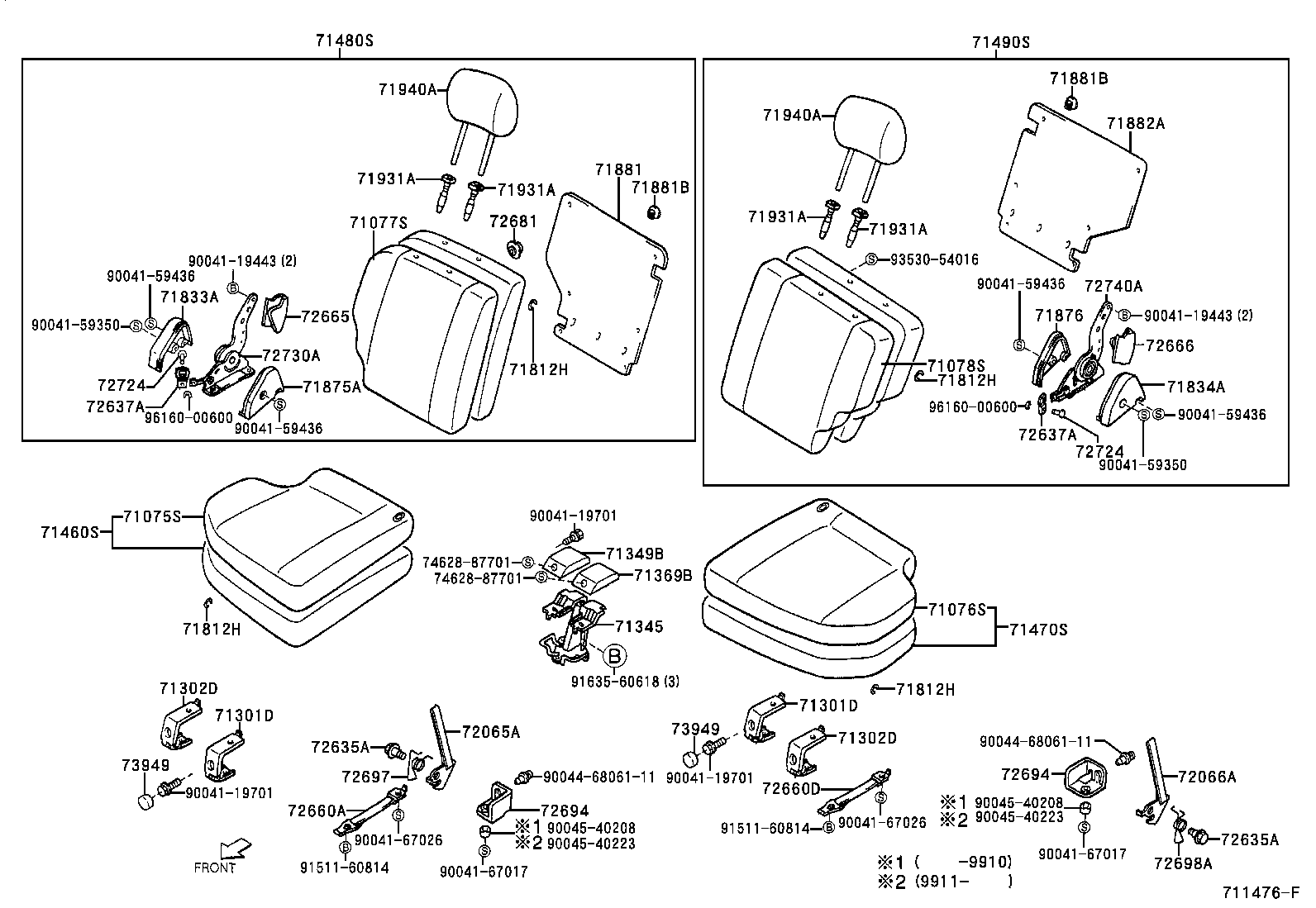

ILLUST NO. 3 OF 4(9905- )
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71065-8740503 |
J100 GRAY,TRIMS |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-8740503 |
J100 GRAY,TRIMS |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-8741103 |
J100 GRAY,TRIMS |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-8740803 |
J100 GRAY,TRIMS |
1 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-87401 |
J10#,122 |
2 | ||
| 71301D - HINGE SUB-ASSY, REAR SEAT, RH | ||||
| 71301-87401 |
J10#,122 |
2 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71302-87401 |
J10#,122 |
2 | ||
| 71302D - HINGE SUB-ASSY, REAR SEAT, LH | ||||
| 71302-87401 |
J10#,122 |
2 | ||
| 71345 - HINGE, REAR SEAT BACK | ||||
| 71345-87401 |
J10#,122 |
1 | ||
| 71349B - COVER, REAR SEAT BACK STAY, RH | ||||
| 71349-8770103 |
J10#,122 GRAY,TRIMS |
1 | ||
| 71369B - COVER, REAR SEAT BACK STAY, LH | ||||
| 71369-8770103 |
J10#,122 GRAY,TRIMS |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-8740903 |
J100 GRAY,TRIMS |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-8740603 |
J100 GRAY,TRIMS |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71580-8741403 |
J100 GRAY,TRIMS |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-8741403 |
J100 GRAY,TRIMS |
1 | ||
| 71812H - RING, HOG, SMALL (FOR REAR SEAT) | ||||
| 71812-87201 |
J10#,122 |
33 | ||
| 71812H - RING, HOG, SMALL (FOR REAR SEAT) | ||||
| 71812-87201 |
J10#,122 |
33 | ||
| 71812H - RING, HOG, SMALL (FOR REAR SEAT) | ||||
| 71812-87201 |
J10#,122 |
33 | ||
| 71812H - RING, HOG, SMALL (FOR REAR SEAT) | ||||
| 71812-87201 |
J10#,122 |
33 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 72667-8740103 |
J100 GRAY,TRIMS |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 72668-8740103 |
J100 GRAY,TRIMS |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-8740103 |
J100 GRAY,TRIMS,ﾘﾔｼｰﾄ |
1 | ||
| 71831-8710101 |
J10#,122 BLACK,TRIMS,ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71832-8710101 |
J10#,122 BLACK,TRIMS,ﾌﾛﾝﾄ ｼｰﾄ |
1 | ||
| 71876-8740103 |
J100 GRAY,TRIMS,ﾘﾔｼｰﾄ |
1 | ||
| 71881 - BOARD, REAR SEAT BACK, RH | ||||
| 71881-87401 |
J100 |
1 | ||
| 71881B - CLIP, REAR SEAT BACK BOARD | ||||
| 90044-6808701 |
J10#,122 BLACK,TRIMS |
8 | ||
| 71881B - CLIP, REAR SEAT BACK BOARD | ||||
| 90044-6808701 |
J10#,122 BLACK,TRIMS |
8 | ||
| 71882A - BOARD, REAR SEAT BACK, LH | ||||
| 71882-87402 |
J100 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-8760163 |
J10#,122 ﾛｯｸ付,GRAY,TRIMS |
2 | ||
| 71931-8760163 |
J10#,122 ﾛｯｸ無,GRAY,TRIMS |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-8760163 |
J10#,122 ﾛｯｸ付,GRAY,TRIMS |
2 | ||
| 71931-8760163 |
J10#,122 ﾛｯｸ無,GRAY,TRIMS |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-8760163 |
J10#,122 ﾛｯｸ付,GRAY,TRIMS |
2 | ||
| 71931-8760163 |
J10#,122 ﾛｯｸ無,GRAY,TRIMS |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-8760163 |
J10#,122 ﾛｯｸ付,GRAY,TRIMS |
2 | ||
| 71931-8760163 |
J10#,122 ﾛｯｸ無,GRAY,TRIMS |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-8740503 |
J100 GRAY,TRIMS |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-8740503 |
J100 GRAY,TRIMS |
2 | ||
| 72065A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH | ||||
| 72065-8740103 |
J10#,122 GRAY,TRIMS |
1 | ||
| 72066A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH | ||||
| 72066-8740103 |
J10#,122 GRAY,TRIMS |
1 | ||
| 72635A - BOLT,REAR SEAT LOCK | ||||
| 72635-87402 |
J10#,122 |
2 | ||
| 72635A - BOLT,REAR SEAT LOCK | ||||
| 72635-87402 |
J10#,122 |
2 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72638-8740103 |
J100 GRAY,TRIMS,左側 |
1 | ||
| 72637-8740203 |
J100 GRAY,TRIMS,右側 |
1 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72638-8740103 |
J100 GRAY,TRIMS,左側 |
1 | ||
| 72637-8740203 |
J100 GRAY,TRIMS,右側 |
1 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-8740103 |
J10#,122 GRAY,TRIMS |
2 | ||
| 72660D - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-8740103 |
J10#,122 GRAY,TRIMS |
2 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-8740101 |
J10#,122 BLACK,TRIMS |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-8740101 |
J10#,122 BLACK,TRIMS |
1 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-8740103 |
J10#,122 GRAY,TRIMS |
2 | ||
| 72694 - COVER, REAR SEAT CUSHION LOCK | ||||
| 72694-8740103 |
J100 GRAY,TRIMS,右側 |
1 | ||
| 72694-8740203 |
J100 GRAY,TRIMS,左側 |
1 | ||
| 72694 - COVER, REAR SEAT CUSHION LOCK | ||||
| 72694-8740103 |
J100 GRAY,TRIMS,右側 |
1 | ||
| 72694-8740203 |
J100 GRAY,TRIMS,左側 |
1 | ||
| 72697 - SPRING, REAR SEAT LOCK LEVER, RH | ||||
| 72697-87401 |
J10#,122 |
1 | ||
| 72698A - SPRING,REAR SEAT LOCK LEVER,LH | ||||
| 72698-87401 |
J10#,122 |
1 | ||
| 72724 - PIN, REAR SEAT RECLINING CONTROL LEVER | ||||
| 72724-87402 |
J10#,122 |
2 | ||
| 72724 - PIN, REAR SEAT RECLINING CONTROL LEVER | ||||
| 72724-87402 |
J10#,122 |
2 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-87401 |
J10#,122 |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-87401 |
J10#,122 |
1 | ||
| 73949 - CAP | ||||
| 73949-87502 |
J10#,122 |
4 | ||
| 73949 - CAP | ||||
| 73949-87502 |
J10#,122 |
4 | ||
| Common parts | ||||
| 74628-87701 | ||||
| 90041-19443 | ||||
| 90041-19701 | ||||
| 90041-59350 | ||||
| 90041-59436 | ||||
| 90041-67017 | ||||
| 90041-67026 | ||||
| 90044-6806111 | ||||
| 90045-40208 | ||||
| 90045-40223 | ||||
| 91511-60814 | ||||
| 91635-60618 | ||||
| 93530-54016 | ||||
| 96160-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
