J100E-GMDE (1999)

Toyota Cami

Production May 1999 - May 2000
Engine HCEJ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

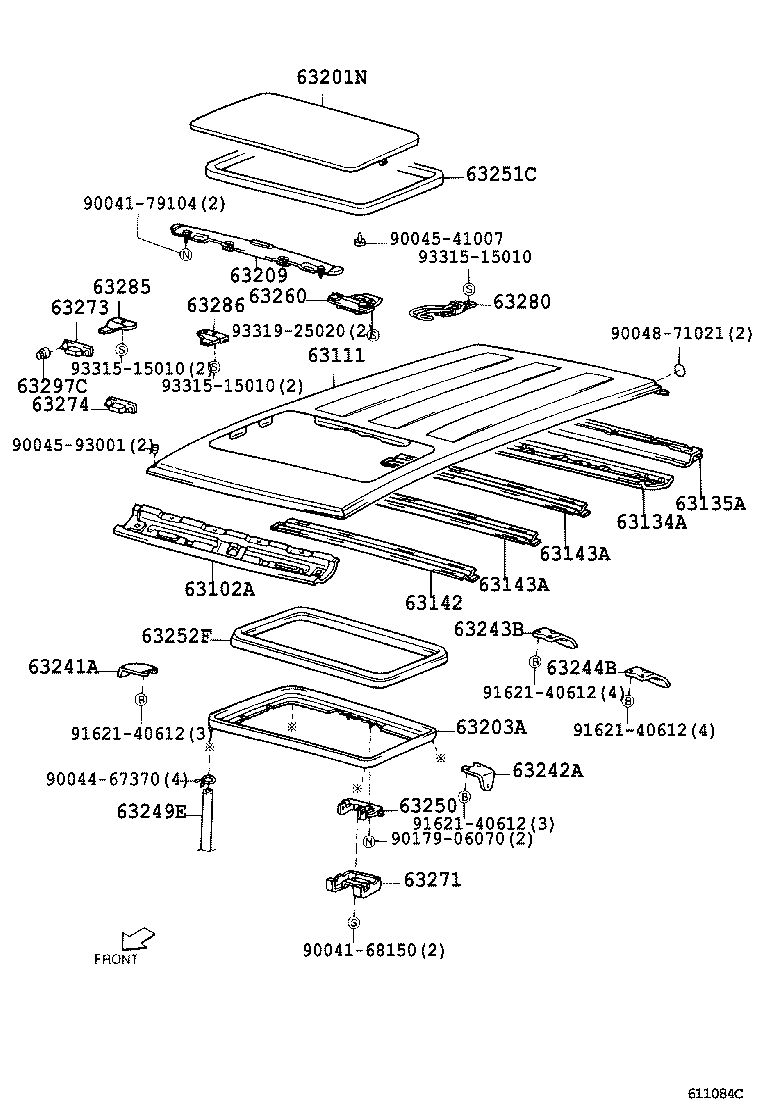

ILLUST NO. 1 OF 2(9905- )

Click highlighted areas on diagram

diagram 63102A 63111 63134A 63135A 63142 63143A 63143A 63201N 63203A 63209 63241A 63242A 63243B 63244B 63249E 63250 63251C 63252F 63260 63271 63273 63274 63280 63285 63286 63297C 9004168150 9004179104 9004467370 9004541007 9004593001 9004871021 9017906070 9162140612 9162140612 9162140612 9162140612 9331515010 9331515010 9331515010 9331925020
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63132-87401

J10#,122

 1
63111 - PANEL, ROOF
63111-87405

J10#,122

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
63111-87404

J100..P;J102,122

ﾅｼ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
63134A - FRAME, BACK DOOR OPENING, UPPER
63135-87401

J10#,122

 1
63135A - FRAME, BACK DOOR OPENING, LOWER
63134-87401

J10#,122

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-87401

J10#,122

 1
63143A - REINFORCEMENT, ROOF PANEL
63143-87402

J10#,122

 2
63143A - REINFORCEMENT, ROOF PANEL
63143-87402

J10#,122

 2
Common parts
90041-68150
90041-79104
90044-67370
90045-41007
90045-93001
90048-71021
90179-06070
91621-40612
93315-15010
93319-25020

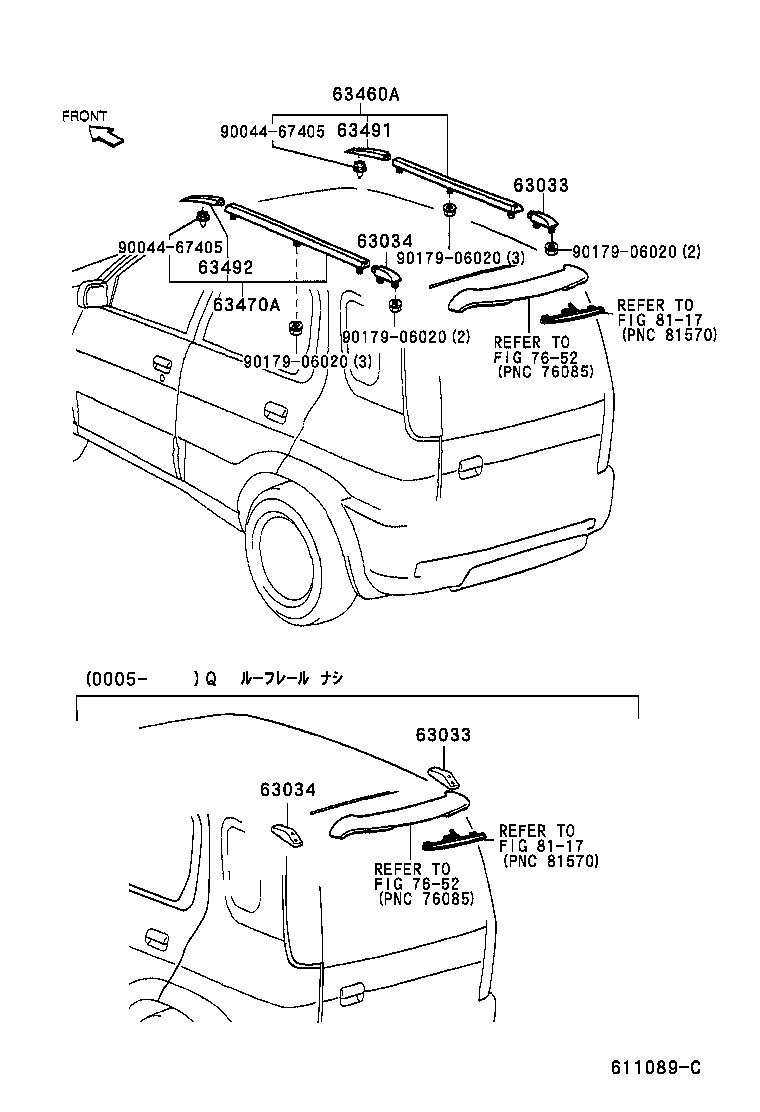

ILLUST NO. 2 OF 2(9905- )

Click highlighted areas on diagram

diagram 63033 63033 63034 63034 63460A 63470A 63491 63492 7652 7652 8117 8117 9004467405 9004467405 9017906020 9017906020 9017906020 9017906020
Part # Description Qty Price
63033 - RACK SUB-ASSY, ROOF, REAR RH
63033-87401

J10#,122..P

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
63033-87402

J100..P

 1
63033 - RACK SUB-ASSY, ROOF, REAR RH
63033-87401

J10#,122..P

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
63033-87402

J100..P

 1
63034 - RACK SUB-ASSY, ROOF, REAR LH
63034-87401

J10#,122..P

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
63034-87402

J100..P

 1
63034 - RACK SUB-ASSY, ROOF, REAR LH
63034-87401

J10#,122..P

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
63034-87402

J100..P

 1
63460A - RACK ASSY, ROOF, RH
63460-87401

J100

 1
63470A - RACK ASSY, ROOF, LH
63470-87401

J100

 1
63491 - COVER, ROOF RACK LEG, FRONT RH
63491-87401

J100

 1
63492 - COVER, ROOF RACK LEG, FRONT LH
63492-87401

J100

 1
Common parts
90044-67405
90179-06020
Linked diagrams
7652
8117
