J100E-GMDE (1999)
Toyota Cami
Production
May 1999
-
May 2000
Engine
HCEJ
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9905- )

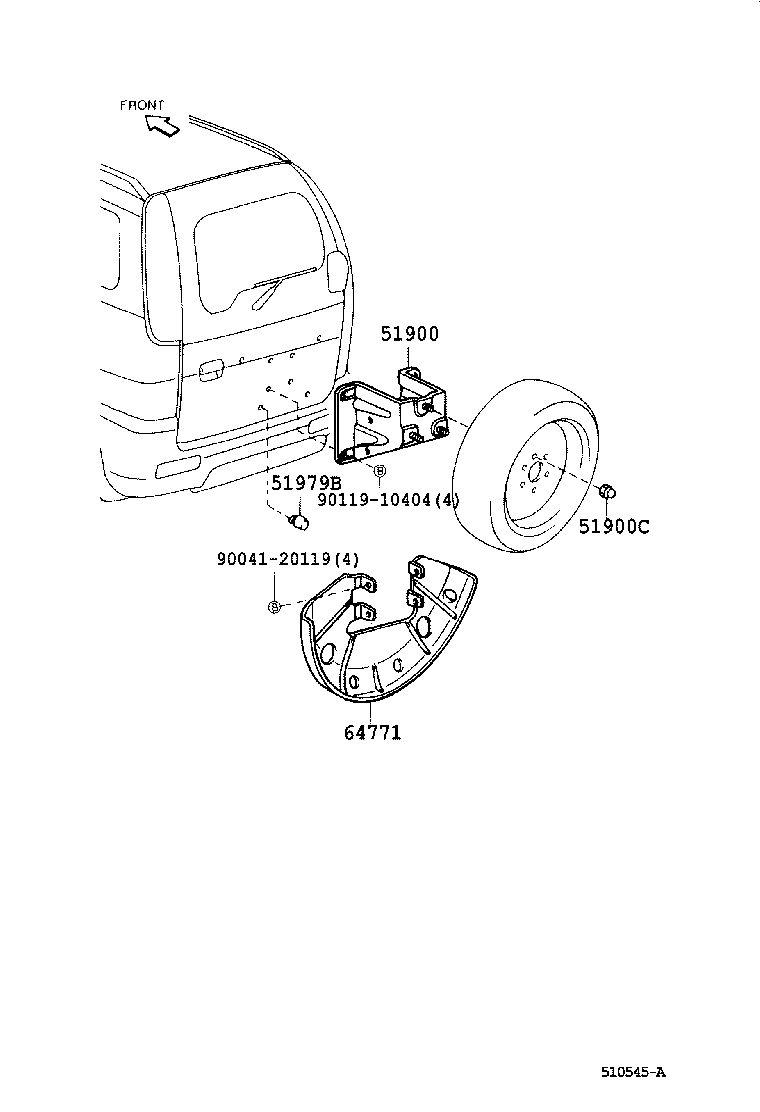

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51903-87401 |
J10#,122 |
1 | ||
| 51900C - NUT, SPARE WHEEL, HUB | ||||
| 90049-11046 |
J100..P ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ) |
3 | ||
| 90049-11036 |
J100..P |
3 | ||
| 51979B - CUSHION, SPARE WHEEL CARRIER PROTECTOR | ||||
| 51979-87401 |
J10#,122 |
4 | ||
| 64771 - COVER, SPARE WHEEL | ||||
| 64779-87402 |
J10#,122 |
1 | ||
| Common parts | ||||
| 90041-20119 | ||||
| 90119-10404 | ||||
