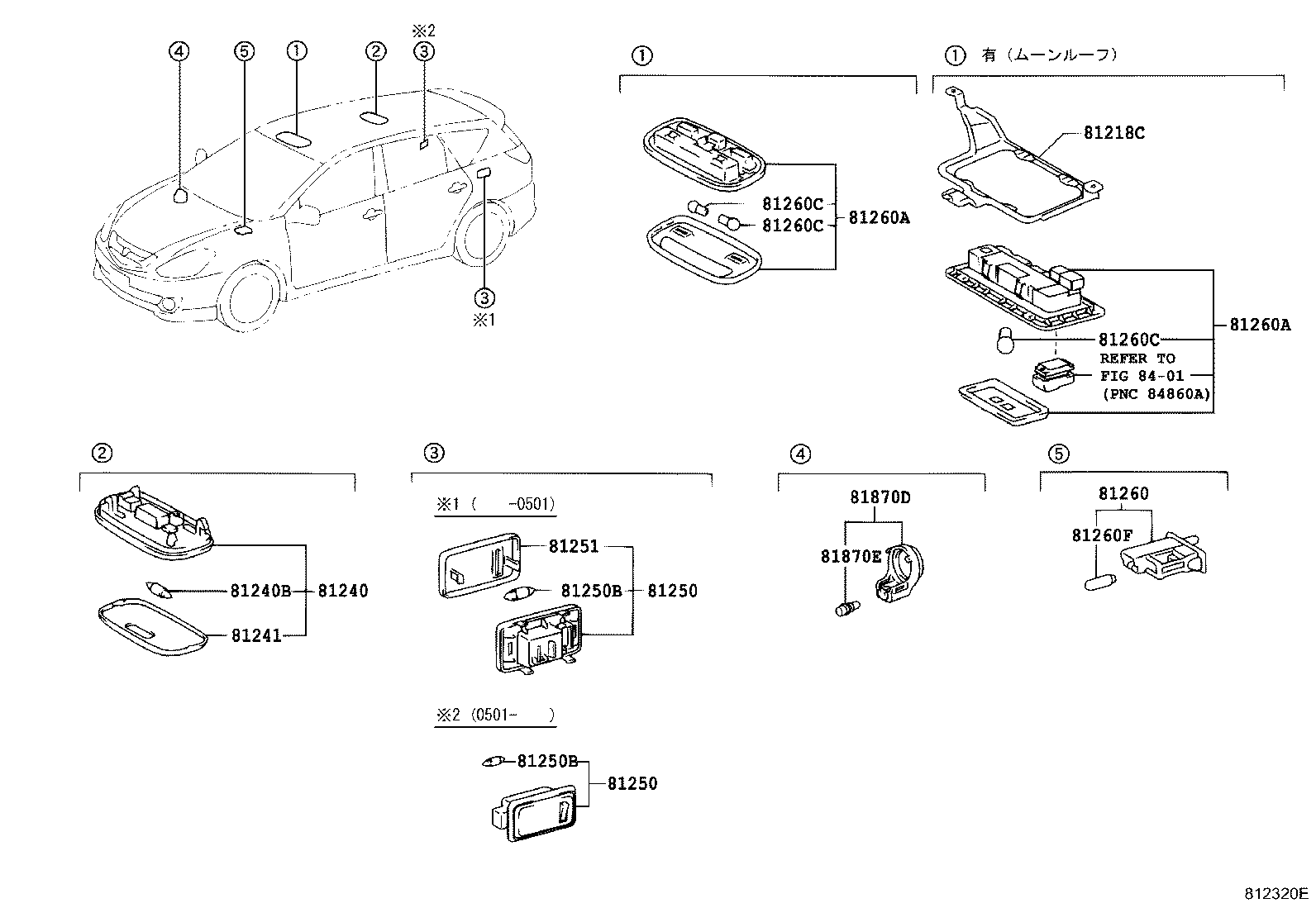

ZZT241W-DWPGK (2002)
Toyota Caldina
(0209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81218C - BRACKET, MAP LAMP | ||||
| 81368-21010 |
AZT24#,ST246,ZZT241 ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-33030B0 |
AZT24#,ST246,ZZT241 LT.GRAY,TRIM2# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
AZT24#,ST246,ZZT241 12V 8W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-33030 |
AZT24#,ST246,ZZT241 |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-12030B5 |
AZT24#,ST246,ZZT241 DK.GRAY,TRIM2# |
1 | ||
| 81250-12030C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-12030B5 |
AZT24#,ST246,ZZT241 DK.GRAY,TRIM2# |
1 | ||
| 81250-12030C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99132-13050 |
AZT24#,ST246,ZZT241 12V 5W |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99132-13050 |
AZT24#,ST246,ZZT241 12V 5W |
1 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81251-12030 |
AZT24#,ST246,ZZT241 |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-33030 |
AZT24#,ST246,ZZT241..GT4,Z,ZT |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-12110B0 |
AZT24#,ZZT241..X,Z LT.GRAY,TRIM2# |
1 | ||
| 81260-21030B0 |
AZT24#,ZZT241..X,Z ﾑｰﾝﾙｰﾌ−有り,LT.GRAY,TRIM2# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-12110B0 |
AZT24#,ZZT241..X,Z LT.GRAY,TRIM2# |
1 | ||
| 81260-21030B0 |
AZT24#,ZZT241..X,Z ﾑｰﾝﾙｰﾌ−有り,LT.GRAY,TRIM2# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
AZT24#,ST246,ZZT241 12V 8W |
2 | ||
| 90981-12014 |
AZT24#,ST246,ZZT241 12V 10W,ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
AZT24#,ST246,ZZT241 12V 8W |
2 | ||
| 90981-12014 |
AZT24#,ST246,ZZT241 12V 10W,ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
AZT24#,ST246,ZZT241 12V 8W |
2 | ||
| 90981-12014 |
AZT24#,ST246,ZZT241 12V 10W,ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 81260F - BULB(FOR GLOVE BOX LAMP) | ||||
| 90981-11018 |
AZT24#,ST246,ZZT241..GT4,Z,ZT 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 81870D - LAMP ASSY, KEY CYLINDER | ||||
| 81870-13010 |
AZT24#,ZZT241 |
1 | ||
| 81870E - BULB, KEY CYLINDER LAMP | ||||
| 90010-01056 |
AZT24#,ZZT241 14V 1.4W |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
