ZZT241W-DWPGK (2002)
Toyota Caldina
Production
Sep 2002
-
Jan 2005
Engine
1ZZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0209- )1ZZFE

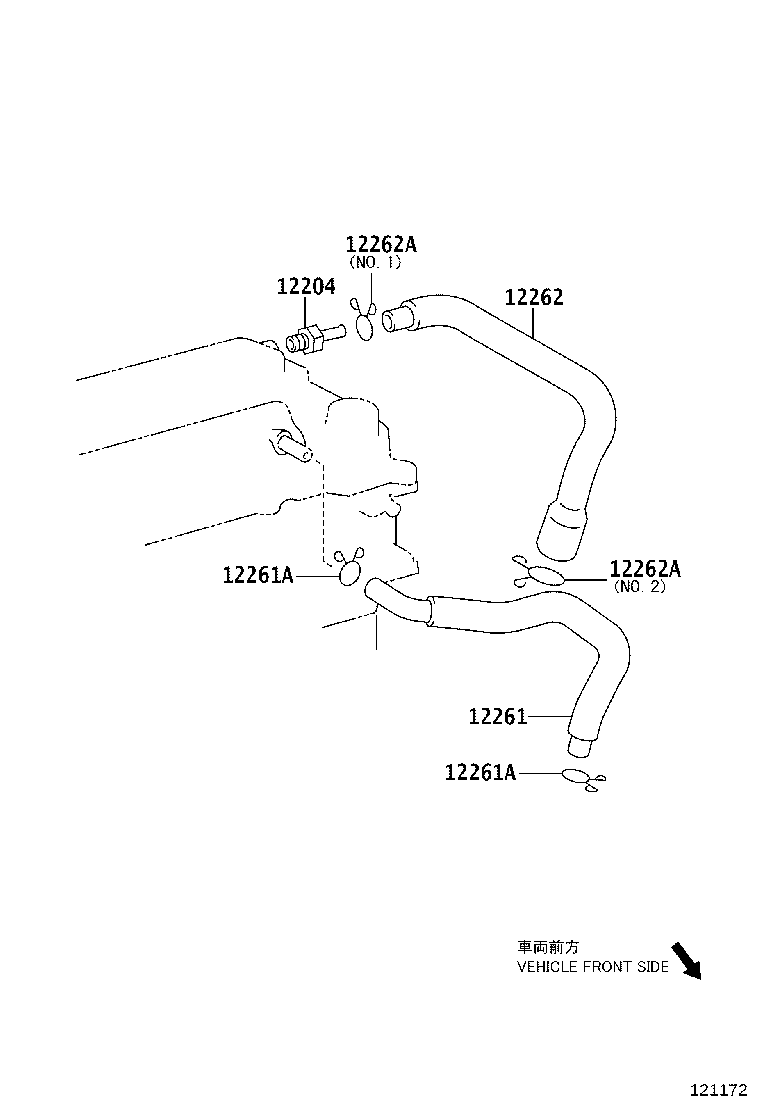

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-22050 |
1ZZFE..ZZT241 |
1 | ||
| 12204-22051 |
1ZZFE..ZZT241 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-22050 |
1ZZFE..ZZT241 |
1 | ||
| 12261-22050 |
1ZZFE..ZZT241 (J) |
1 | ||
| 12261-0D040 |
1ZZFE..ZZT241 (L) |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-21152 |
1ZZFE..ZZT241 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-21152 |
1ZZFE..ZZT241 |
2 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-22040 |
1ZZFE..ZZT241 |
1 | ||
| 12262-22040 |
1ZZFE..ZZT241 (J) |
1 | ||
| 12262-0D050 |
1ZZFE..ZZT241 (L) |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-19003 |
1ZZFE..ZZT241 NO.2 |
1 | ||
| 90466-18002 |
1ZZFE..ZZT241 NO.2 |
1 | ||
| 90467-13103 |
1ZZFE..ZZT241 NO.1 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-19003 |
1ZZFE..ZZT241 NO.2 |
1 | ||
| 90466-18002 |
1ZZFE..ZZT241 NO.2 |
1 | ||
| 90467-13103 |
1ZZFE..ZZT241 NO.1 |
1 | ||
