ST246W-DWPZZ (2002)

Toyota Caldina

Production Sep 2002 - Jan 2005
Engine 3SGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )3SGTE

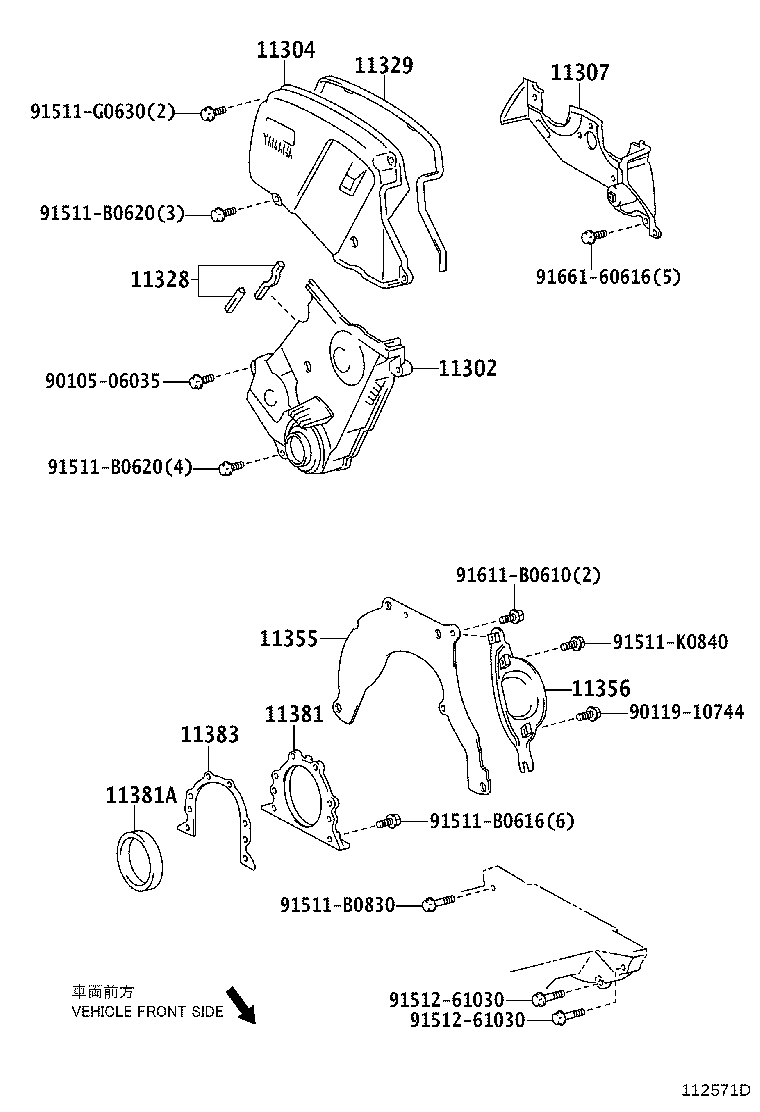

Click highlighted areas on diagram

diagram 11302 11304 11307 11328 11329 11355 11356 11381 11381A 11383 9010506035 9011910744 91511B0616 91511B0620 91511B0620 91511B0830 91511G0630 91511K0840 9151261030 9151261030 91611B0610 9166160616
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-88560

3SGTE..ST246

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11322-88460

3SGTE..ST246

 1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11323-88580

3SGTE..ST246

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-88561

3SGTE..ST246

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-88460

3SGTE..ST246

 1
11355 - PLATE, REAR END
11355-88480

3SGTE..ST246

 1
11356 - PLATE, REAR END, NO.2
11356-88480

3SGTE..ST246

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-74010

3SGTE..ST246

 1
11381A - SEAL, ENGINE REAR OIL
90311-89003

3SGTE..ST246

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-88460

3SGTE..ST246

 1
Common parts
90105-06035
90119-10744
91511-B0616
91511-B0620
91511-B0830
91511-G0630
91511-K0840
91512-61030
91611-B0610
91661-60616
