ST246W-DWPZZ (2005)

Toyota Caldina

Production Jan 2005 - Jun 2007
Engine 3SGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )

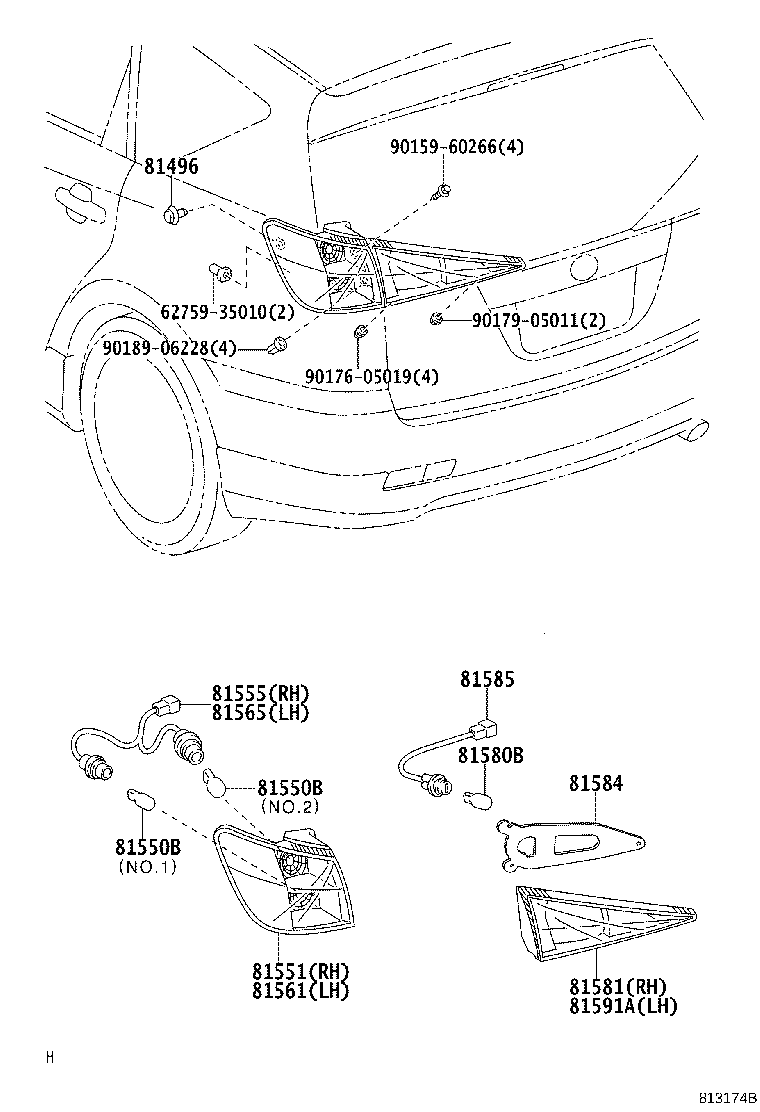

Click highlighted areas on diagram

diagram 6275935010 81496 81550B 81550B 81551 81555 81561 81565 81580B 81581 81584 81585 81591A 9015960266 9017605019 9017905011 9018906228
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-28010

AZT24#,ST246,ZZT241

 2
81496-28010

AZT24#,ST246,ZZT241

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

AZT24#,ST246,ZZT241

12V 21/5W,NO.2

 2
90981-15011

AZT24#,ST246,ZZT241

12V 21W,ｱﾝﾊﾞｰ,NO.1

 2
90981-11048

AZT24#,ST246,ZZT241

12V 21/5W,NO.1

 2
90981-15011

AZT24#,ST246,ZZT241

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

AZT24#,ST246,ZZT241

12V 21/5W,NO.2

 2
90981-15011

AZT24#,ST246,ZZT241

12V 21W,ｱﾝﾊﾞｰ,NO.1

 2
90981-11048

AZT24#,ST246,ZZT241

12V 21/5W,NO.1

 2
90981-15011

AZT24#,ST246,ZZT241

12V 21W,ｱﾝﾊﾞｰ,NO.2

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-21220

AZT24#,ST246,ZZT241

 1
81551-21250

AZT24#,ST246,ZZT241

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-21250

AZT24#,ST246,ZZT241

 1
81555-21220

AZT24#,ST246,ZZT241

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-21220

AZT24#,ST246,ZZT241

 1
81561-21250

AZT24#,ST246,ZZT241

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-21250

AZT24#,ST246,ZZT241

 1
81555-21220

AZT24#,ST246,ZZT241

 1
81580B - BULB (FOR REAR LAMP)
99132-12050

AZT24#,ST246,ZZT241

12V 5W

 4
90981-11059

AZT24#,ST246,ZZT241

12V 16W

 2
81581 - LENS, REAR LAMP
81581-21160

AZT24#,ST246,ZZT241

 1
81581-21150

AZT24#,ST246,ZZT241

 1
81584 - PACKING, REAR LAMP RH
81584-21160

AZT24#,ST246,ZZT241

 2
81585 - SOCKET & WIRE, REAR LAMP
81585-21160

AZT24#,ST246,ZZT241

 2
81585-21150

AZT24#,ST246,ZZT241

 2
81591A - LENS REAR LAMP
81591-21150

AZT24#,ST246,ZZT241

 1
81591-21130

AZT24#,ST246,ZZT241

 1
Common parts
62759-35010
90159-60266
90176-05019
90179-05011
90189-06228
