ST215W-DWMZZ (1997)
Toyota Caldina

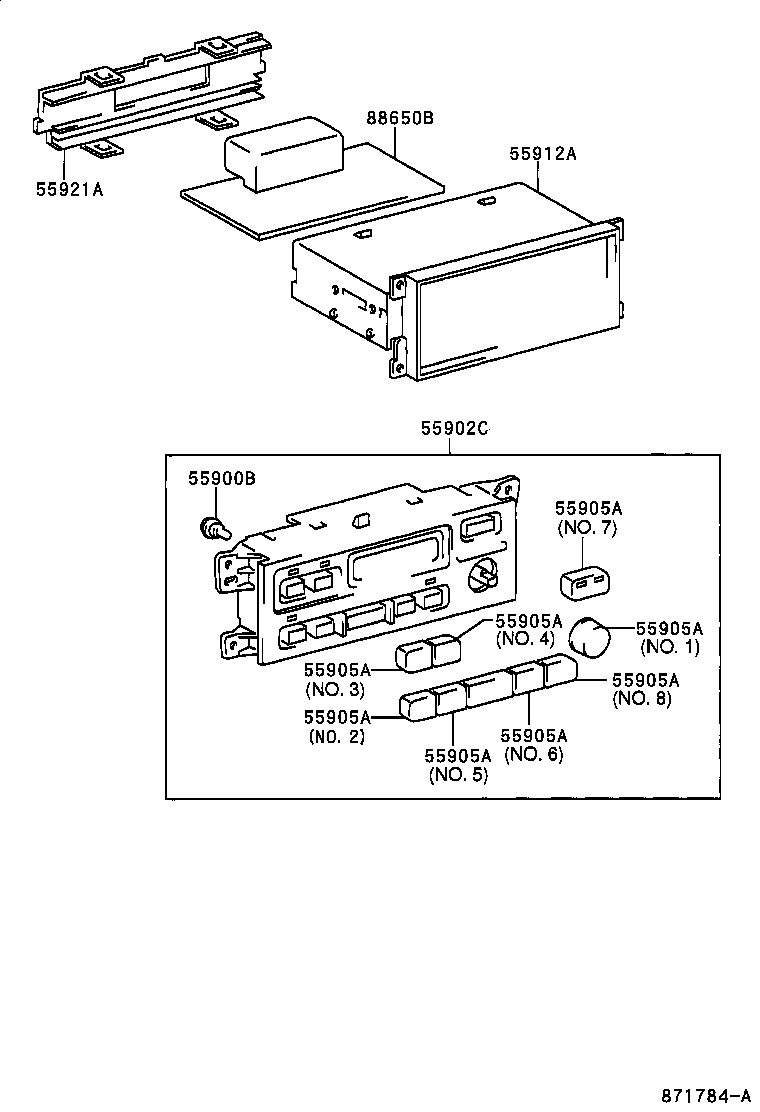

ILLUST NO. 1 OF 3(9708- )
ｺﾝﾄﾛ-ﾙﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05101 |
AT211,CT216,ST21#..E 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
4 | ||
| 90010-05101 |
ST21#..G,GT,GTT 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き |
6 | ||
| 55902C - PANEL SUB-ASSY, AIR CONDITIONER | ||||
| 55902-21020 |
AT211,CT216,ST21#..E |
1 | ||
| 55902-21030 |
ST21#..G,GT,GTT |
1 | ||
| 55902-21010 |
ST21#..G,GT,GTT |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22430 |
ST21#..G,GT,GTT NO.1 |
1 | ||
| 55905-60220 |
AT211,CT216,ST21# NO.6 |
1 | ||
| 55905-60230 |
AT211,CT216,ST21# NO.7 |
1 | ||
| 55905-60190 |
AT211,CT216,ST21# NO.3 |
1 | ||
| 55905-60210 |
AT211,CT216,ST21# NO.5 |
1 | ||
| 55905-60170 |
AT211,CT216,ST21#..E NO.1 |
1 | ||
| 55905-60240 |
AT211,CT216,ST21# NO.8 |
1 | ||
| 55905-60200 |
AT211,CT216,ST21# NO.4 |
1 | ||
| 55905-60180 |
AT211,CT216,ST21# NO.2 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22430 |
ST21#..G,GT,GTT NO.1 |
1 | ||
| 55905-60220 |
AT211,CT216,ST21# NO.6 |
1 | ||
| 55905-60230 |
AT211,CT216,ST21# NO.7 |
1 | ||
| 55905-60190 |
AT211,CT216,ST21# NO.3 |
1 | ||
| 55905-60210 |
AT211,CT216,ST21# NO.5 |
1 | ||
| 55905-60170 |
AT211,CT216,ST21#..E NO.1 |
1 | ||
| 55905-60240 |
AT211,CT216,ST21# NO.8 |
1 | ||
| 55905-60200 |
AT211,CT216,ST21# NO.4 |
1 | ||
| 55905-60180 |
AT211,CT216,ST21# NO.2 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22430 |
ST21#..G,GT,GTT NO.1 |
1 | ||
| 55905-60220 |
AT211,CT216,ST21# NO.6 |
1 | ||
| 55905-60230 |
AT211,CT216,ST21# NO.7 |
1 | ||
| 55905-60190 |
AT211,CT216,ST21# NO.3 |
1 | ||
| 55905-60210 |
AT211,CT216,ST21# NO.5 |
1 | ||
| 55905-60170 |
AT211,CT216,ST21#..E NO.1 |
1 | ||
| 55905-60240 |
AT211,CT216,ST21# NO.8 |
1 | ||
| 55905-60200 |
AT211,CT216,ST21# NO.4 |
1 | ||
| 55905-60180 |
AT211,CT216,ST21# NO.2 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22430 |
ST21#..G,GT,GTT NO.1 |
1 | ||
| 55905-60220 |
AT211,CT216,ST21# NO.6 |
1 | ||
| 55905-60230 |
AT211,CT216,ST21# NO.7 |
1 | ||
| 55905-60190 |
AT211,CT216,ST21# NO.3 |
1 | ||
| 55905-60210 |
AT211,CT216,ST21# NO.5 |
1 | ||
| 55905-60170 |
AT211,CT216,ST21#..E NO.1 |
1 | ||
| 55905-60240 |
AT211,CT216,ST21# NO.8 |
1 | ||
| 55905-60200 |
AT211,CT216,ST21# NO.4 |
1 | ||
| 55905-60180 |
AT211,CT216,ST21# NO.2 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22430 |
ST21#..G,GT,GTT NO.1 |
1 | ||
| 55905-60220 |
AT211,CT216,ST21# NO.6 |
1 | ||
| 55905-60230 |
AT211,CT216,ST21# NO.7 |
1 | ||
| 55905-60190 |
AT211,CT216,ST21# NO.3 |
1 | ||
| 55905-60210 |
AT211,CT216,ST21# NO.5 |
1 | ||
| 55905-60170 |
AT211,CT216,ST21#..E NO.1 |
1 | ||
| 55905-60240 |
AT211,CT216,ST21# NO.8 |
1 | ||
| 55905-60200 |
AT211,CT216,ST21# NO.4 |
1 | ||
| 55905-60180 |
AT211,CT216,ST21# NO.2 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22430 |
ST21#..G,GT,GTT NO.1 |
1 | ||
| 55905-60220 |
AT211,CT216,ST21# NO.6 |
1 | ||
| 55905-60230 |
AT211,CT216,ST21# NO.7 |
1 | ||
| 55905-60190 |
AT211,CT216,ST21# NO.3 |
1 | ||
| 55905-60210 |
AT211,CT216,ST21# NO.5 |
1 | ||
| 55905-60170 |
AT211,CT216,ST21#..E NO.1 |
1 | ||
| 55905-60240 |
AT211,CT216,ST21# NO.8 |
1 | ||
| 55905-60200 |
AT211,CT216,ST21# NO.4 |
1 | ||
| 55905-60180 |
AT211,CT216,ST21# NO.2 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22430 |
ST21#..G,GT,GTT NO.1 |
1 | ||
| 55905-60220 |
AT211,CT216,ST21# NO.6 |
1 | ||
| 55905-60230 |
AT211,CT216,ST21# NO.7 |
1 | ||
| 55905-60190 |
AT211,CT216,ST21# NO.3 |
1 | ||
| 55905-60210 |
AT211,CT216,ST21# NO.5 |
1 | ||
| 55905-60170 |
AT211,CT216,ST21#..E NO.1 |
1 | ||
| 55905-60240 |
AT211,CT216,ST21# NO.8 |
1 | ||
| 55905-60200 |
AT211,CT216,ST21# NO.4 |
1 | ||
| 55905-60180 |
AT211,CT216,ST21# NO.2 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22430 |
ST21#..G,GT,GTT NO.1 |
1 | ||
| 55905-60220 |
AT211,CT216,ST21# NO.6 |
1 | ||
| 55905-60230 |
AT211,CT216,ST21# NO.7 |
1 | ||
| 55905-60190 |
AT211,CT216,ST21# NO.3 |
1 | ||
| 55905-60210 |
AT211,CT216,ST21# NO.5 |
1 | ||
| 55905-60170 |
AT211,CT216,ST21#..E NO.1 |
1 | ||
| 55905-60240 |
AT211,CT216,ST21# NO.8 |
1 | ||
| 55905-60200 |
AT211,CT216,ST21# NO.4 |
1 | ||
| 55905-60180 |
AT211,CT216,ST21# NO.2 |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-22020 |
AT211,CT216,ST21# |
1 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-22070 |
AT211,CT216,ST21# |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-21060 |
ST21#..G,GT,GTT |
1 | ||
| 88650-21080 |
CT216,ST21#..E |
1 | ||

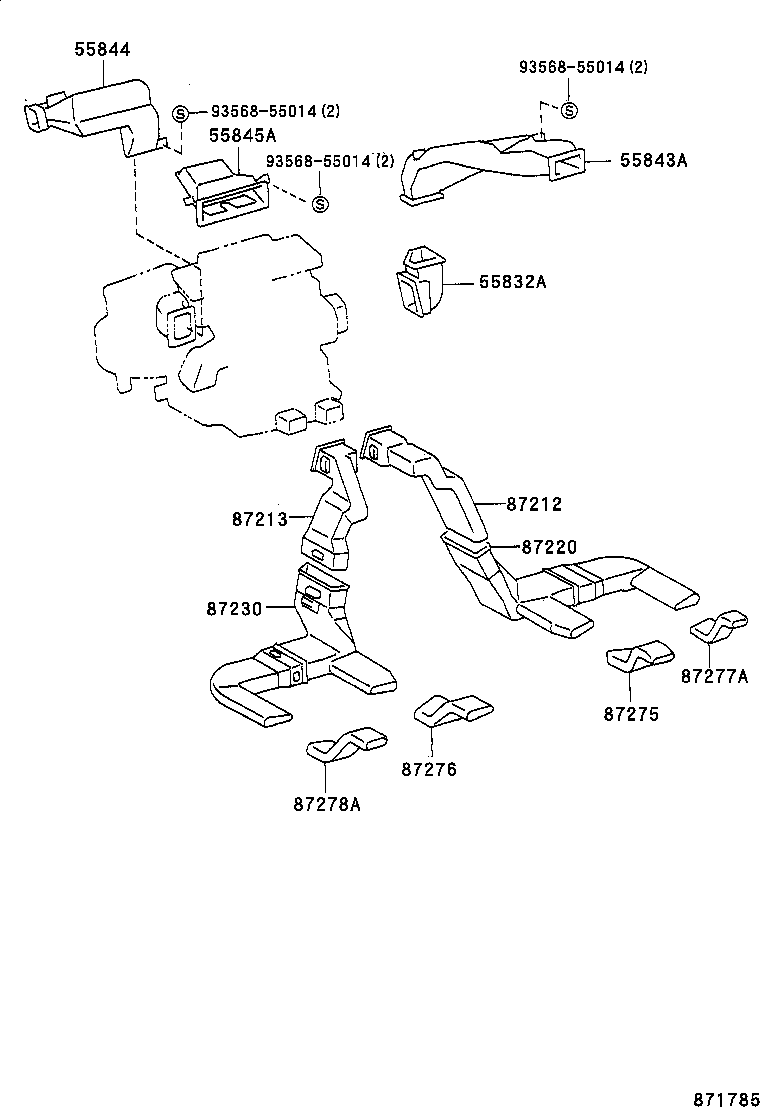

ILLUST NO. 2 OF 3(9708- )
ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55832A - CONNECTOR, INSTRUMENT PANEL REGISTER, NO.2 | ||||
| 55832-20110 |
AT211,CT216,ST21# |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-20270 |
AT211,CT216,ST21# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-20350 |
AT211,CT216,ST21# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-21010 |
AT211,CT216,ST21# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-20100 |
AT211,CT216,ST21# |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-20100 |
AT211,CT216,ST21# |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-20100 |
AT211,CT216,ST21# |
1 | ||
| 87230 - DUCT ASSY, AIR, HEATER | ||||
| 87230-20070 |
AT211,CT216,ST21# |
1 | ||
| 87275 - DUCT, FLOOR HEATER AIR, NO.1 RH | ||||
| 87275-20010 |
AT211,CT216,ST21# |
1 | ||
| 87276 - DUCT, FLOOR HEATER AIR, NO.1 LH | ||||
| 87276-20010 |
AT211,CT216,ST21# |
1 | ||
| 87277A - DUCT, FLOOR HEATER AIR, NO.2 RH | ||||
| 87277-20010 |
AT211,CT216,ST21# |
1 | ||
| 87278A - DUCT, FLOOR HEATER AIR, NO.2 LH | ||||
| 87278-20010 |
AT211,CT216,ST21# |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||

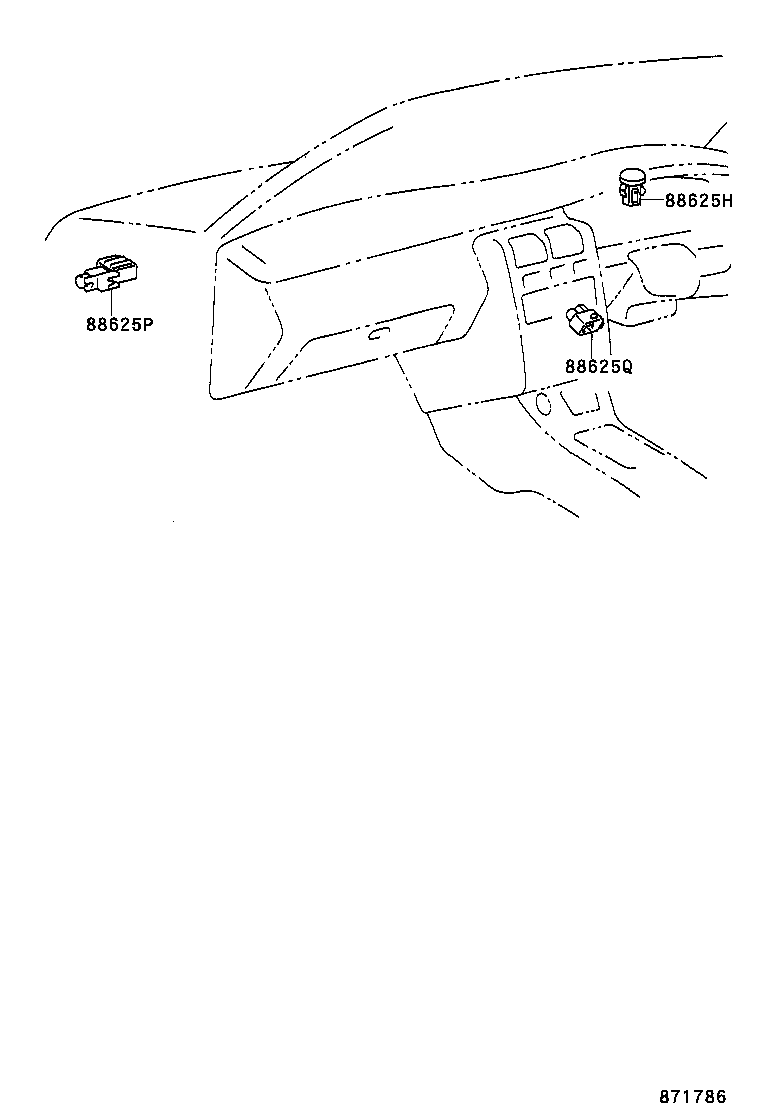

ILLUST NO. 3 OF 3(9708- )
ｾﾝｻ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-32160 |
AT211,CT216,ST21# |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88625-32170 |
AT211,CT216,ST21# |
1 | ||
| 88625-32171 |
AT211,CT216,ST21# |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-20490 |
AT211,CT216,ST21# |
1 | ||
