ST215G-DWPVF (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )ST21#..E,G

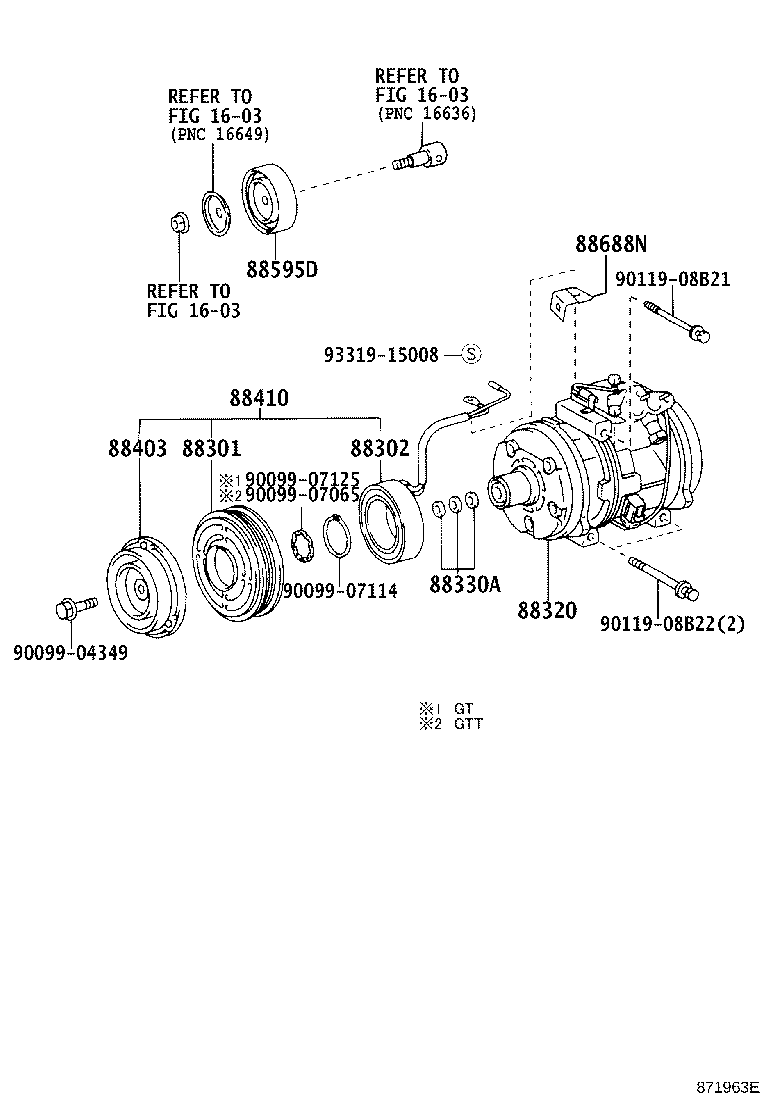

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 88688N 9009904349 9009907065 9009907114 9011908B22 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-2B090

ST21#..E,G

 1
88412-16050

ST21#..GT,GTT

 1
88412-20200

ST21#..E,G

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2A030

AT211,CT216,ST21#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-44020

ST21#..GT

 1
88320-2B350

ST21#..E,G

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

AT211,CT216,ST21#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-30290

AT211,CT216,ST21#

 1
88410 - CLUTCH ASSY, MAGNET
88410-2B190

ST21#..GT,GTT

 1
88410-2B180

ST21#..E,G

 1
88410-2B240

ST21#..E,G

 1
88688N - BRACKET, COOLER
88688-33260

ST21#..E,G

 1
88688-21020

ST21#..GT

 1
Common parts
90099-04349
90099-07065
90099-07114
90119-08B22
93319-15008

(9708- )GT,GTT

Click highlighted areas on diagram

diagram 1603 1603 1603 88301 88302 88320 88330A 88403 88410 88595D 88688N 9009904349 9009907065 9009907114 9009907125 9011908B21 9011908B22 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-2B090

ST21#..E,G

 1
88412-16050

ST21#..GT,GTT

 1
88412-20200

ST21#..E,G

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2A030

AT211,CT216,ST21#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-44020

ST21#..GT

 1
88320-2B350

ST21#..E,G

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

AT211,CT216,ST21#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-30290

AT211,CT216,ST21#

 1
88410 - CLUTCH ASSY, MAGNET
88410-2B190

ST21#..GT,GTT

 1
88410-2B180

ST21#..E,G

 1
88410-2B240

ST21#..E,G

 1
88595D - PULLEY ASSY, IDLE
88440-20120

ST21#..GT,GTT

 1
88688N - BRACKET, COOLER
88688-33260

ST21#..E,G

 1
88688-21020

ST21#..GT

 1
Common parts
90099-04349
90099-07065
90099-07114
90099-07125
90119-08B21
90119-08B22
93319-15008
Linked diagrams
1603
