ST215G-DWPVF (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

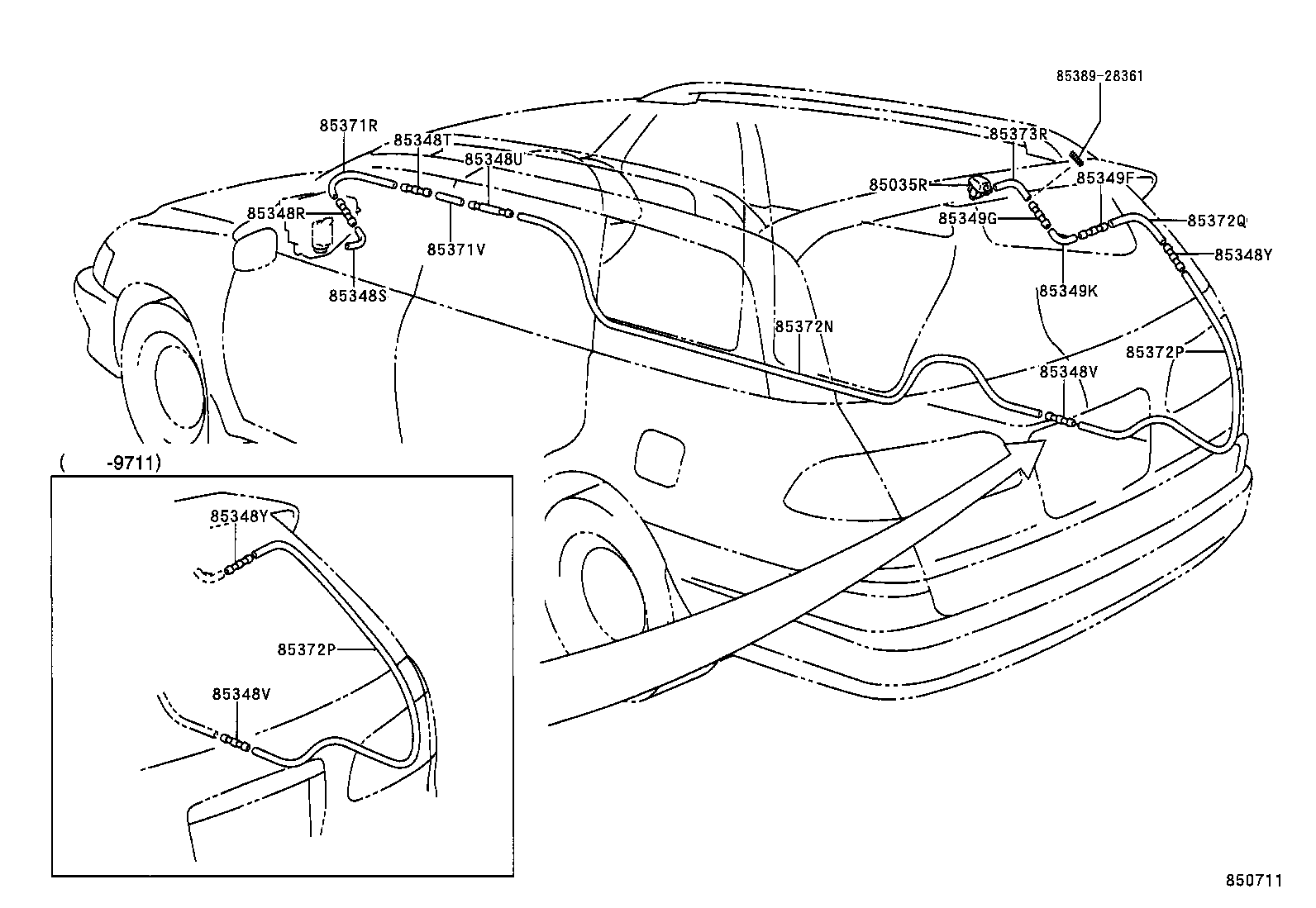

Click highlighted areas on diagram

diagram 85035R 85348R 85348S 85348T 85348U 85348V 85348V 85348Y 85348Y 85349F 85349G 85349K 85371R 85371V 85372N 85372P 85372P 85372Q 85373R 8538928361
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85395-21020

AT211,CT216,ST21#

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

AT211,CT216,ST21#

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-14481

AT211,CT216,ST21#

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-32150

AT211,CT216,ST21#

 1
85349-89122

AT211,CT216,ST21#

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

AT211,CT216,ST21#

 1
85349-32150

AT211,CT216,ST21#

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

ST215..5F..GTT;AT211,CT216,ST21#..E,G,GT

 1
85349-89122

AT211,CT216,ST21#

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

ST215..5F..GTT;AT211,CT216,ST21#..E,G,GT

 1
85349-89122

AT211,CT216,ST21#

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85349-89122

ST215..5F..GTT;AT211,CT216,ST21#..E,G,GT

 1
85349-89122

AT211,CT216,ST21#

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85349-89122

ST215..5F..GTT;AT211,CT216,ST21#..E,G,GT

 1
85349-89122

AT211,CT216,ST21#

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85349-89122

AT211,CT216,ST21#

 1
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-89122

AT211,CT216,ST21#

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85375-33040

AT211,CT216,ST21#

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

AT211,CT216,ST21#

*H,L=650

 1
85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT)
90099-33080

AT211,CT216,ST21#

*H,L=30

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33589

AT211,CT216,ST21#

*H,L=3200

 1
90099-33589

AT211,CT216,ST21#

*H,L=3150

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

AT211,CT216,ST21#

*H,L=1255

 1
90099-33080

AT211,CT216,ST21#

*H,L=100

 1
90099-33080

AT211,CT216,ST21#

*H,L=1370

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

AT211,CT216,ST21#

*H,L=1255

 1
90099-33080

AT211,CT216,ST21#

*H,L=100

 1
90099-33080

AT211,CT216,ST21#

*H,L=1370

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

AT211,CT216,ST21#

*H,L=1255

 1
90099-33080

AT211,CT216,ST21#

*H,L=100

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90446-07001

AT211,CT216,ST21#

*H,L=100

 1
Common parts
85389-28361
