ST215G-DWPVF (1997)

Toyota Caldina

Production Aug 1997 - Sep 2002
Engine 3SGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9912- )G,GT,GTT

Click highlighted areas on diagram

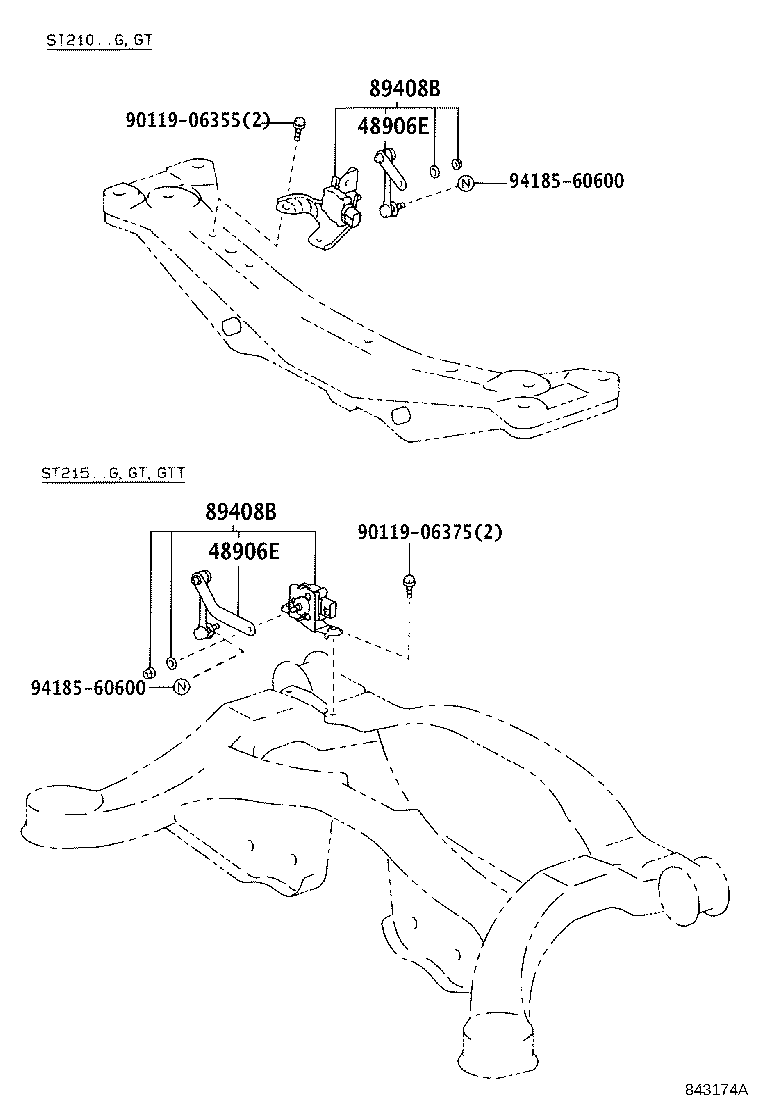

diagram 48906E 48906E 89408B 89408B 9011906355 9011906375 9418560600 9418560600
Part # Description Qty Price
48906E - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR
48906-33020

ST215..G,GT,GTT

 1
48906E - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR
48906-33020

ST215..G,GT,GTT

 1
89408B - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR
89407-33020

ST215..G,GT,GTT

 1
89408B - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR
89407-33020

ST215..G,GT,GTT

 1
Common parts
90119-06355
90119-06375
94185-60600
